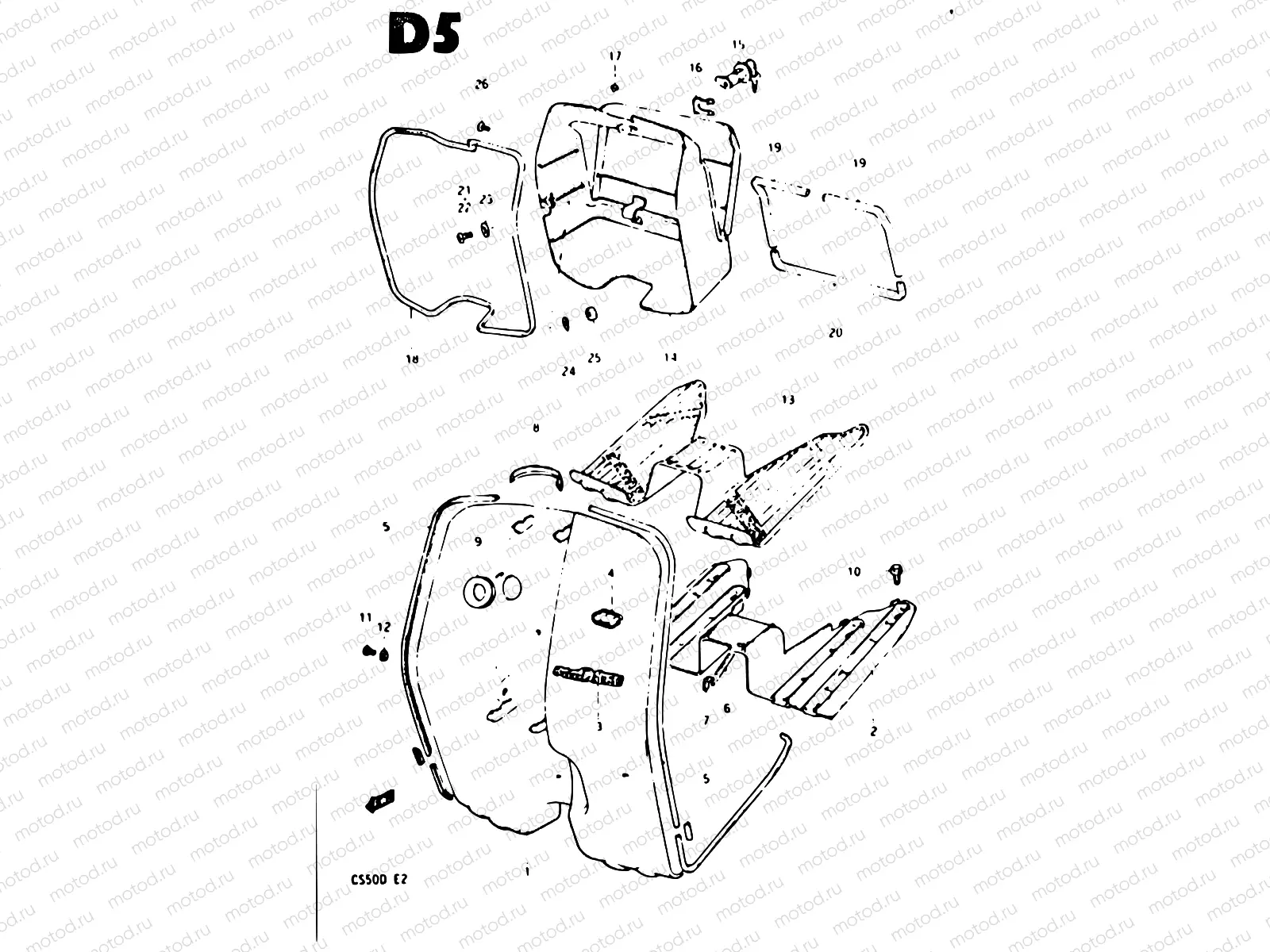

35 - LEG SEALD (CS50GD)

35 - LEG SEALD (CS50GD)

Например: 48111-02110-07P

1

48111-02110-07P

Leg seald, front (red)

1

48111-02110-15B

Leg seald, front (blue)

1

48111-02110-15C

Leg seald, front (green)

1

48111-02110

LEG SHIELD,FR

1

48111-02110-737

Leg seald, front (silver)

1

48111-02110-04Y

Leg seald, front (blue)

2

48121-02110

Leg seald, rear

3

68162-02130

Emblem, no. 2

4

68161-02130

Emblem, no. 1

5

48100-02831

MOUL SET,LEG SHIELD

6

48135-02100

Protector, no. 1

7

48136-02100

Protector, no. 2

8

48137-02110

Cover, front

9

09308-27001

GROMMET

226 ₽/шт

10

01550-0616B

БОЛТ

81 ₽/шт

11

01550-0616B

БОЛТ

81 ₽/шт

12

09160-06066

Шайба

102 ₽/шт

13

43551-02110

Mat, floor

14

92100-02101-15C

Box assy, front (green)

14

92100-02101-189

Box assy, front (white)

14

92100-02101-15B

ox assy, front (blue)

14

92100-02101-737

Box assy, front (silver)

14

92100-02101-04Y

Box assy, front (blue)

14

92100-02101-07P

Box assy, front (red)

15

92130-02110

LOCK,FR BOX

2 229 ₽/шт

16

92116-02100

.plate

17

09321-06036

Cushion,license Plate

162 ₽/шт

18

92114-02100

.moul

19

92117-02100

.rubber, no. 1

20

92118-02100

.rubber, no. 2

21

02142-0620B

Болт

1 060 ₽/шт

22

02142-06167

Винт крестовый 6x16

81 ₽/шт

23

09160-06084

Шайба 6.5X18X1

81 ₽/шт

24

08321-01067

Шайба, стопорная

81 ₽/шт

25

08310-00067

Гайка

81 ₽/шт

26

09125-06025

Болт

1 720 ₽/шт
