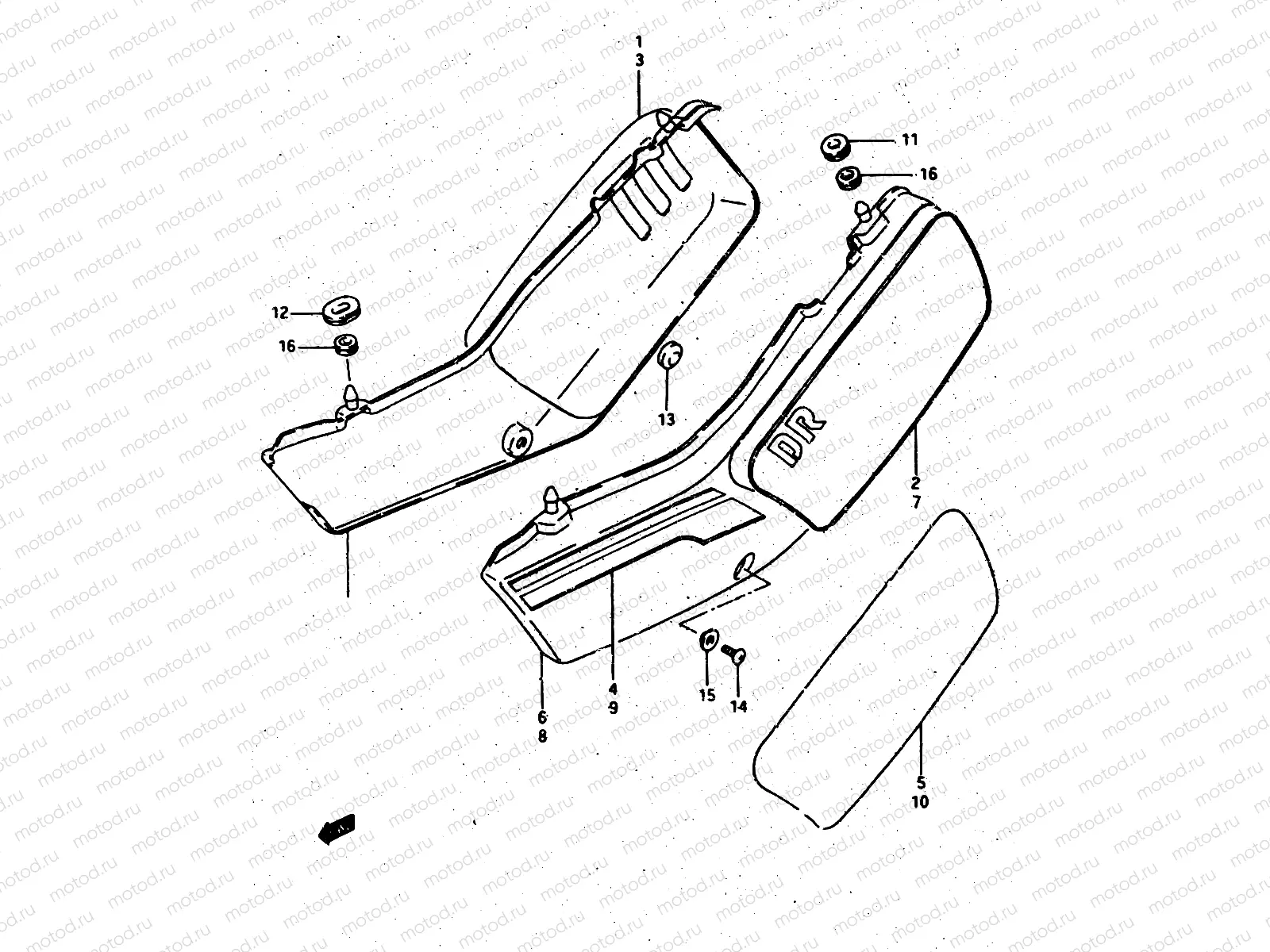

35 - FRAME COVER (DR500SG/SH)

35 - FRAME COVER (DR500SG/SH)
Например: 47111-14A00-13L
3
47111-14A00-13L
Cover,frame,rh
3
47110-15A10-14L
Cover, side rh (white)
4
68130-14A50-7VN
.tape set, side cover rh
4
68130-14A50-9DK
.tape set, side cover rh
4
68130-14A50-9JT
.tape set, side cover rh
5
68132-14A10-765
.tape rear rh (blue)
5
68132-14A10-08L
.tape rear rh (blue)
5
68132-14A10-064
.tape rear rh (white)
8
47211-14A00-13L
8
47210-15A10-14L
Cover, side lh (white)
9
68140-14A50-7VN
.tape set, side cover lh
9
68140-14A50-9DK
.tape set, side cover lh
9
68140-14A50-9JT
.tape set, side cover lh
10
68142-14A10-765
.tape, rear lh (blue)
10
68142-14A10-08L
.tape, rear lh (blue)
10
68142-14A10-064
.tape, rear lh (white)
11
09320-08527
Cushion
1 640 ₽/шт
12
09329-08003
CUSHION
2 460 ₽/шт
13
09321-10018
САЙЛЕНТБЛОК
238 ₽/шт
14
02142-06127
Винт 6X12
81 ₽/шт
15
09169-06041
Шайба
85 ₽/шт
16
47161-14A00
CUSHION,SIDE COVER BOSS
141 ₽/шт
