Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI TL 1000 SUZUKI TL1000R K1 SUZUKI 35 - FOOTREST

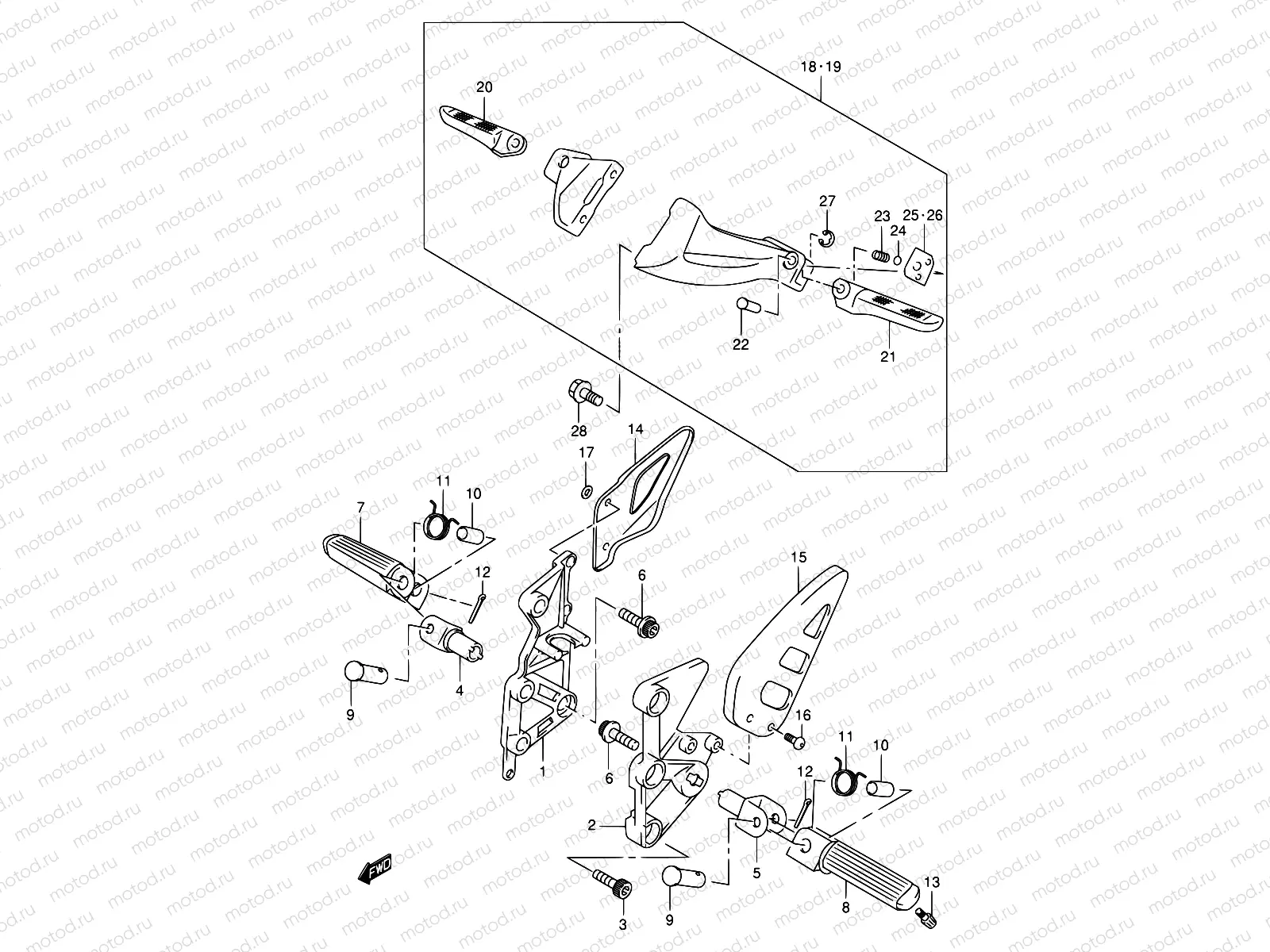

35 - FOOTREST

35 - FOOTREST

Например: 43511-02F00

1

43511-02F00

BRACKET,FR FOOTREST,R

10 322 ₽/шт

2

43521-02F00

BRACKET,FR FOOTREST,L

9 619 ₽/шт

3

07130-0820B

Болт

2 030 ₽/шт

4

43530-17E01

HOLDER,FOOTREST,R

3 734 ₽/шт

5

43540-17E00

HOLDER,FOOTREST,L

3 734 ₽/шт

6

09106-10064

Болт крепёжный

194 ₽/шт

7

43510-02F11

BAR,FR FOOTREST,R

4 223 ₽/шт

8

43520-02F11

BAR,FR FOOTREST,L

9 286 ₽/шт

9

09200-08057

PIN

1 720 ₽/шт

10

09180-08149

Прокладка

258 ₽/шт

11

09448-18022

Пружина

211 ₽/шт

12

04111-2515A

Стопор

82 ₽/шт

13

43576-07D01

БОЛТ

1 066 ₽/шт

14

43570-02F01

GUARD,FR FOOTREST,R

9 529 ₽/шт

15

43580-02F01

GUARD,FR FOOTREST,L

8 640 ₽/шт

16

09139-05033

Болт

113 ₽/шт

17

09160-06129

Шайба,6.5X16X1

102 ₽/шт

18

43600-02FA0

Repose pieds (PILLION RH)

19

43700-02FA0

Repose pieds (PILLION LH)

20

43611-33E11

BAR,PILLION FOOTREST,R

2 913 ₽/шт

21

43621-33E11

BAR,PILLION FOOTREST,L

2 913 ₽/шт

22

87259-85510

PIN

328 ₽/шт

23

09440-05005

Пружина

113 ₽/шт

24

06111-07004

Шарик-защёлка №1

81 ₽/шт

25

43816-33E21

PLATE,PILLION FOOT,R

454 ₽/шт

26

43826-33E22

PLATE,PILLION FOOT,L

454 ₽/шт

27

08332-1104B

СТОПОРНОЕ КОЛЬЦО

282 ₽/шт

28

01550-0816B

Болт крепёжный

97 ₽/шт
