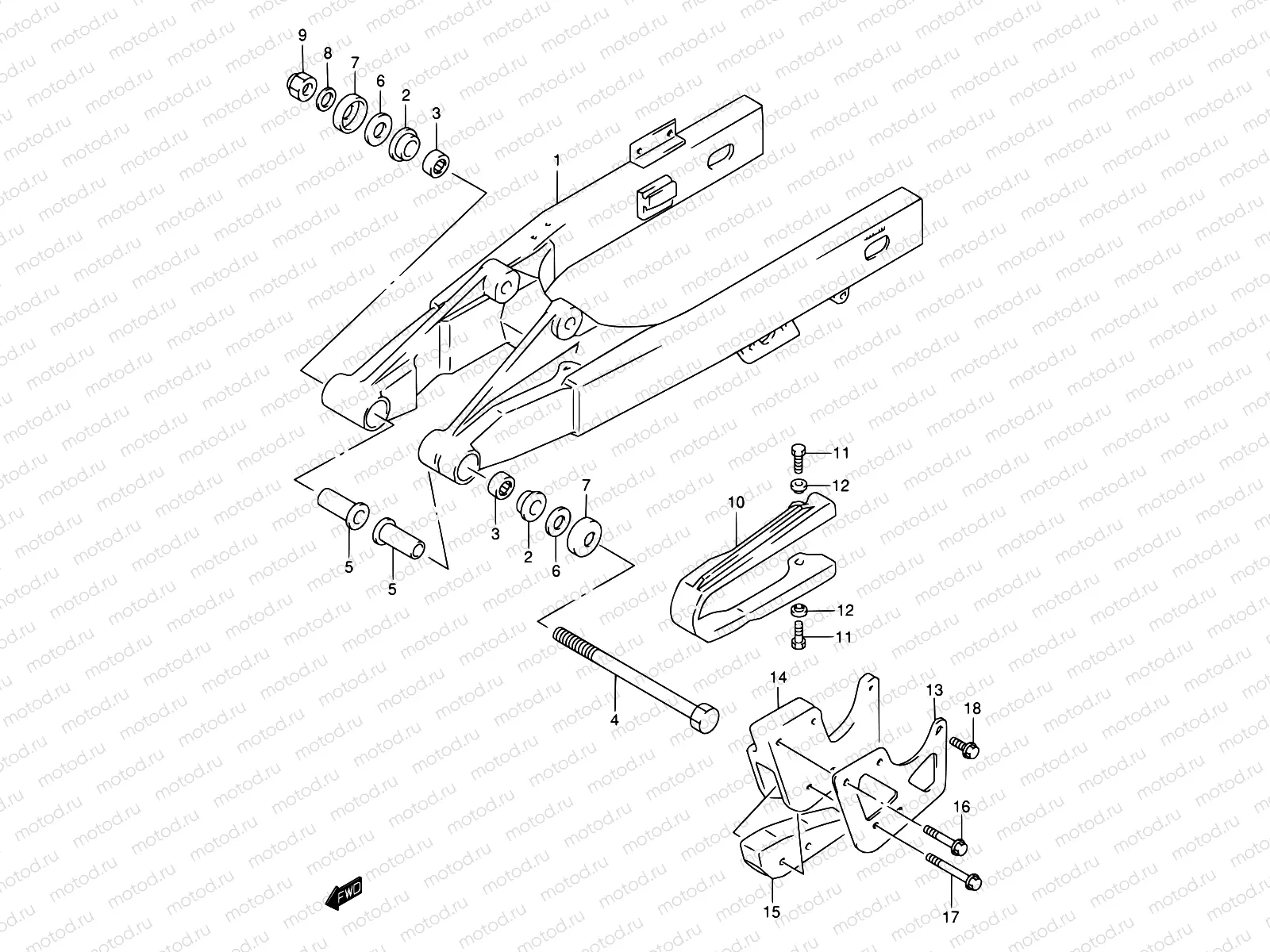

34A - REAR SWINGING ARM (MODEL K3)

34A - REAR SWINGING ARM (MODEL K3)

Например: 61000-03B30

1

61000-03B30

Swingingarm ass

1

61000-03B60

Swingingarm ass

2

61261-02B00

Втулка

1 150 ₽/шт

3

09263-17058

Bearing

1 098 ₽/шт

4

61211-02B40

SHAFT,RR SWINGINGARM PIVOT

1 208 ₽/шт

5

61251-02B40

SPACER,RR SWGARM PIVOT

1 705 ₽/шт

6

08211-12282

WASHER

1 370 ₽/шт

7

61262-03B01

Cover Swgarm Pivot

594 ₽/шт

8

08322-0112B

Шайба

85 ₽/шт

9

08319-2112A

Гайка

211 ₽/шт

10

61273-02B20

UFFER,CHAIN TOUCH DEFENSE

2 125 ₽/шт

11

09103-06234

Болт цепи

1 720 ₽/шт

12

09169-06057

Шайба

215 ₽/шт

13

61342-02B40

PLATE,GUIDE CHAIN OUTER

1 760 ₽/шт

14

61343-02B40

Направляющая chain

4 792 ₽/шт

15

61348-02B20

DEFENSE,CHAIN GUIDE

2 115 ₽/шт

16

09103-06251

Болт

1 250 ₽/шт

17

09103-06241

Болт нижней опоры

1 600 ₽/шт

18

09103-06234

Болт цепи

1 720 ₽/шт
