Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX-R 1100 SUZUKI GSX-R1100 J SUZUKI 34A - FUEL TANK (MODEL J)

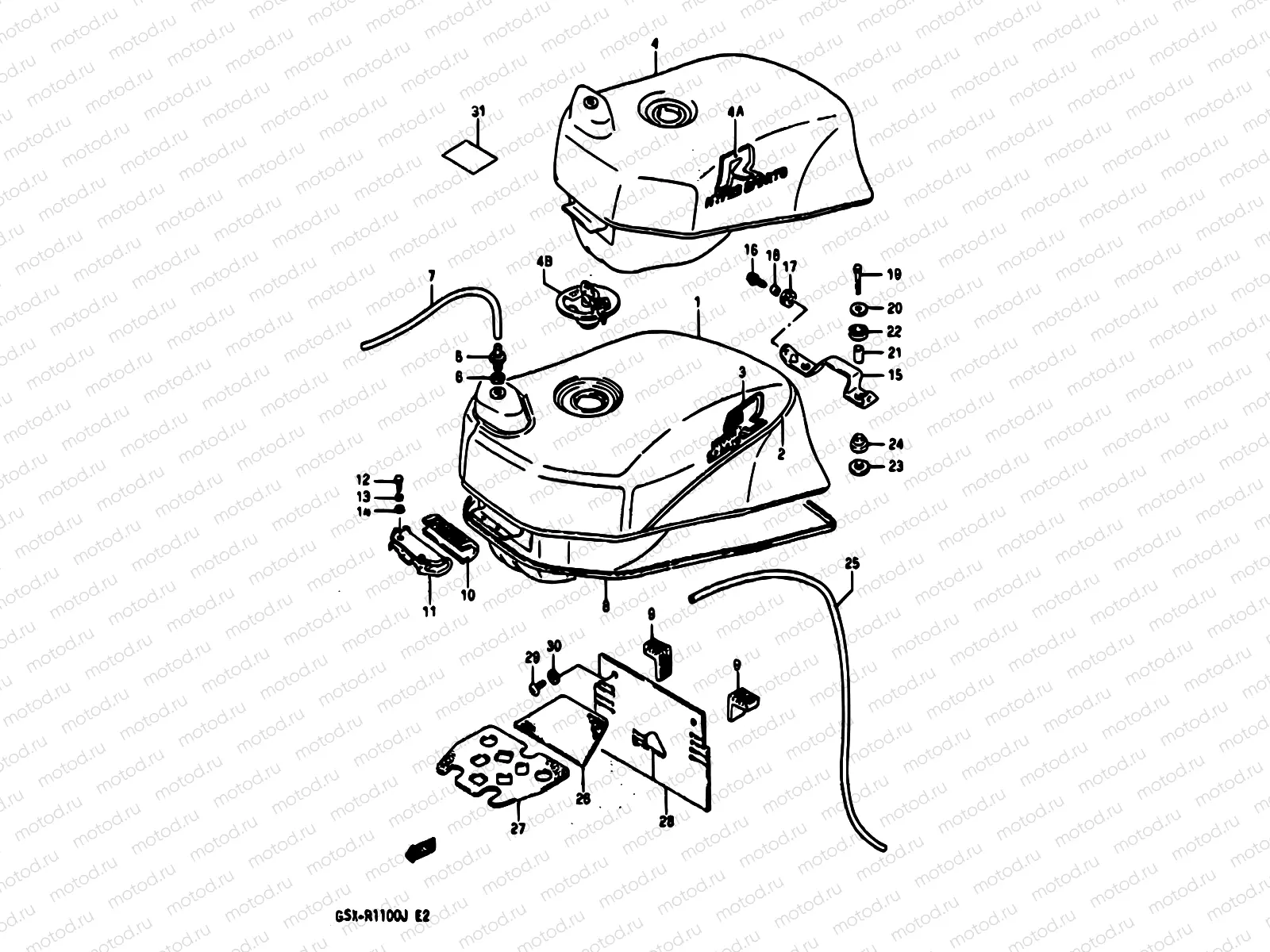

34A - FUEL TANK (MODEL J)

34A - FUEL TANK (MODEL J)

Например: 44110-06BV0-13L

1

44110-06BV0-13L

2

68115-06B00-22P

.tape set,fuel tank

2

68115-06B00-33N

.tape set,fuel tank

3

68111-06B00-2GK

EMBLEM,FUEL TANK

1 658 ₽/шт

3

68111-06B00-2GS

EMBLEM,FUEL TANK

1 658 ₽/шт

4

44110-06B21-13L

Fuel tank

4

44100-27B30-13Z

Tank assy,fuel (black)

4

68111-27B10-39B

.emblem (gold)

4

44200-20841

Cap assy

5

44240-06B10

PLUG,FUEL TANK BREATHER

2 678 ₽/шт

6

09168-12012

Прокладка (12.5X20X2.5)

119 ₽/шт

7

09352-50005-600

ШЛАНГ

436 ₽/шт

8

68241-04X50-00B

MOLDING

1 696 ₽/шт

9

44545-27A10

Cushion,fuel ta

10

44511-27A10

Cushion

11

44521-27A00

Bracket,f.tank

12

09118-06086

Болт 6X25

1 680 ₽/шт

13

08321-0106A

Шайба

81 ₽/шт

14

08322-0106A

Шайба

81 ₽/шт

15

45211-06B00

racket,seat support

16

09118-06087-XC0

BOLT.6X20

17

09320-08510

Втулка резиновая (8.5X20X8)

194 ₽/шт

18

09180-06038

ВТУЛКА

1 020 ₽/шт

19

01500-0635B

Болт

81 ₽/шт

20

09160-06501

Шайба

102 ₽/шт

21

09180-06271

Кольцо/шайба

172 ₽/шт

22

09320-14017

CUSHION

114 ₽/шт

23

09160-12088

WASHER(12.5X24X1.6)

1 560 ₽/шт

24

09320-10038

CUSHION

115 ₽/шт

25

09352-50005-600

ШЛАНГ

436 ₽/шт

26

47166-03D00

Heat shield,fra

27

44192-27A01

28

44194-06B00

Heat shield,rear

29

02142-0620B

Болт

1 060 ₽/шт

30

09160-06084

Шайба 6.5X18X1

81 ₽/шт

31

86932-73060

Ярлык топлива

162 ₽/шт
