Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI SV 650 SUZUKI SV650S Y SUZUKI (VIN: JS1AV111, JS1AV121) 34 - FUEL TANK (MODEL X/Y)

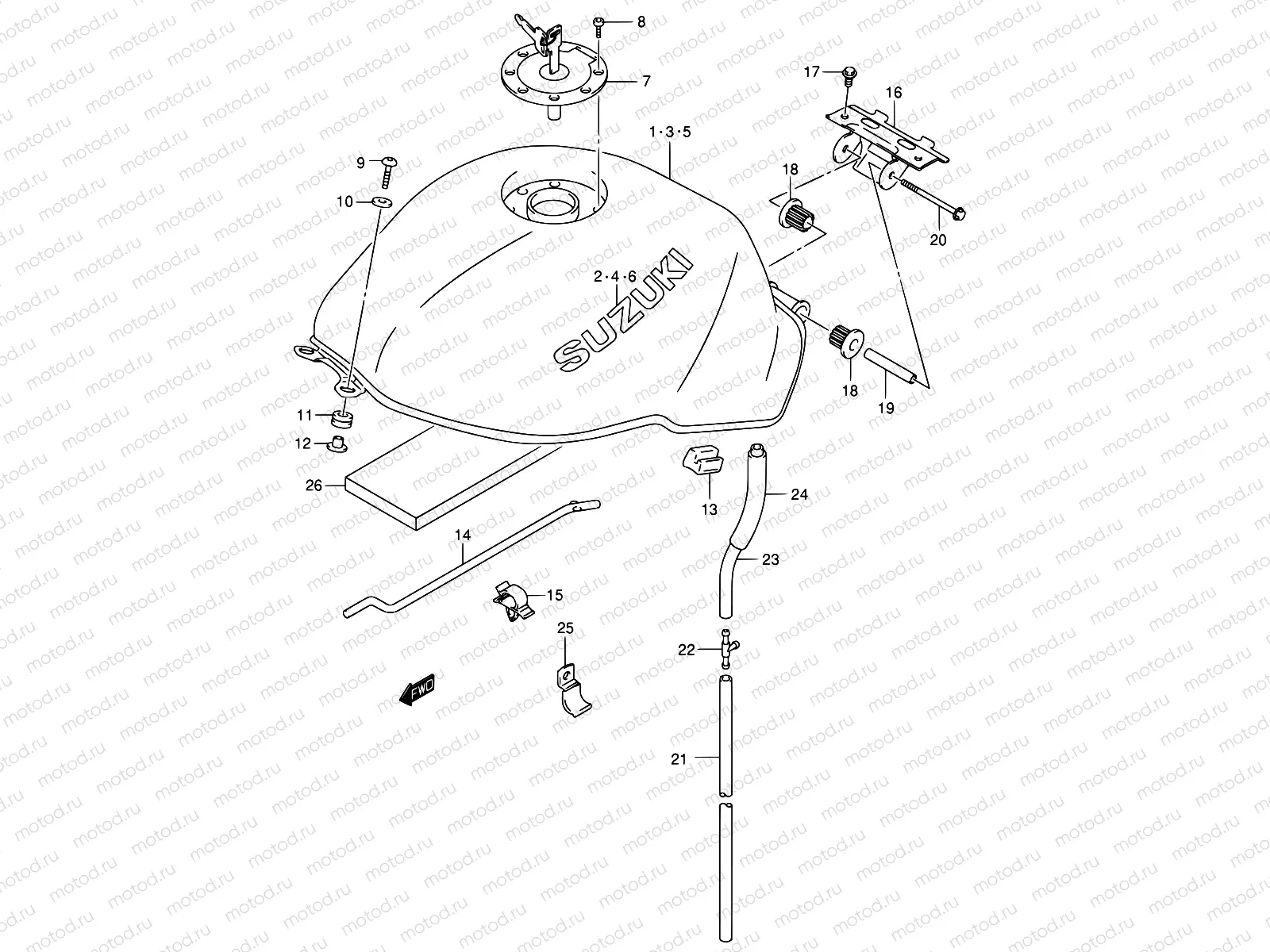

34 - FUEL TANK (MODEL X/Y)

34 - FUEL TANK (MODEL X/Y)

Например: 44100-19F60-Y7L

3

44100-19F60-Y7L

Tank assy, fuel

3

44100-19F60-Y7M

Tank assy,fuel

3

44100-19F60-Y9F

Tank assy,fuel

3

44100-19F60-YC2

Tank assy,fuel

4

68111-12C30-1ZY

EMBLEM

1 447 ₽/шт

4

68111-12C30-20G

EMBLEM

1 713 ₽/шт

5

44100-19F60-Y7L

Tank assy, fuel

5

44100-19F60-Y7M

Tank assy,fuel

5

44100-19F60-Y9F

Tank assy,fuel

5

44100-19F60-YC2

Tank assy,fuel

6

68111-42E20-1ZY

MBLEM

1 662 ₽/шт

6

68111-42E20-20G

Эмблема

1 662 ₽/шт

7

44200-33871

Cap set,fuel ta

8

09106-05017

БОЛТ

113 ₽/шт

9

09139-06029

Болт

178 ₽/шт

10

09160-06054

Шайба

129 ₽/шт

11

44511-19F01

Cushion,fuel Tank Fr

4 280 ₽/шт

12

44512-19F00

Шайба подшипник

275 ₽/шт

13

44559-19F01

Cushion,tank

14

44574-33E01

STAY,FUEL TANK

3 315 ₽/шт

15

09403-05310

CLAMP

2 030 ₽/шт

16

44550-19F10

BRACKET,FUEL TANK RR

5 200 ₽/шт

17

01550-0816B

Болт крепёжный

97 ₽/шт

18

44541-02F01

Damper (Fuel tank)

19

44561-19F00

SPACER,FUEL TANK RR

845 ₽/шт

20

01550-0885B

Болт

178 ₽/шт

21

09352-70104-600

Hose(7X10.2X600)

561 ₽/шт

22

09367-08004

Соединение 3-х стороннее

238 ₽/шт

23

09352-70104-600

Hose(7X10.2X600)

561 ₽/шт

24

09351-14152-600

PROTECTOR(14.5X15.5X600)

211 ₽/шт

25

44339-19F00

CLAMP,DRAIN HOSE

297 ₽/шт

26

44194-19F00

SHIELD,FUEL TANK FR

3 108 ₽/шт
