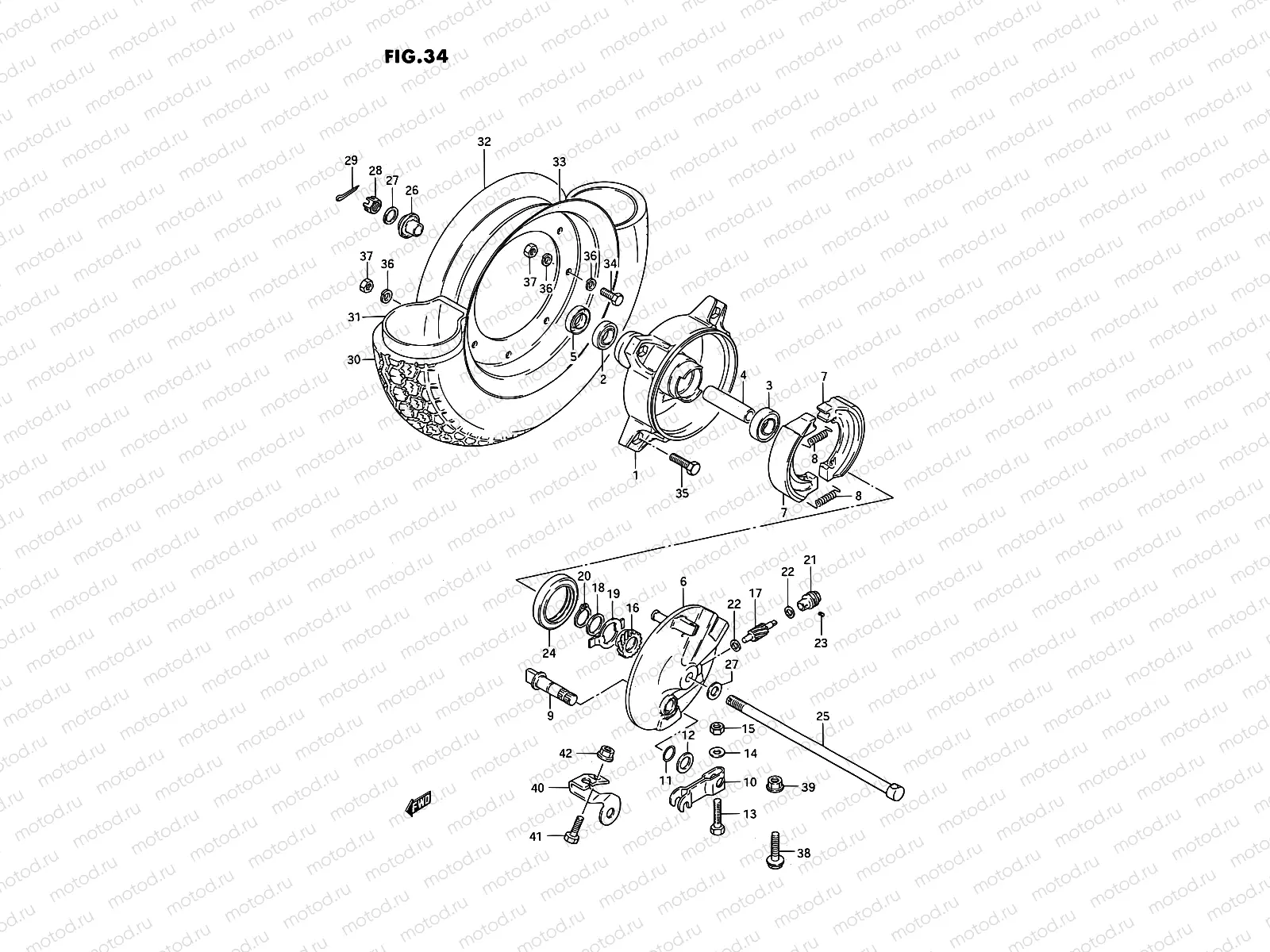

34 - FRONT WHEEL

34 - FRONT WHEEL
Например: 54110-17200
1
54110-17200
Hub, front wheel
2
08113-62000
Подшипник B1 10X30X09
845 ₽/шт
3
08143-63007
Roulement (LH)
4
09180-10058
SPACER(10.2X16X66)
5 710 ₽/шт
5
09284-15001
SEAL,OIL(15X31X5)
239 ₽/шт
6
54210-17200
Panel, front brake anchor
6
54210-17202
Panel,front bra
6
54210-17230
Panel, front brake anchor
6
54210-17231
Panel, front brake anchor
7
54401-43810
SHOE SET,BRAKE
3 695 ₽/шт
8
09443-07001
SPRING(L:34)
170 ₽/шт
8
09443-07025
Пружина
1 170 ₽/шт
9
54441-26503
CAM,FR BRAKE
1 036 ₽/шт
10
54451-17200
Lever,fr brake
10
54450-17220
Lever, cam
11
09280-14011
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ ПОМПЫ МАСЛЯНОЙ, РЕЗИНА !
226 ₽/шт
12
09160-14055
Шайба
1 450 ₽/шт
13
09100-06078
BOLT(6X33)
150 ₽/шт
14
08322-0106A
Шайба
81 ₽/шт
15
08310-00067
Гайка
81 ₽/шт
16
54611-17201
GEAR,SPEEDOMETER(NT:18)
16 031 ₽/шт
17
54621-17201
Pinion (nt:11)
18
09160-18002
WASHER(18.5X24X1)
1 170 ₽/шт
19
54661-07000
DRIVER,SPEEDOMETER GEAR
227 ₽/шт
20
08331-3118A
Крепёж
97 ₽/шт
21
54632-01001
BUSH,METER GEAR OUTER
2 295 ₽/шт
22
09160-05001-A05
Шайба,5.1X9X0.4
119 ₽/шт
23
09134-03101-A05
SCREW(3X4.3)
900 ₽/шт
24
09283-43004
Сальник
700 ₽/шт
25
54711-17200
Axle, front
26
54740-26101
SPACER,FR AXLE,R
978 ₽/шт
27
08322-0110B
Шайба
85 ₽/шт
28
08314-3110A
Гайка
1 170 ₽/шт
29
04111-2020A
Штифт
81 ₽/шт
30
55100-17201
Tire, front (3.50-8) irc
31
55200-17200
Tube, inner
32
55312-17200-126
Rim,wheel,r,8x2
33
55313-17200-126
Rim,wheel,l,8x2
34
01500-0816B
Болт
85 ₽/шт
35
01500-08257
Болт
102 ₽/шт
36
08321-01087
Пластина замка
81 ₽/шт
37
08310-00087
Гайка 8MM
81 ₽/шт
40
54213-17200
Stopper, brake cable
41
01500-0625B
Болт
1 330 ₽/шт
42
08319-31067
Гайка
153 ₽/шт
