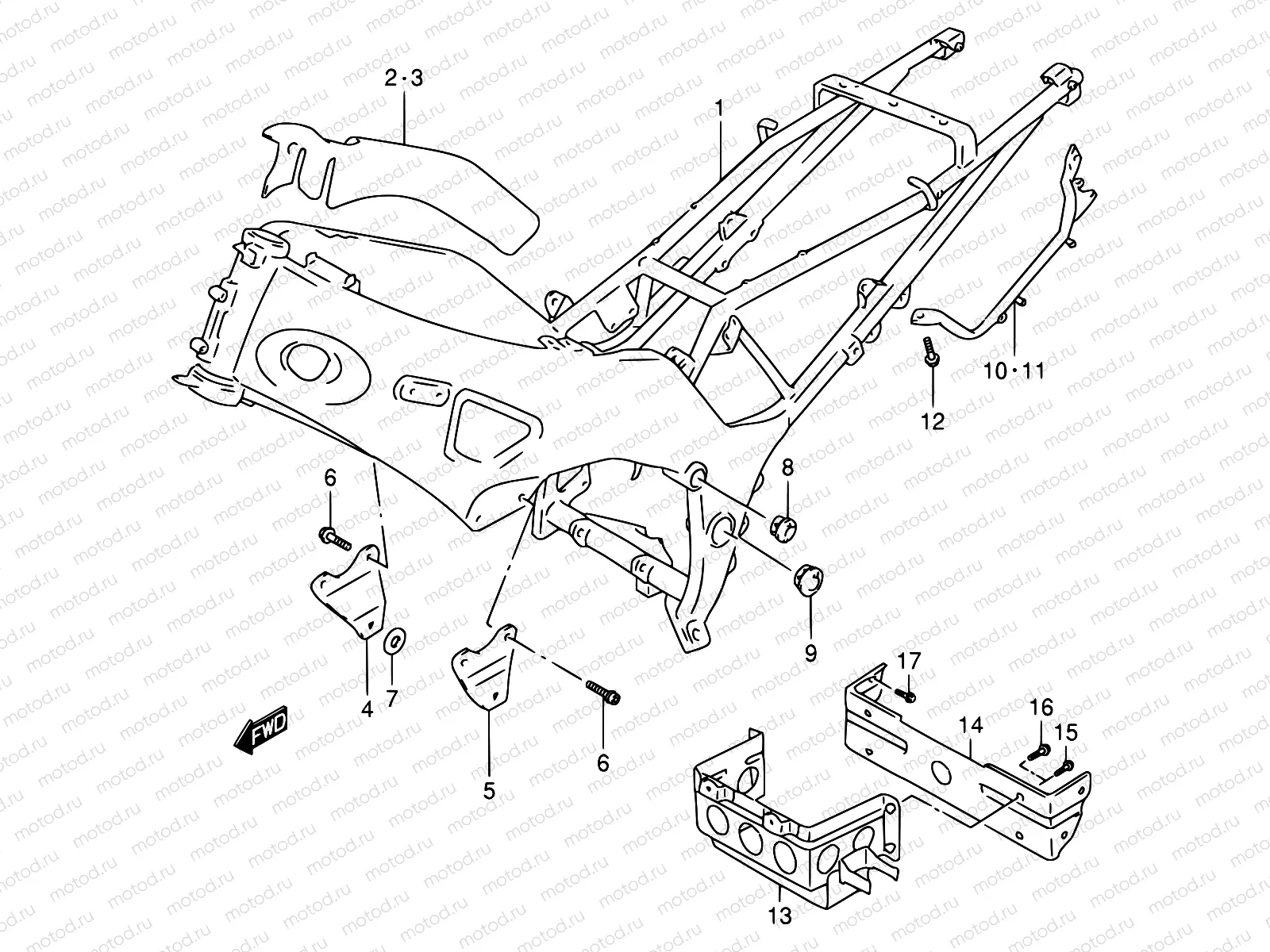

34 - FRAME

34 - FRAME

Например: 41100-31E00-19A

1

41100-31E00-19A

Frame (red)

1

41100-31E00-33J

Frame (black)

1

41100-31E21-19A

1

41100-31E20-0FP

rame (silver)

1

41100-31E20-0FP

rame (silver)

2

41891-21E02

Shield,frame

3

41892-21E02

Shield,heat

4

41911-31E01

Plate,eng.mnt.r

5

41921-31E01

Plate,eng.mnt.l

6

07120-1030B

Болт

2 620 ₽/шт

7

09160-10070

WASHER,10.5X38X1.6

8

43585-47D01

CAP,FRAME BOSS,L

719 ₽/шт

9

43585-21E00

CAP,FRAME PIVOT

272 ₽/шт

10

43970-31E00

Grip, rear rh

10

43970-31E10

Grip, rear rh

11

43980-31E00

Grip comp,rr.l.

11

43980-31E10

Grip, rear lh

12

01550-0812B

Болт

97 ₽/шт

13

41540-21E11

Holder, battery

14

41561-21E00

Bracket

16

01550-0612B

БОЛТ

81 ₽/шт

17

01550-0616B

БОЛТ

81 ₽/шт
