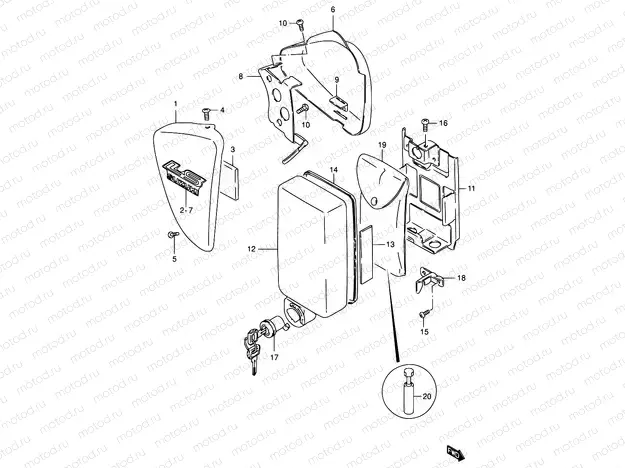

33D - FRAME COVER (MODEL K4)

33D - FRAME COVER (MODEL K4)

Например: 47100-24B40-YV2

1

47100-24B40-YV2

Cover, frame rh (silver)

1

47100-24B40-YAT

Cover, frame rh (purple)

2

68131-24B40-AES

.emblem

2

68131-24B40-AET

.emblem

3

13719-84150

РЕЗИНКА НА ПЕДАЛЬ ТО

172 ₽/шт

4

02142-0510A

Болт

82 ₽/шт

5

02112-7516A

Болт

102 ₽/шт

6

47200-24B40-YV2

Cover, frame lh (silver)

6

47200-24B40-YAT

Cover, frame lh (purple)

7

68131-24B40-AES

.emblem

7

68131-24B40-AET

.emblem

8

47180-24B03

RACKET,FRAME COVER,L

1 241 ₽/шт

9

47117-45000

Крышка рамы

187 ₽/шт

10

02122-0612B

Болт

82 ₽/шт

11

47430-24B01

HOLDER,TOOL

1 309 ₽/шт

12

47440-24B20

COVER,TOOL HOLDER

12 436 ₽/шт

13

33652-07D00

КОЖУХ

299 ₽/шт

14

47445-24B00

MOLDING

238 ₽/шт

15

02142-0510A

Болт

82 ₽/шт

16

02112-0610B

Винт

81 ₽/шт

17

95700-24871

LOCK SET,TOOL HOLDER

5 143 ₽/шт

18

47434-24B00

Плата замка

238 ₽/шт

19

09800-21069

Tool Assy

4 223 ₽/шт

20

96220-24B00

GAUGE ASSY,TENSION

3 715 ₽/шт
