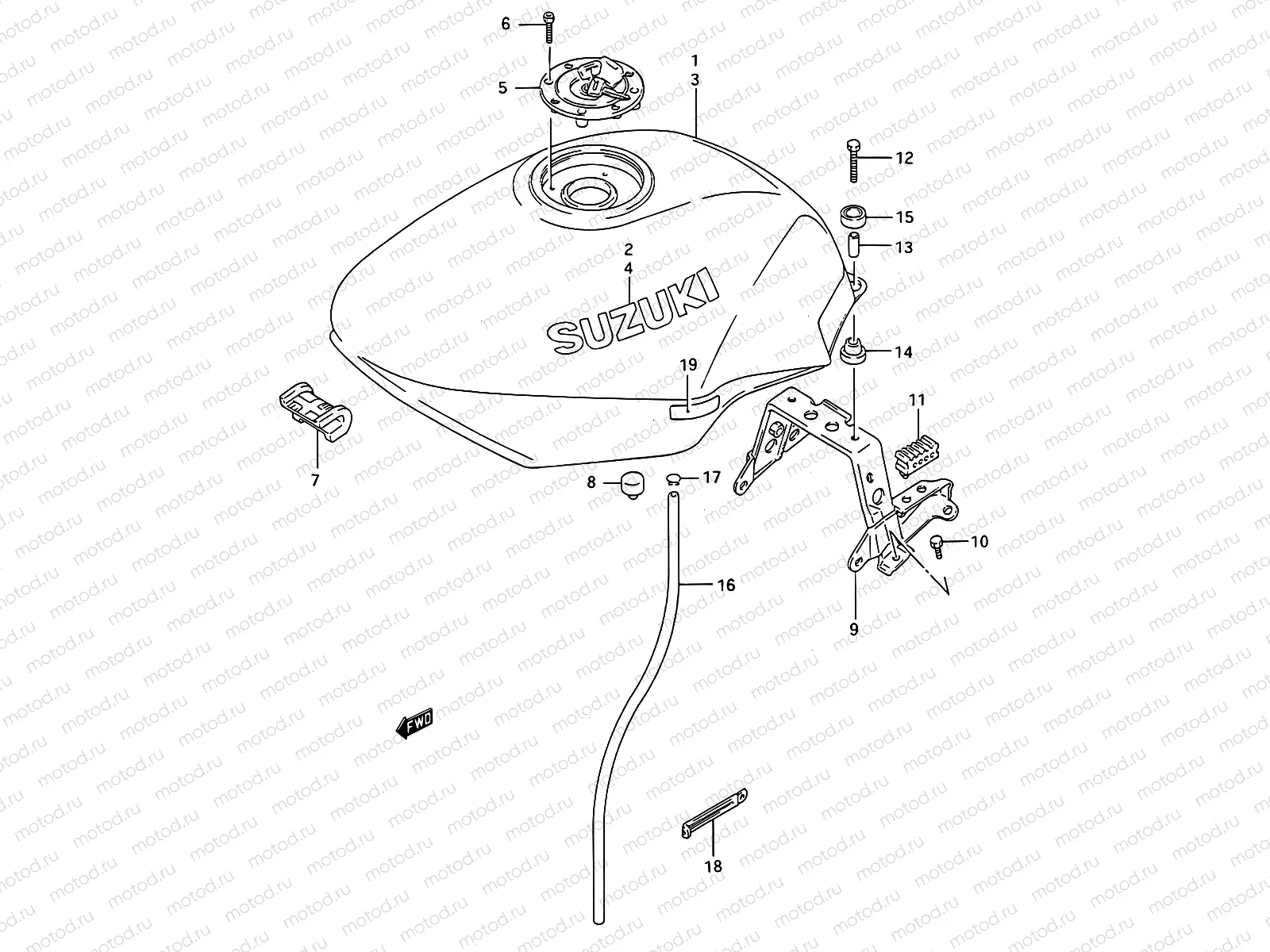

33C - FUEL TANK (MODEL P/R/S/T)

33C - FUEL TANK (MODEL P/R/S/T)
Например: 44100-43C30-1MW
1
44100-43C30-1MW
Tank assy, fuel (red)
1
44100-43C30-36X
Tank assy, fuel (black)
2
68111-12C30-13L
EMBLEM
2 373 ₽/шт
2
68111-12C00-1AP
.emblem (purple)
5
44201-01833
Fuel cap
6
09106-05017
БОЛТ
113 ₽/шт
7
44511-19C00
ushion
8
09321-10011
САЙЛЕНТБЛОК
162 ₽/шт
9
44550-19C00
Bracket rear
10
01570-0620A
Болт
85 ₽/шт
11
45149-31300
CUSHION,SEAT(40X20X15)
510 ₽/шт
12
09116-06172
Болт
153 ₽/шт
13
09180-06271
Кольцо/шайба
172 ₽/шт
14
09320-10038
CUSHION
115 ₽/шт
15
09320-14017
CUSHION
114 ₽/шт
16
44423-19C01
Fuel hose (Fuel tank)
17
09401-08401
Хомут
113 ₽/шт
18
09404-08420
Струбцина L:137
221 ₽/шт
19
44283-19C00
Protector, rh
19
44293-19C00
Protector, lh
