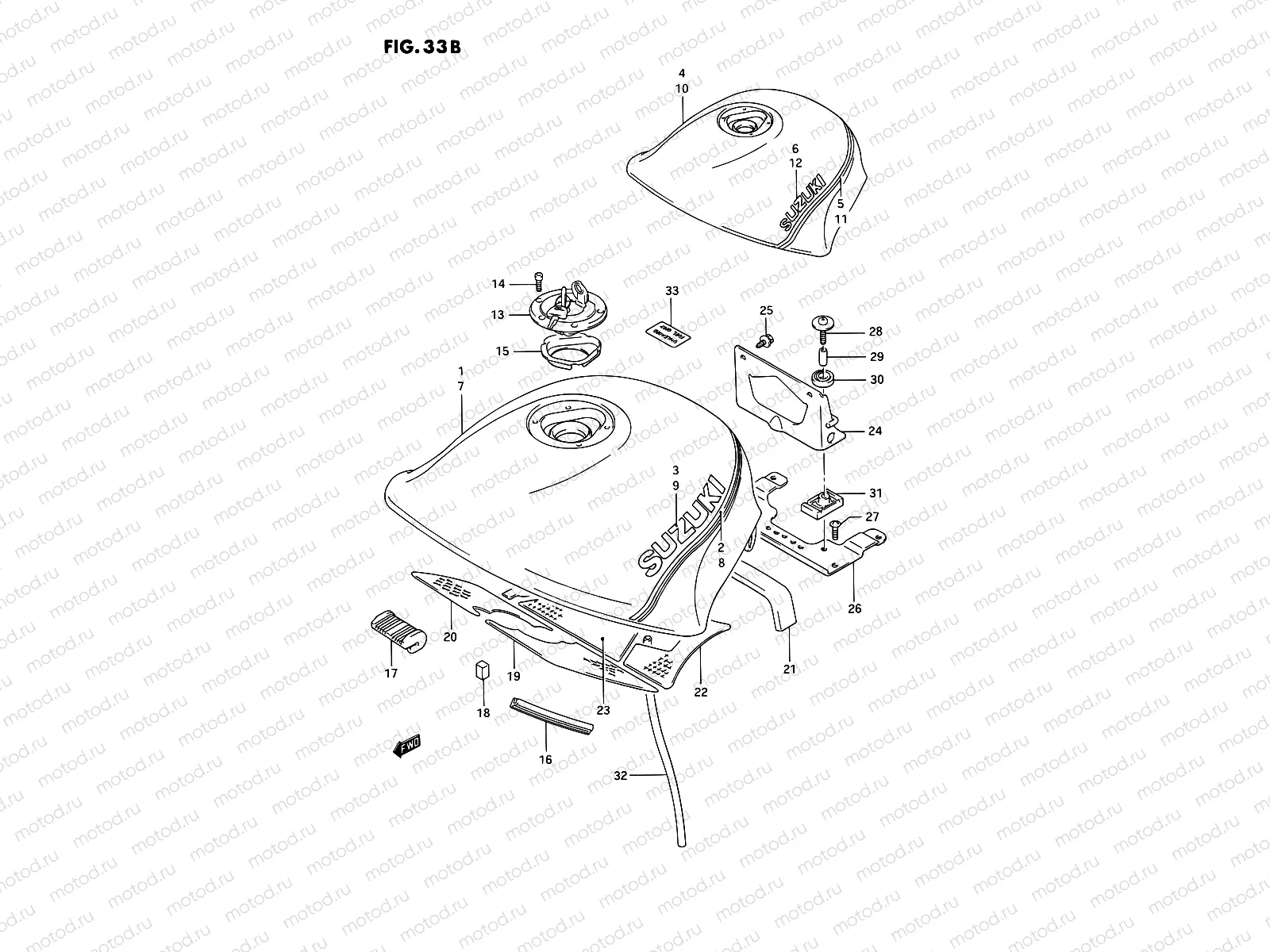

33B - FUEL TANK (MODEL L/M)

33B - FUEL TANK (MODEL L/M)
Например: 44110-48B61-YD8
1
44110-48B61-YD8
Fuel tank (Red)
4
44100-49C40-3BF
Tank assy, fuel
7
44110-48B61-YD8
Fuel tank (Red)
8
68115-48B50-F07
.tape, fuel tank
9
68111-48B00-24G
.emblem, (gold)
10
44110-48B61-YD8
Fuel tank (Red)
11
68115-48B80-E98
.tape, fuel tank
12
68111-12C30-13L
EMBLEM
2 373 ₽/шт
13
44200-48810
Cap set, fuel tank
14
09106-05016
Vis
15
44262-48B00
Cover, inlet
16
68241-04X50-300
MOLDING
262 ₽/шт
17
44511-48B10
Cushion,fueltan
18
44545-48B10
CUSHION,FUEL TANK SIDE
833 ₽/шт
19
44196-48B00
Heatshield,fr.l
20
44197-48B00
Heat shield, front rh
21
44193-48B01
Heat shield, lower rear
22
44198-48B00
HEATSHIELD,FUEL TANK RR,L
1 486 ₽/шт
23
44199-48B00
Heat shield, rear rh
24
44550-48B10
racket, rear upper
25
09138-06038
Bolt
26
44570-48B00
RACKET,FUEL TANK RR LOW
1 568 ₽/шт
27
02142-0620B
Болт
1 060 ₽/шт
28
09136-06106
Bolt
29
09180-06273
Кольцо/шайба
2 460 ₽/шт
30
09320-16010
Cushion
31
09320-09033
Cushion
32
09352-70104-00B
Hose(7X10.2X2000)
1 406 ₽/шт
33
86932-73060
Ярлык топлива
162 ₽/шт
