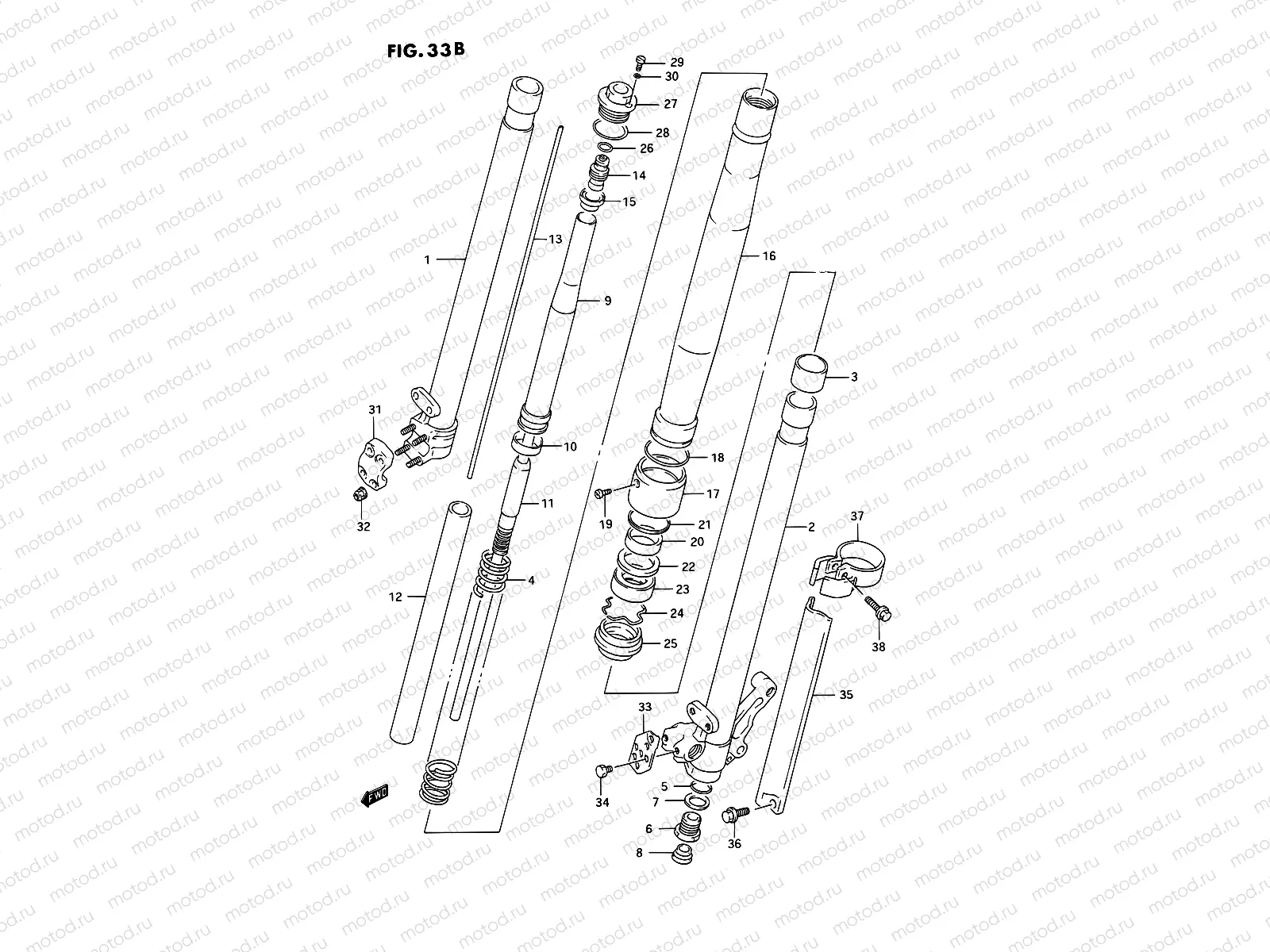

33B - FRONT DAMPER (MODEL M)

33B - FRONT DAMPER (MODEL M)
Например: 51103-05D60
0
51103-05D60
amper assy, rh
0
51104-05D60
amper assy, lh
1
51110-27C40
.tube, inner rh
2
51120-27C41
3
51121-27C40
Bush ,slide
4
51171-27C40
Spring, main
5
51175-03B30
O RING
301 ₽/шт
6
51170-05D60
.bolt, center
7
51148-27C40
Прокладка
399 ₽/шт
8
51189-08D00
CAP
618 ₽/шт
9
51175-27C40
Spacer,spring
10
51176-27C40
Ring,piston
11
51190-05D60
.rod assy, piston
12
51146-27C40
..cylinder
13
51191-27C40
..rod, push
14
51180-27C40
..adjuster, spring
15
51355-27C41
Seat,spr.stop.
16
51130-27C40
.tube, outer
17
51135-27C40
.case, oil seal
18
51131-27C40
O RING,CASE
563 ₽/шт
19
51134-27C40
.screw
20
51167-27C40
Bush ,guide
21
51133-27C40
.ring, stopper upper
22
51158-27C40
Кольцо/шайба
489 ₽/шт
23
51153-28E30
Сальник
2 268 ₽/шт
24
51156-27C40
RING,OIL SEAL STOPPER
204 ₽/шт
25
51173-28E40
Пыльник
2 581 ₽/шт
26
09280-12012
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
391 ₽/шт
27
51351-27C40
BOLT,FORK
7 976 ₽/шт
28
51117-27C40
Кольцо уплотнительное
328 ₽/шт
29
51357-27C40
BOLT,PLUG
528 ₽/шт
30
51117-19C10
Кольцо уплотнительное
210 ₽/шт
31
51132-27C40
ase,oil seal
32
08319-31067
Гайка
153 ₽/шт
33
59248-05D60
.guide, hose lh
34
01500-05087
Болт
1 210 ₽/шт
35
51501-05D60
PROTECTOR,FORK,R
35
51511-27C40
PROTECTOR,FORK,L
5 279 ₽/шт
36
58627-27C40
Болт
231 ₽/шт
37
51201-27C40
Guide,protector
37
51211-27C40
GELEIDER
38
58628-27C40
BOLT,PROTECTOR GUIDE
274 ₽/шт
