Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VZR 1800 Intruder M1800R / Boulevard M109R SUZUKI VZR1800NUF K9 Intruder M1800R / Boulevard M109R SUZUKI 33A - TURNSIGNAL LAMP (VZR1800K8/K9/L0/U2K8/UFK9/UFL0/NK8/NK9/NU2K8/NUFK9)

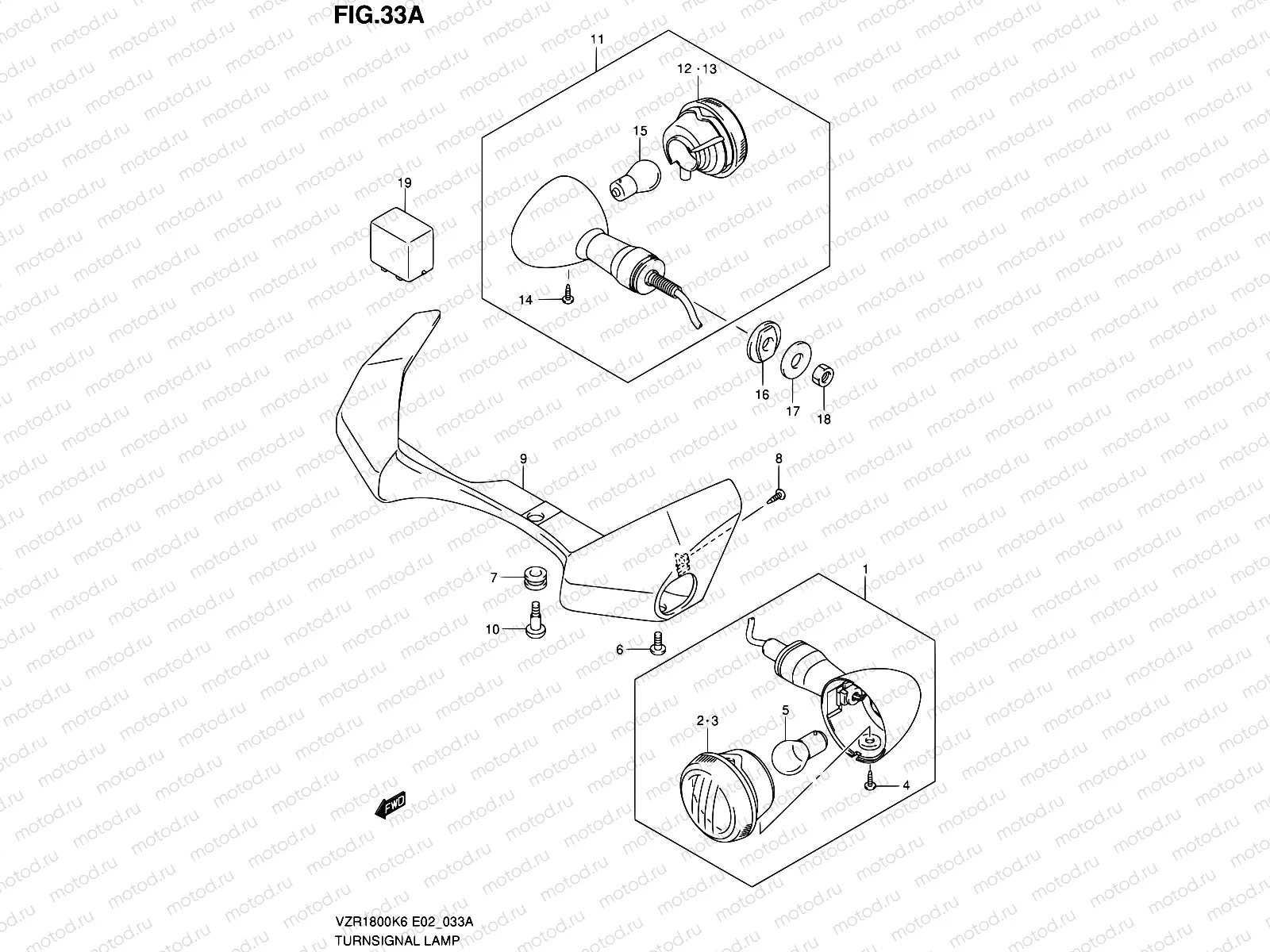

33A - TURNSIGNAL LAMP (VZR1800K8/K9/L0/U2K8/UFK9/UFL0/NK8/NK9/NU2K8/NUFK9)

33A - TURNSIGNAL LAMP (VZR1800K8/K9/L0/U2K8/UFK9/UFL0/NK8/NK9/NU2K8/NUFK9)

Например: 35601-38AE0

1

35601-38AE0

Поворотник передний, правый

7 351 ₽/шт

1

35602-38AE0

Поворотник передний, левый

7 351 ₽/шт

2

35610-38AE1

Линза

1 696 ₽/шт

3

35630-38AE1

Линза

4 578 ₽/шт

4

35623-38AA0

SCREW(4X10)

321 ₽/шт

5

40503-00838-120

Bulb (12V 21W BA15s)

6

02142-0612B

Винт

81 ₽/шт

7

09320-09016

РЕЗИНКА

162 ₽/шт

8

03541-0510A

Болт

72 ₽/шт

9

35641-48G00

STAY,FR TURNSIGNAL

9 050 ₽/шт

10

09139-06146

Винт

162 ₽/шт

11

35603-48EC1

Lamp Assy,rr Turnsignal Rh

6 541 ₽/шт

11

35604-38AE1

Lamp Assy,rr Turnsignal Lh

7 671 ₽/шт

12

35630-38AE1

Линза

4 578 ₽/шт

13

35610-38AE1

Линза

1 696 ₽/шт

14

35623-38AA0

SCREW(4X10)

321 ₽/шт

15

40503-00838-120

Bulb (12V 21W BA15s)

16

35695-17C00

ШАЙБА

204 ₽/шт

17

09160-10501

WASHER,10.5X30X2.3

136 ₽/шт

18

08310-0010B

Гайка

85 ₽/шт

19

38610-03F01

Relay Assy,turnsignal Lamp

6 120 ₽/шт
