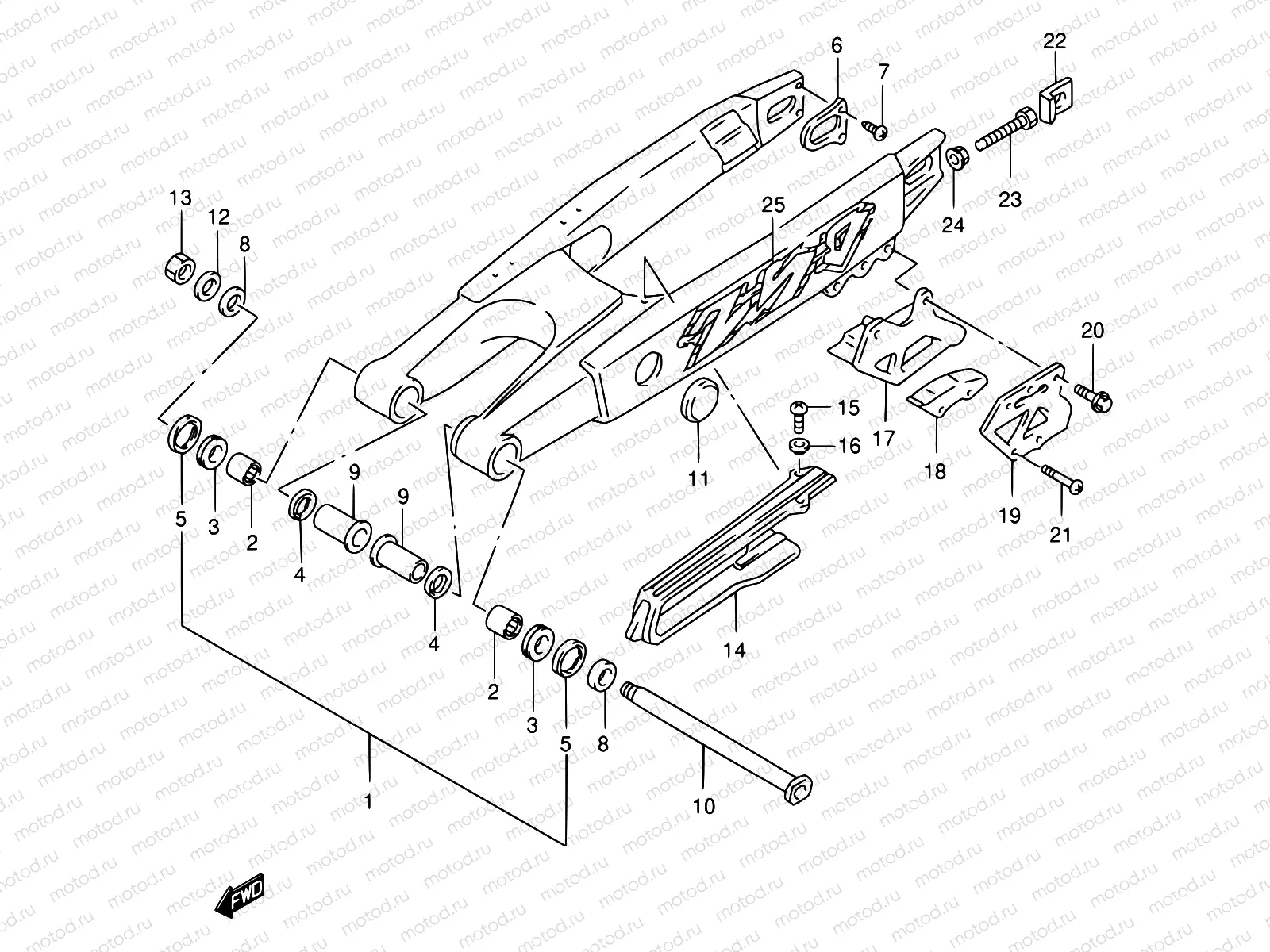

33A - REAR SWINGING ARM (MODEL V)

33A - REAR SWINGING ARM (MODEL V)
Например: 61000-36E10
1
61000-36E10
Swinging arm assy, rear
2
09263-22017
BEARING(22X29X30)
1 308 ₽/шт
3
09263-22064
ПОДШИПНИК ВЫЖИМНОЙ
1 324 ₽/шт
4
09285-22006
Seal,oil
226 ₽/шт
5
61262-36E00
SEAL,RR SWGARM PIVOT OUTER
388 ₽/шт
6
61128-28E00
Plate,swg arm
7
09126-05009
Винт (5X8)
129 ₽/шт
8
61251-36E01
SPACER,RR SWGARM PIVOT OUTER
748 ₽/шт
9
61252-36E00
SPACER,SWGARM PIVOT INNER
1 454 ₽/шт
10
61211-28C00
SHAFT,RR SWINGINGARM PIVOT
5 709 ₽/шт
11
09250-35003
CAP(OD:45)
2 030 ₽/шт
12
08322-01167
Шайба
85 ₽/шт
13
09159-16007
ШАЙБА
7 740 ₽/шт
14
61273-36E10
Guard chain sliding shoe
15
02112-0512A
Болт
85 ₽/шт
16
09169-05022
Шайба
2 150 ₽/шт
17
61341-27C20
Направляющая chain
3 226 ₽/шт
18
61348-27C20
DEFENSE,CHAIN GUIDE
4 488 ₽/шт
19
61342-28E00
PLATE,CHAIN GUIDE OUTER
4 145 ₽/шт
20
01547-0620B
БОЛТ
81 ₽/шт
21
09126-06013
Болт
2 420 ₽/шт
22
61445-28E10
WASHER,CHAIN ADJUSTER
2 366 ₽/шт
23
09100-08287
BOLT(8X50)
162 ₽/шт
24
09159-08034
Гайка
162 ₽/шт
25
68381-05D11-G7E
mblem,swinging
