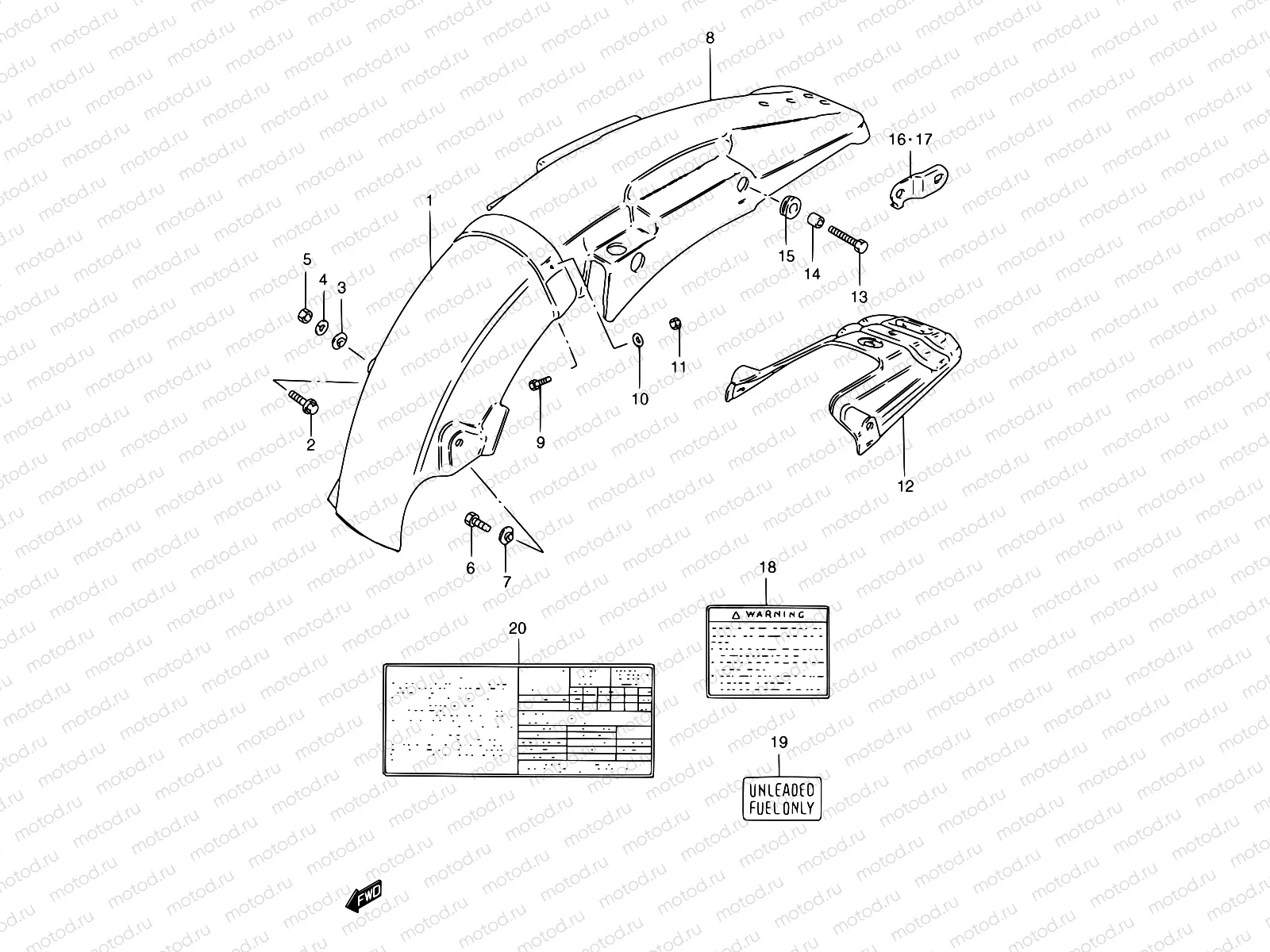

33A - REAR FENDER (TS185ERCV P09/TS185ERW/TS185ERX)

33A - REAR FENDER (TS185ERCV P09/TS185ERW/TS185ERX)

Например: 63112-29911

1

63112-29911

Body, rear fender front

2

01550-0616B

БОЛТ

81 ₽/шт

3

09169-06010

WASHER

211 ₽/шт

4

08321-0106A

Шайба

81 ₽/шт

5

08361-3506A

ГАЙКА

82 ₽/шт

6

01570-0612A

Болт

85 ₽/шт

7

09169-06010

WASHER

211 ₽/шт

8

63113-48200-14C

Fender, rear (red)

8

63113-48200-21C

Fender, rear (black)

8

63113-48200-30H

Fender, rear (white)

8

63113-48200-0NF

ender, rear (blue)

9

09116-05020

Болт 5X16

1 250 ₽/шт

10

09160-05037

Шайба

97 ₽/шт

11

08319-21057

Гайка

97 ₽/шт

12

63120-48501

REINFORCEMENT,RR FENDER

2 854 ₽/шт

13

01570-0830A

Болт

119 ₽/шт

14

09180-08188

Кольцо/шайба

162 ₽/шт

15

09320-12090

Cushion(11.8X25X7.5)

179 ₽/шт

16

41580-48530

Bracket, rear turn rh

16

41580-46530

BRACKET,RR TURNSIGNAL,R

1 720 ₽/шт

16

41580-48520

BRACKET,RR TURNSIGNAL,R

829 ₽/шт

17

41590-48530

Bracket, rear turn lh

17

41590-46530

BRACKET,RR TURNSIGNAL,L

1 411 ₽/шт

17

41590-48520

Bracket, rear turn lh

18

68319-33E52

Label,general w

19

86932-73060

Ярлык топлива

162 ₽/шт

21

99011-29932-01S

Manual, owner's
