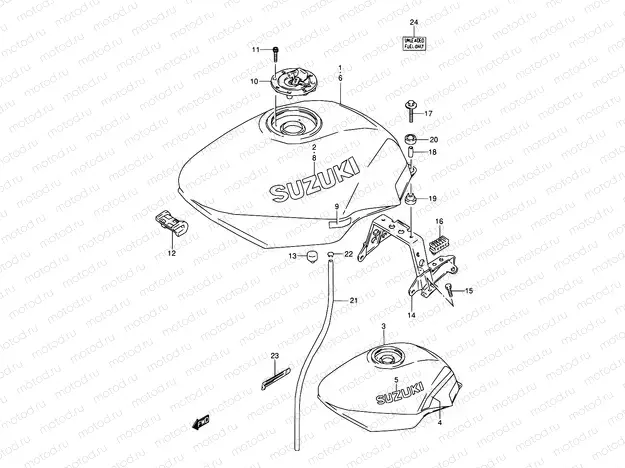

33A - FUEL TANK (MODEL M/N)

33A - FUEL TANK (MODEL M/N)
Например: 44110-19C22-YD8
1
44110-19C22-YD8
Fuel tank (Red)
3
44100-43C21-0JW
Tank assy fuel
3
44423-08F01
uel hose (Fuel tank)
6
44100-21C61-1MW
6
44423-08F01
uel hose (Fuel tank)
6
44100-21C61-12F
7
68110-20C21-K49
.tape set, fuel tank
7
68110-20C21-K51
.tape set, fuel tank
8
68111-12C30-0FP
EMBLEM
2 395 ₽/шт
9
44283-19C00
Protector, fuel tank rh
9
44293-19C00
Protector, fuel tank lh
10
44201-01833
Fuel cap
11
09106-05017
БОЛТ
113 ₽/шт
12
44511-19C00
ushion
13
09321-10011
САЙЛЕНТБЛОК
162 ₽/шт
14
44550-19C00
Bracket rear
15
01570-0620A
Болт
85 ₽/шт
16
45149-31300
CUSHION,SEAT(40X20X15)
510 ₽/шт
17
09116-06172
Болт
153 ₽/шт
18
09180-06271
Кольцо/шайба
172 ₽/шт
19
09320-10038
CUSHION
115 ₽/шт
20
09320-14017
CUSHION
114 ₽/шт
21
44423-19C01
Fuel hose (Fuel tank)
22
09401-08401
Хомут
113 ₽/шт
23
09404-08420
Струбцина L:137
221 ₽/шт
24
86932-73060
Ярлык топлива
162 ₽/шт
