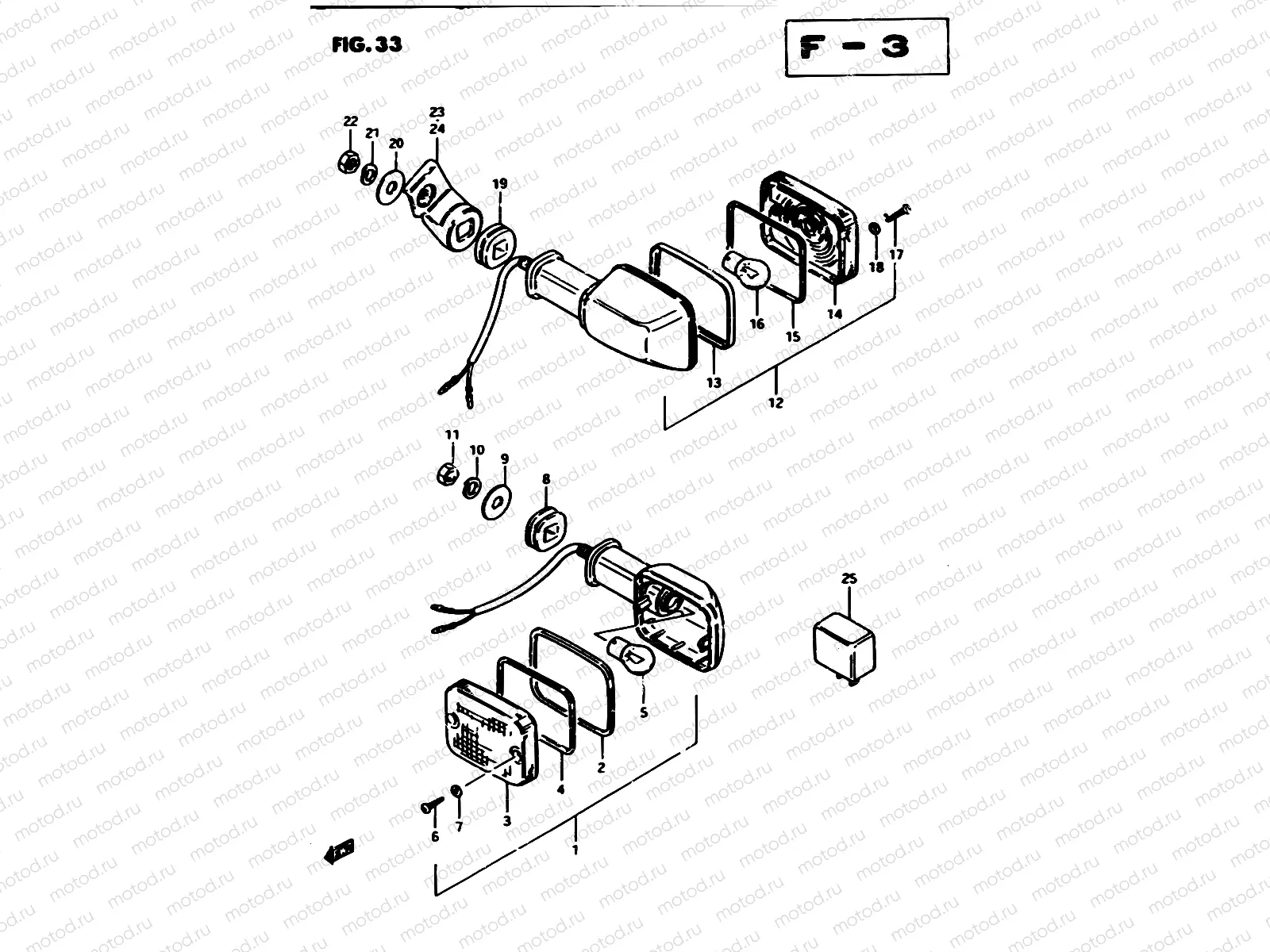

33 - TURN SIGNAL LAMP (E15)

33 - TURN SIGNAL LAMP (E15)

Например: 35601-45541

1

35601-45541

Lamp, front turn signal

2

35611-49230

RIM

2 584 ₽/шт

3

35612-49231

LENS

2 180 ₽/шт

4

35613-49230

GASKET

953 ₽/шт

5

40503-00838-120

Bulb (12V 21W BA15s)

6

03211-04207

Болт

85 ₽/шт

7

35627-43010

GASKET

179 ₽/шт

8

09320-15002

CUSHION

3 210 ₽/шт

9

09160-10501

WASHER,10.5X30X2.3

136 ₽/шт

13

35611-49230

RIM

2 584 ₽/шт

14

35652-14182

.lens

15

35613-49230

GASKET

953 ₽/шт

16

40503-00838-120

Bulb (12V 21W BA15s)

17

03211-04207

Болт

85 ₽/шт

18

35627-43010

GASKET

179 ₽/шт

19

09320-15004

CUSHION

272 ₽/шт

20

09160-10501

WASHER,10.5X30X2.3

136 ₽/шт

21

08321-01107

Шайба, стопорная

85 ₽/шт

22

08310-00107

Гайка

85 ₽/шт

23

35621-11500

Bracket,rr turn

24

35641-11500

Bracket,rr turn

25

38610-31X50

RELAY ASSY,TURNSIGNAL

2 805 ₽/шт
