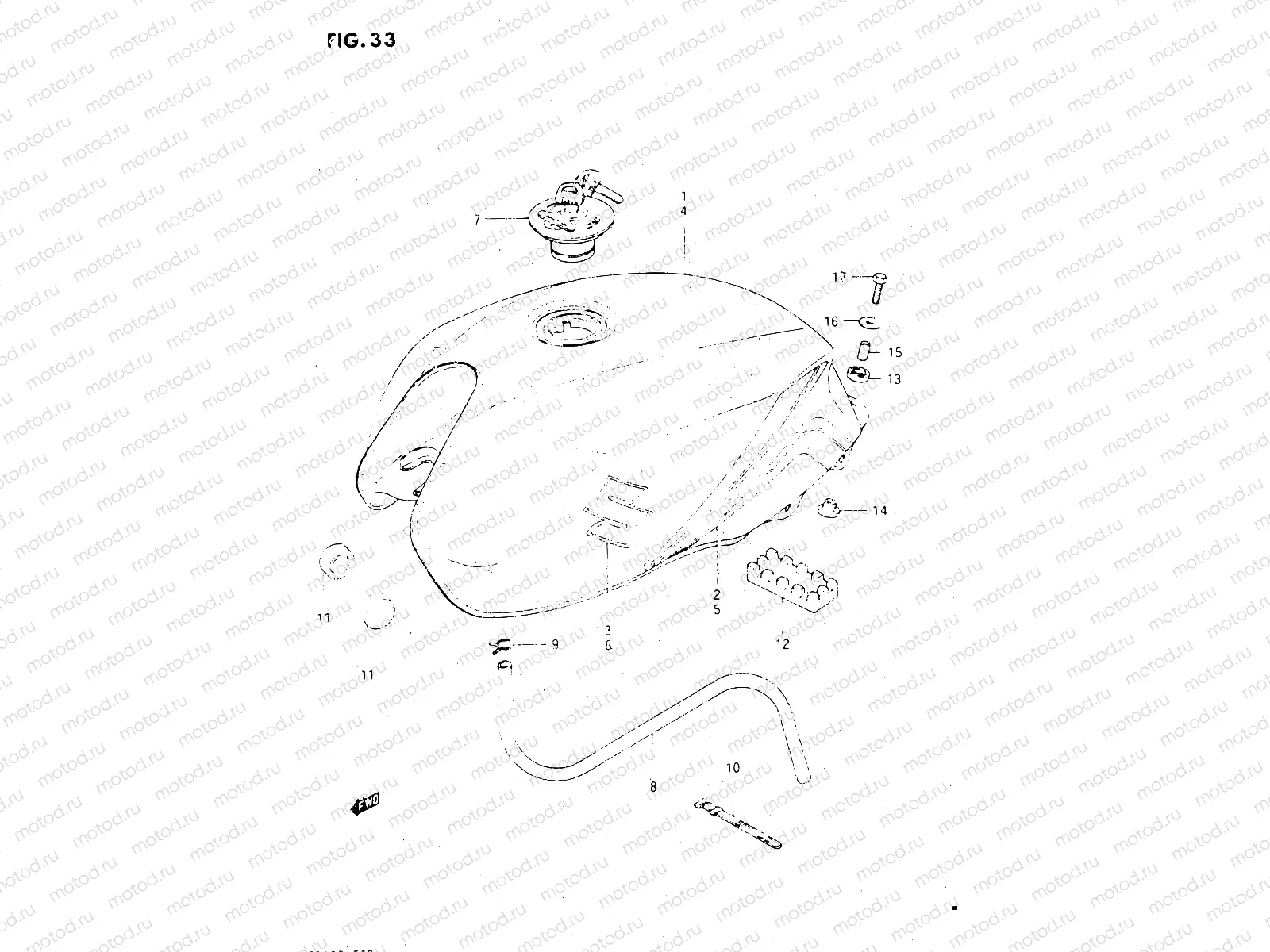

33 - FUEL TANK (GSX500EE)

33 - FUEL TANK (GSX500EE)
Например: 44100-43450-13Z
1
44100-43450-13Z
Tank assy, fuel (black)
2
68110-43421-71P
.tape set, fuel tank
3
68111-43410-71P
.emblem
4
44100-43450-07P
Tank assy, fuel (red)
5
68110-43421-60D
.tape set, fuel tank
6
68111-43410-60D
.emblem
7
44200-43410-KEY
Cap assy,fuel t
8
09352-50005-600
ШЛАНГ
436 ₽/шт
9
09401-08401
Хомут
113 ₽/шт
10
09407-18401
ХОМУТ РУЛ. НАК.
1 060 ₽/шт
11
09329-10026
ОПОРА КРЕПЛЕНИЯ ТОПЛИВНОГО БАКА
226 ₽/шт
12
44541-43400
Cushion, center
13
09320-14013
Валик топливного бака
221 ₽/шт
14
09320-10038
CUSHION
115 ₽/шт
15
09180-06308
SPACER(6.5X9X20)
1 960 ₽/шт
16
09160-06501
Шайба
102 ₽/шт
17
01500-0630A
Болт
1 330 ₽/шт
