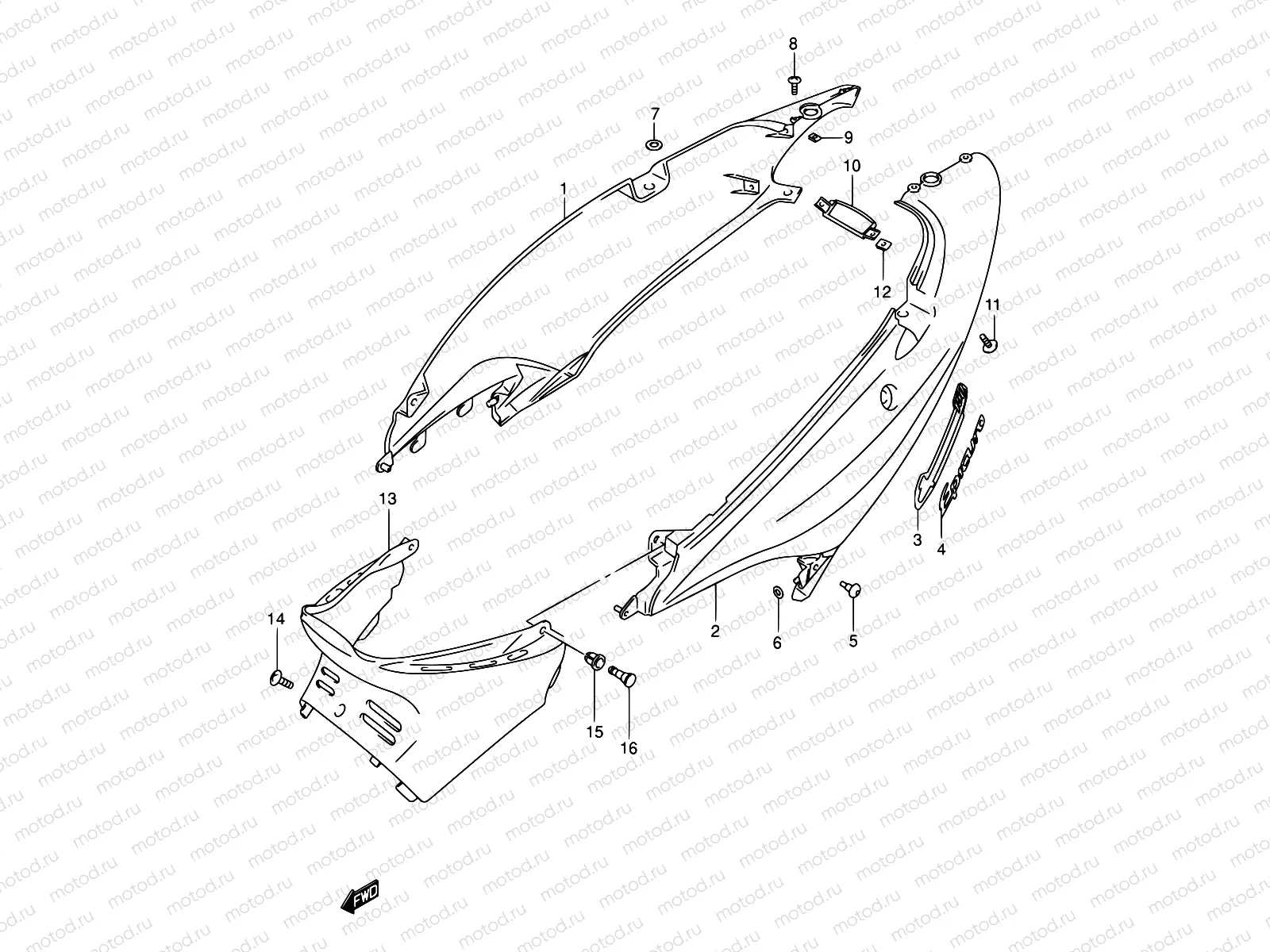

33 - FRAME COVER (MODEL X)

33 - FRAME COVER (MODEL X)
Например: 47111-21F00-Y2D
1
47111-21F00-Y2D
COVER,FRAME,R
1
47111-21F00-Y0W
COVER,FRAME,R
1
47111-21F00-Y7G
COVER,FRAME,R
2
47211-21F00-Y2D
COVER,FRAME,L
2
47211-21F00-Y0W
COVER,FRAME,L
2
47211-21F00-Y7G
COVER,FRAME,L
3
68135-21F10-YB8
Tape, frame cover
3
68135-21F10-YB9
TAPE,FRAME COVER
3
68135-21F10-YC1
Tape, frame cover
4
68131-21F00
EMBLEM,FRAME COVER
5
09409-08308-5ES
CLIP(GRAY)
178 ₽/шт
6
09320-08527
Cushion
1 640 ₽/шт
7
09169-08036
Шайба, верхняя
1 560 ₽/шт
8
03541-0516B
Болт
81 ₽/шт
9
09148-05038
ГАЙКА
97 ₽/шт
10
47311-21F00-Y2D
COVER,FRAME,CENTER
10
47311-21F00-Y0W
COVER,FRAME,CENTER
10
47311-21F00-Y7G
COVER,FRAME,CENTER
11
03541-0512B
Винт
81 ₽/шт
12
09148-05038
ГАЙКА
97 ₽/шт
13
47351-21F00-Y0J
COVER,FRAME FR
3 832 ₽/шт
14
94472-14D10
Болт
1 380 ₽/шт
15
09409-08329
ШАЙБА
119 ₽/шт
16
09409-08330
Плунжер
119 ₽/шт
