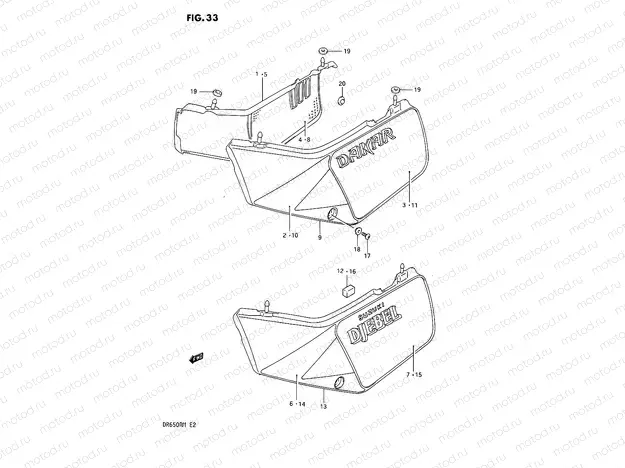

33 - FRAME COVER (MODEL L)

33 - FRAME COVER (MODEL L)
Например: 47111-14A10-30H
1
47111-14A10-30H
1
47166-14C00
Shield, rh
1
47110-14C00-14L
over, frame rh (white)
2
68135-14A90-3UC
.tape, front rh
2
68135-14A90-3UB
.tape, front rh
3
68136-14A20-3UE
.tape, rear rh
3
68136-14A20-3UD
.tape, rear rh
4
47166-14C00
.shield, heat rh
5
47110-14C10-30H
over, frame rh (white)
5
47110-14C10-14L
over, frame rh (white)
6
68135-14A90-3UC
.tape, front rh
6
68135-14A90-3UB
.tape, front rh
7
68136-14A10-3UE
.tape, rear rh
7
68136-14A10-3UD
.tape, rear rh
8
47166-14C00
.shield, heat rh
9
47210-14C00-30H
over, frame lh (white)
9
47210-14C00-14L
OVER,SIDE,L(WHITE)
13 685 ₽/шт
10
68145-14A90-3UC
.tape, front lh
10
68145-14A90-3UB
.tape, front lh
11
68146-14A20-3UE
.tape, rear lh
11
68146-14A20-3UD
.tape, rear lh
12
47165-48B11
CUSHION
250 ₽/шт
13
47210-14C10-30H
over, frame lh (white)
13
47210-14C10-14L
over, frame lh (white)
14
68145-14A90-3UC
.tape, front lh
14
68145-14A90-3UB
.tape, front lh
15
68146-14A10-3UE
.tape, rear lh
15
68146-14A10-3UD
.tape, rear lh
16
47165-48B11
CUSHION
250 ₽/шт
17
02142-06127
Винт 6X12
81 ₽/шт
18
09169-06041
Шайба
85 ₽/шт
19
47161-14A00
CUSHION,SIDE COVER BOSS
141 ₽/шт
20
09321-10018
САЙЛЕНТБЛОК
238 ₽/шт
