Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VS 800 Intruder SUZUKI VS800GL K4 Intruder SUZUKI 33 - FRAME

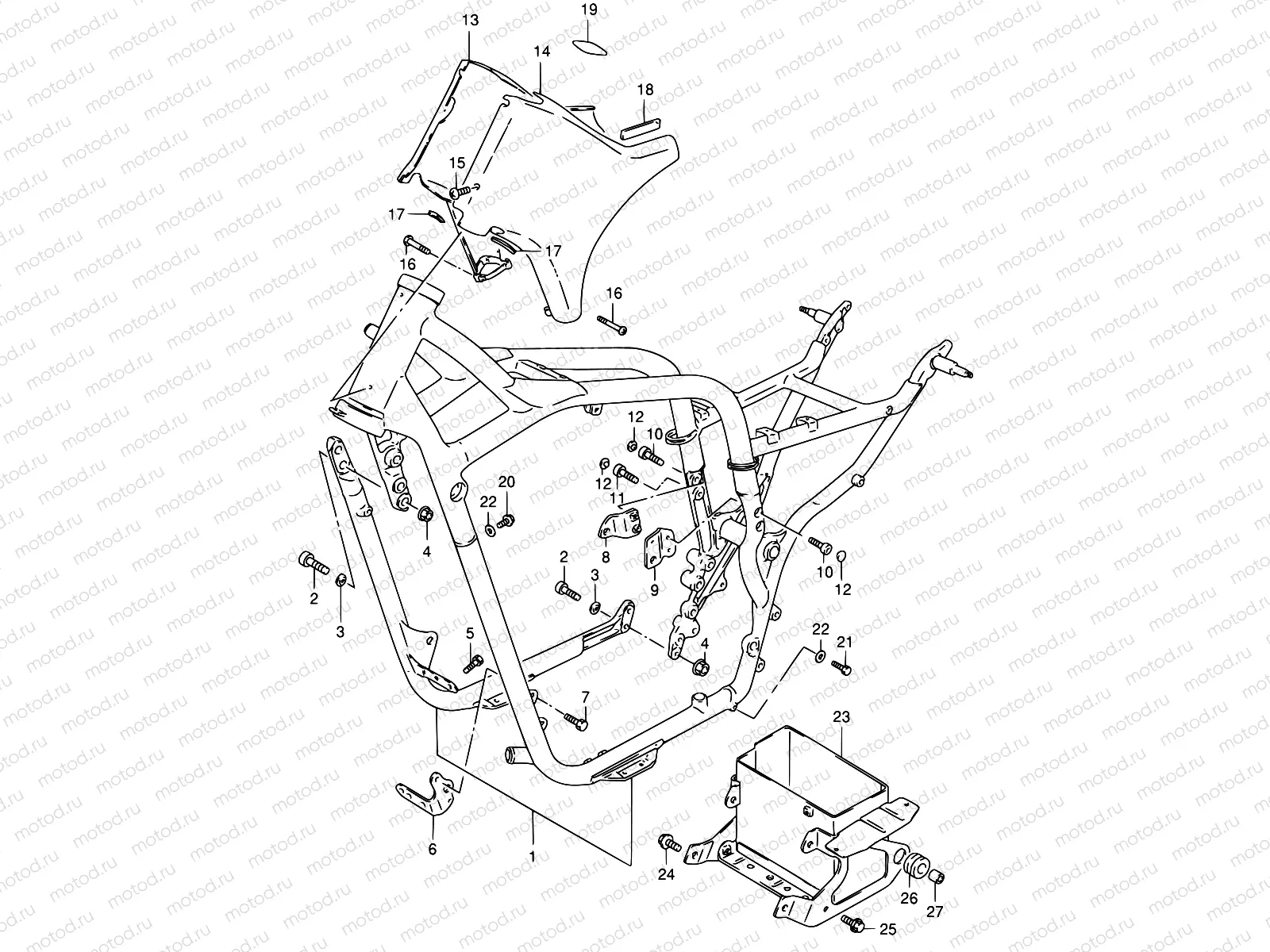

33 - FRAME

33 - FRAME

Например: 41101-39813-YD8

1

41101-39813-YD8

Frame set (silver)

1

41101-39813-YAY

Frame set (black)

2

09106-10019

BOLT(10X33)

2 310 ₽/шт

3

09164-10010

Шайба

3 250 ₽/шт

4

08319-3110B

Гайка

1 920 ₽/шт

5

01550-0820A

БОЛТ

102 ₽/шт

6

41920-38A00-019

Plate,eng mount

7

07130-0816A

БОЛТ

113 ₽/шт

8

41950-38A11-019

PLATE,ENGINE MOUNT NO.3,R

2 757 ₽/шт

9

41960-38A10-019

PLATE,ENGINE MOUNT NO.3,L

2 248 ₽/шт

10

09106-08070

Болт верхний

3 280 ₽/шт

11

07130-0830A

БОЛТ (хром)

2 070 ₽/шт

12

09250-06004

CAP(OD:14.5)

97 ₽/шт

13

47350-38A01-YD8

Cover, frame head rh (silver)

13

47350-38A01-YAY

Cover, frame head rh (black)

14

47360-38A01-YD8

Cover, frame head lh (silver)

14

47360-38A01-YAY

COVER,FRAME HEAD,L(BLACK)

19 941 ₽/шт

15

02142-0610B

Винт держатель

85 ₽/шт

16

02112-0425B

Болт

85 ₽/шт

17

68241-04X50-300

MOLDING

262 ₽/шт

18

33652-07D00

КОЖУХ

299 ₽/шт

19

47358-38A00

TAPE,FRAME HEAD COVER

559 ₽/шт

20

17568-50F00

Болт крышки термостата

221 ₽/шт

21

01550-0610B

Болт

85 ₽/шт

22

09168-06026

ШАЙБА ФОРСУНКИ

97 ₽/шт

23

41540-38A12

HOLDER,BATTERY

12 395 ₽/шт

24

01551-1016A

Болт

1 840 ₽/шт

25

01550-0616B

БОЛТ

81 ₽/шт

26

09320-12031

САЙЛЕНТБЛОК

204 ₽/шт

27

09301-08009

Кольцо/шайба

3 400 ₽/шт
