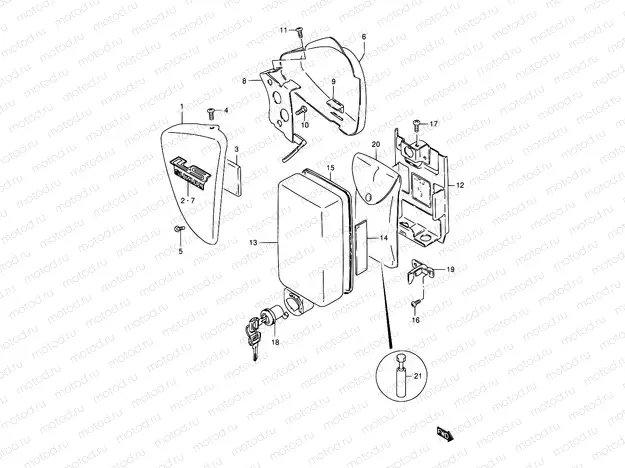

32C - FRAME COVER (MODEL K2/K3)

32C - FRAME COVER (MODEL K2/K3)

Например: 47100-24B40-2AX

1

47100-24B40-2AX

Cover, frame rh (black)

1

47100-24B40-YD8

Cover, frame rh (silver)

2

68131-24B40-HV3

.emblem

2

68131-24B40-HV4

Emblem

3

13719-84150

РЕЗИНКА НА ПЕДАЛЬ ТО

172 ₽/шт

4

02142-0510A

Болт

82 ₽/шт

5

02112-7516A

Болт

102 ₽/шт

6

47200-24B40-2AX

Cover assy,fram

6

47200-24B40-YD8

COVER ASSY,FRAME,L(SILVER)

13 372 ₽/шт

7

68131-24B40-HV3

.emblem

7

68131-24B40-HV4

Emblem

8

47180-24B03

RACKET,FRAME COVER,L

1 241 ₽/шт

9

47117-45000

Крышка рамы

187 ₽/шт

10

02122-0612B

Болт

82 ₽/шт

11

02142-0510A

Болт

82 ₽/шт

12

47430-24B01

HOLDER,TOOL

1 309 ₽/шт

13

47440-24B20

COVER,TOOL HOLDER

12 436 ₽/шт

14

33652-07D00

КОЖУХ

299 ₽/шт

15

47445-24B00

MOLDING

238 ₽/шт

16

02142-0510A

Болт

82 ₽/шт

17

02112-0610B

Винт

81 ₽/шт

18

95700-24871

LOCK SET,TOOL HOLDER

5 143 ₽/шт

19

47434-24B00

Плата замка

238 ₽/шт

20

09800-21069

Tool Assy

4 223 ₽/шт

21

96220-24B00

GAUGE ASSY,TENSION

3 715 ₽/шт
