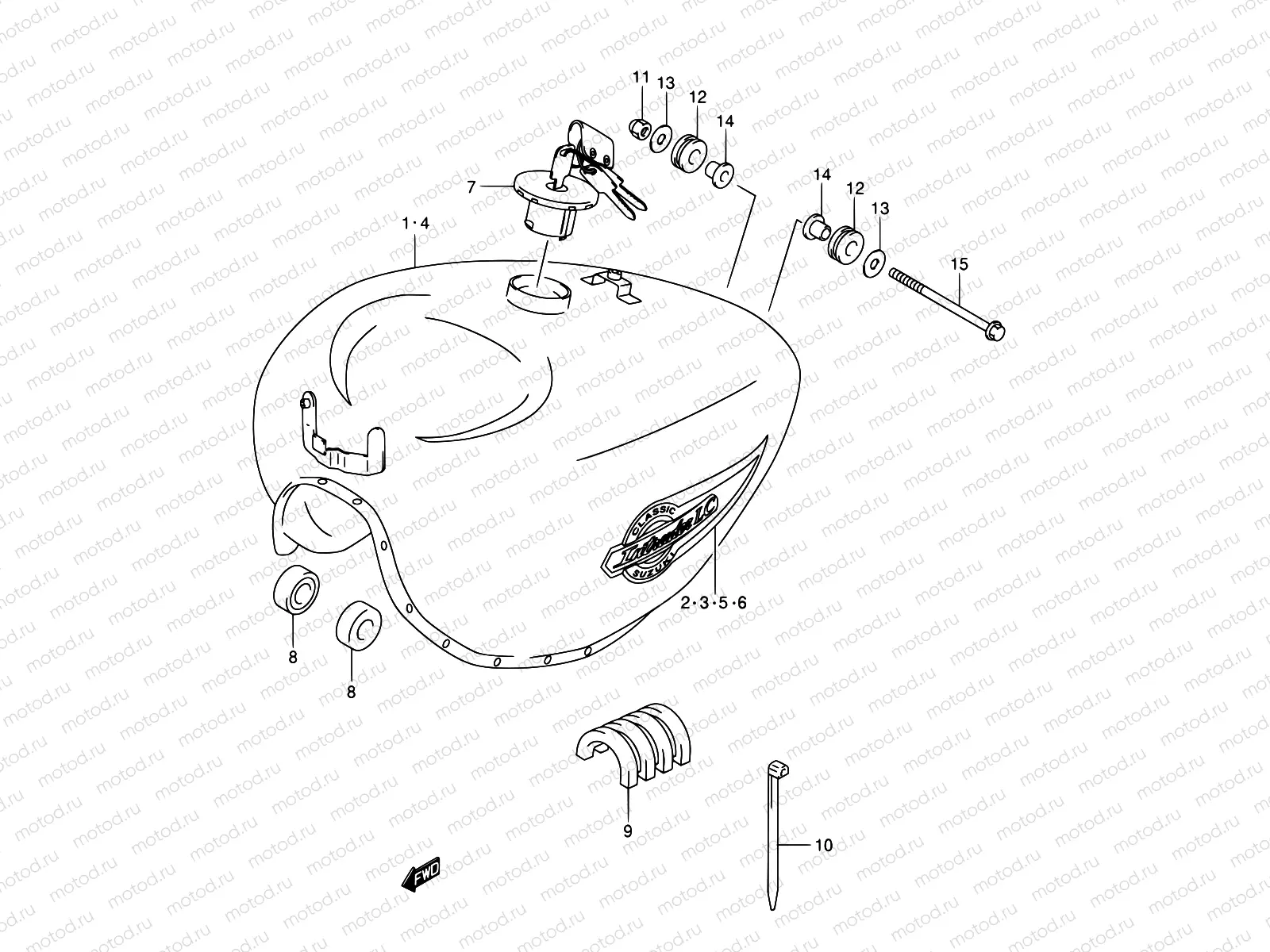

32A - FUEL TANK (MODEL K2/K3/K4)

32A - FUEL TANK (MODEL K2/K3/K4)

Например: 44100-26F80-YAY

4

44100-26F80-YAY

TANK ASSY.FUEL

4

44100-26F80-YV2

TANK ASSY,FUEL(SILVER)

70 312 ₽/шт

5

68111-26F10-YW9

EMBLEM,FUEL TANK,RH

5

68111-26F10-YCC

.emblem, rh

5

68111-26F10-YCD

.emblem, rh

5

68111-26F10-YFB

EMBLEM.FUEL TANK.R(YAY)

5

68111-26F10-YFA

.emblem, rh

6

68121-26F10-YW9

.emblem, lh

6

68121-26F10-YCC

EMBLEM,FUEL TANK,L

6

68121-26F10-YCD

.emblem, lh

6

68121-26F10-YFB

Emblem,fuel tan

6

68121-26F10-YFA

.emblem, lh

7

44200-26821

Fuel cap

8

09329-10026

ОПОРА КРЕПЛЕНИЯ ТОПЛИВНОГО БАКА

226 ₽/шт

9

44541-13E00

CUSHION,FUEL TANK UPR

864 ₽/шт

10

09407-25402

CLAMP(L:250)

238 ₽/шт

11

08313-2006A

Гайка

337 ₽/шт

12

09320-12092

Cushion

3 250 ₽/шт

13

09160-06501

Шайба

102 ₽/шт

14

09169-06074

Кольцо/шайба

291 ₽/шт

15

01550-0695B

Болт

2 310 ₽/шт
