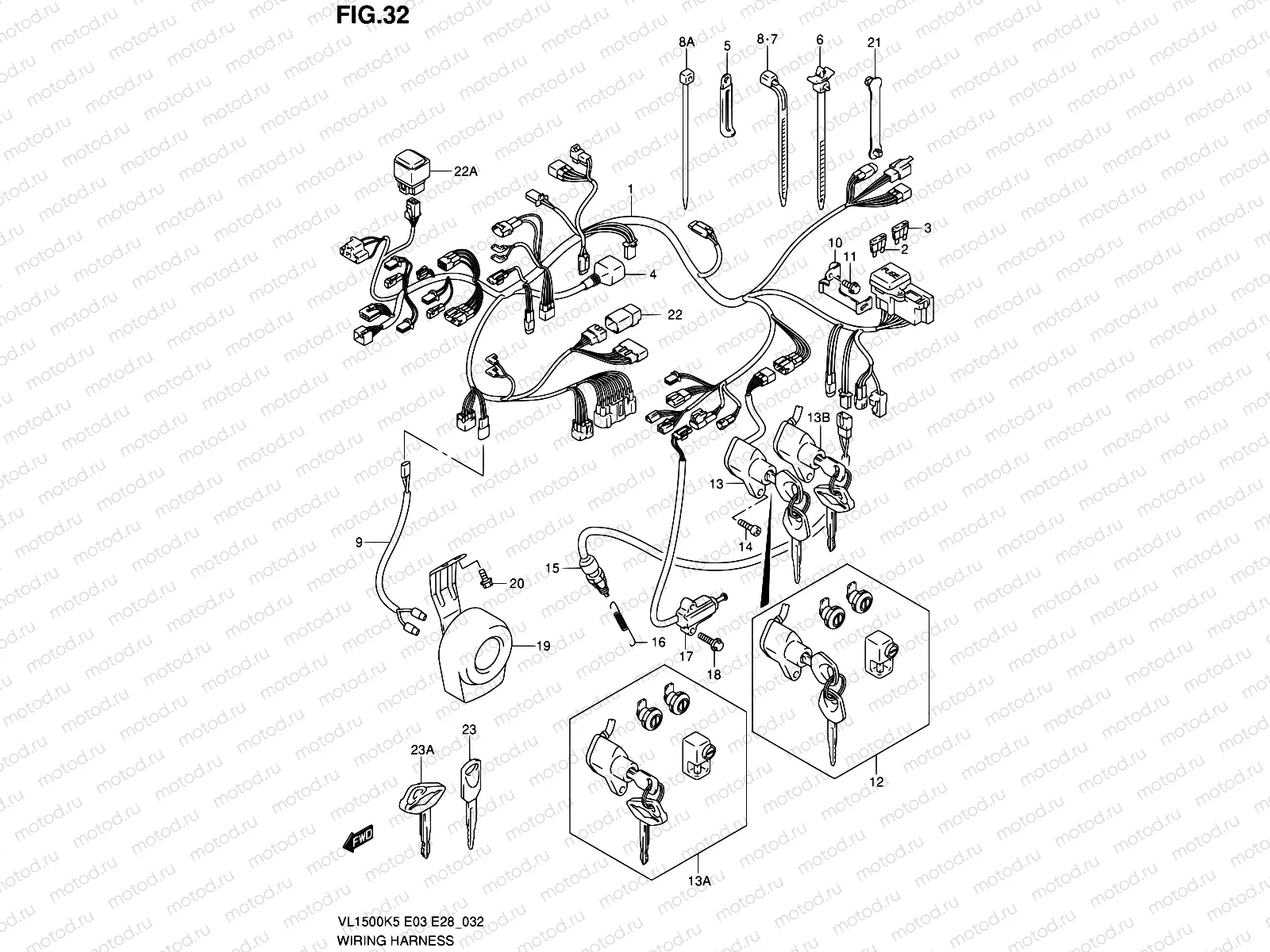

32 - WIRING HARNESS

32 - WIRING HARNESS
Например: 36610-10FD0
1
36610-10FD0
Harness, wiring
2
09481-10504
Ограничитель,10A
1 250 ₽/шт
3
09481-15501-LCP
Fusible (10A)
4
36618-33E00
COVER,SPEEDOMETER COUPLER
438 ₽/шт
5
09404-06039
Clamp(L:65)
194 ₽/шт
5
09404-06036
Clamp(L:80)
194 ₽/шт
5
09404-06435
CLAMP(L:135)
226 ₽/шт
6
09407-11402
КОЛЬЦО
186 ₽/шт
7
09407-14403
КЛЕММА
221 ₽/шт
7
09407-18402
Струбцина (L:165)
211 ₽/шт
7
09407-25401
Хомут
221 ₽/шт
8
09407-22403
CLAMP(L:220)
1 370 ₽/шт
8
09407-14407
ЗАЖИМ
221 ₽/шт
9
36852-21E10
Wire,horn lead
10
36744-10F00
Bracket,fuse
11
01550-0612B
БОЛТ
81 ₽/шт
12
37000-26832
Lock set
13
37110-26F02
Замок зажигания
8 641 ₽/шт
14
07130-0616B
БОЛТ
97 ₽/шт
15
37740-10F00
SWITCH ASSY,STOP LAMP
2 463 ₽/шт
16
43139-10F00
SPRING,STOP LAMP SWITCH
500 ₽/шт
17
37840-10F01
Switch, side stand
18
01550-0620A
Болт
81 ₽/шт
19
38500-10F20
Звуковой сигнал
11 144 ₽/шт
19
38500-10F00
Звуковой сигнал
9 619 ₽/шт
20
01550-0616B
БОЛТ
81 ₽/шт
21
09407-03401
CLAMP(L:33)
97 ₽/шт
22
38740-24X50
RELAY ASSY, HEAD LAMP
2 665 ₽/шт
23
37146-48E10
KEY,BLANK
1 779 ₽/шт
