Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VZ 800 Boulevard M50 / Intruder M800 SUZUKI VZ800Z K9 Intruder M800 / Boulevard M50 (E02) SUZUKI (VIN: JS1B4111) 32 - TURNSIGNAL FRONT & REAR LAMP

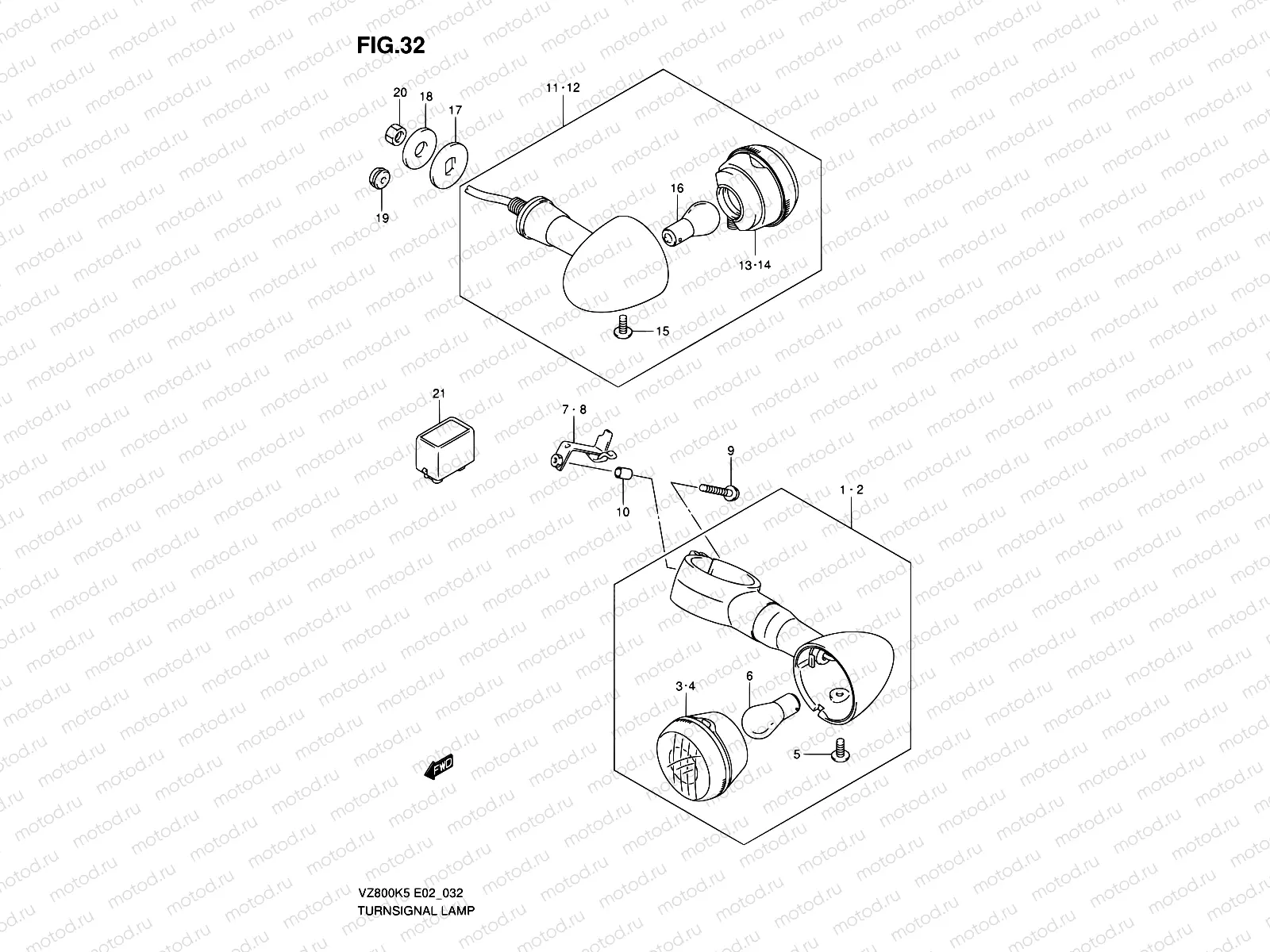

32 - TURNSIGNAL FRONT & REAR LAMP

32 - TURNSIGNAL FRONT & REAR LAMP

Например: 35601-48EA0

1

35601-48EA0

Поворотник передний, правый

11 691 ₽/шт

2

35602-48EA0

Поворотник передний, левый

11 691 ₽/шт

3

35610-48EA0

Линза

1 785 ₽/шт

4

35630-48EA0

Линза

1 870 ₽/шт

5

35623-38AA0

SCREW(4X10)

321 ₽/шт

6

40503-00891-477

Py21w,21w, bau1

7

35671-39G00

BRACKET,FR TURNSIGNAL,R

559 ₽/шт

8

35681-39G00

BRACKET,FR TURNSIGNAL,L

559 ₽/шт

9

09136-06083

Винт 6X30

1 720 ₽/шт

10

09180-06121

SPACER(6.4X9.2X12)

1 330 ₽/шт

10

09407-14407

ЗАЖИМ

221 ₽/шт

11

35603-38AF0

Поворотник задний, правый

10 713 ₽/шт

12

35604-38AF0

Clignotant

13

35630-38AF0

Линза

1 785 ₽/шт

14

35610-38AF0

Линза

1 785 ₽/шт

15

35623-38AA0

SCREW(4X10)

321 ₽/шт

16

40503-00891-477

Py21w,21w, bau1

17

35695-17C00

ШАЙБА

204 ₽/шт

18

09160-10501

WASHER,10.5X30X2.3

136 ₽/шт

19

09308-05015

GROMMET

2 030 ₽/шт

20

08310-0010B

Гайка

85 ₽/шт

21

38610-03F01

Relay Assy,turnsignal Lamp

6 120 ₽/шт
