Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI TF 125 SUZUKI TF125 K5 SUZUKI 32 - HANDLEBAR

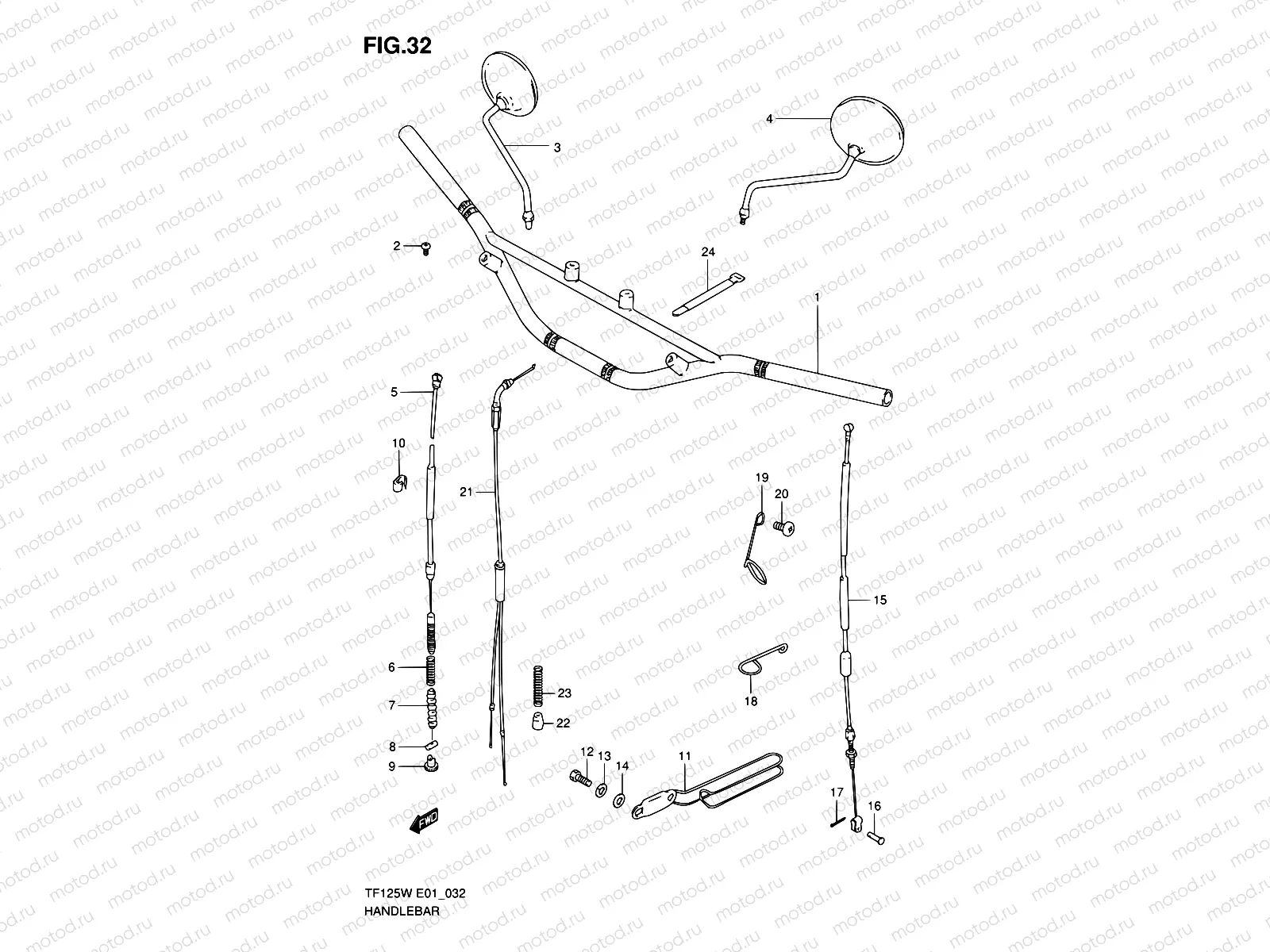

32 - HANDLEBAR

32 - HANDLEBAR

Например: 56110-29532

1

56110-29532

Handlebar (BLACK)

1

56110-29540

HANDLEBAR

11 417 ₽/шт

3

56500-31014

Mirror Assy,rr View,r

6 217 ₽/шт

4

56600-31014

Mirror Assy,rr View,l

6 217 ₽/шт

5

58100-28090

CABLE,FR BRAKE

2 584 ₽/шт

6

09440-06003

SPRING

211 ₽/шт

7

09287-07001

SEAL,DUST(7X16X75)

211 ₽/шт

8

09209-10001

PIN,10X19

194 ₽/шт

9

09150-05101

Гайка

211 ₽/шт

10

09408-00002

Крепёж

1 410 ₽/шт

11

34930-05203

Направляющая кабеля

1 052 ₽/шт

12

01580-08123

Vis

15

58200-46090

Тросик сцепления

3 230 ₽/шт

16

09200-06004

Стопор

113 ₽/шт

17

04111-2015A

Штифт

81 ₽/шт

18

34948-29000

CLAMP,METER CABLE

282 ₽/шт

19

34949-30002

CLIP

238 ₽/шт

20

02112-06087

Винт крестовый 6x8

82 ₽/шт

21

58300-48413

Câble de gaz

22

09287-07006

Seal,dust

1 370 ₽/шт

23

58399-27100

PROTECTOR,CABLE

383 ₽/шт

24

09407-14403

КЛЕММА

221 ₽/шт
