Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI VL 125 Intruder SUZUKI VL125U K1 Intruder SUZUKI (VIN: JS1A4211) 32 - FUEL TANK (MODEL Y/K1)

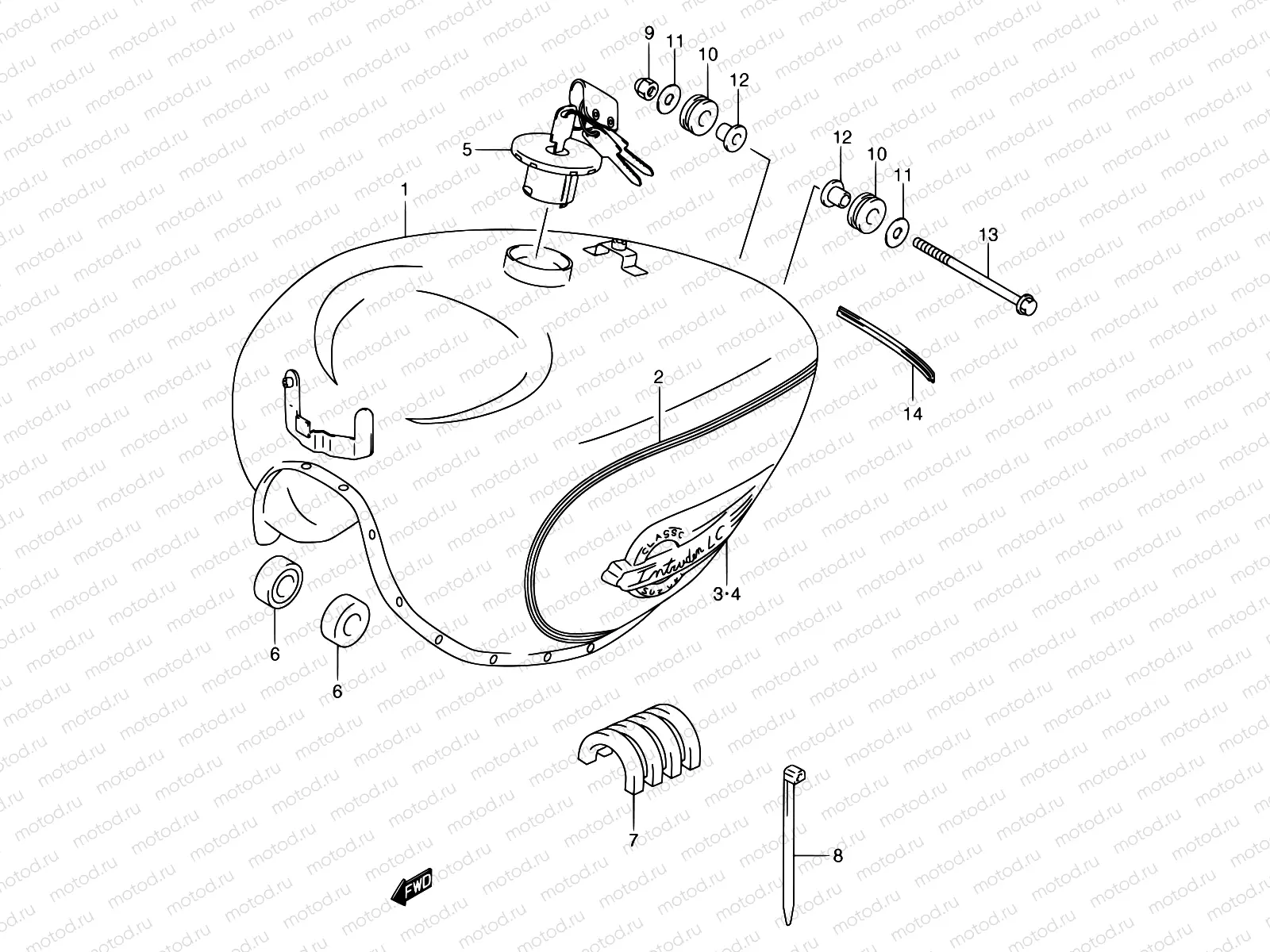

32 - FUEL TANK (MODEL Y/K1)

32 - FUEL TANK (MODEL Y/K1)

Например: 44100-26F20-2AX

1

44100-26F20-2AX

uel tank (Black)

1

44100-26F20-1LF

TANK ASSY,FUEL

1

44100-26F20-YC7

Tank assy, fuel (gold)

1

44100-26F20-YD8

Tank assy, fuel (silver)

2

68110-26F40-EC2

TAPE SET,FUEL TANK

2

68110-26F40-EC3

2

68110-26F20-EC4

.tape set

2

68110-26F20-EC5

.tape set

3

68111-26F00

EMBLEM,FUEL TANK,R

4 301 ₽/шт

4

68121-26F00

EMBLEM,FUEL TANK,L

4 301 ₽/шт

5

44200-26821

Fuel cap

6

09329-10026

ОПОРА КРЕПЛЕНИЯ ТОПЛИВНОГО БАКА

226 ₽/шт

7

44541-13E00

CUSHION,FUEL TANK UPR

864 ₽/шт

8

09407-25402

CLAMP(L:250)

238 ₽/шт

9

08313-2006A

Гайка

337 ₽/шт

10

09320-12092

Cushion

3 250 ₽/шт

11

09160-06501

Шайба

102 ₽/шт

12

09169-06074

Кольцо/шайба

291 ₽/шт

13

01550-0695B

Болт

2 310 ₽/шт

14

68241-04X50-00B

MOLDING

1 696 ₽/шт
