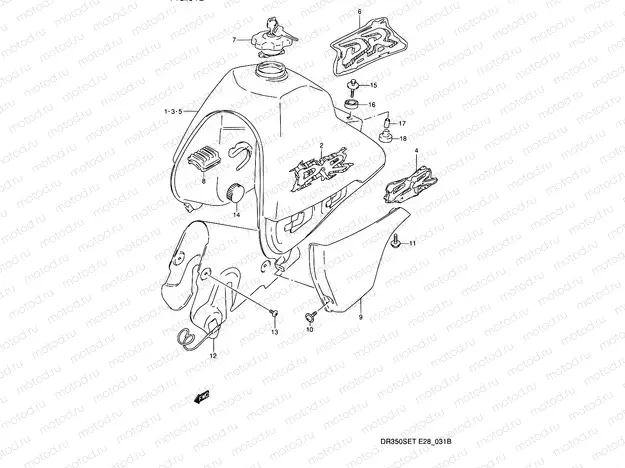

31B - FUEL TANK (MODEL R/S/T)

31B - FUEL TANK (MODEL R/S/T)
Например: 44100-14EE0-28X
1
44100-14EE0-28X
Tank assy, fuel (white)
2
68120-12E00-1WN
Tape set,fuel t
7
44200-03811
Fuel cap
8
44541-15D01
amper (Upper)
9
44171-15D00-30H
COVER,FUEL TANK,R
2 229 ₽/шт
9
44181-15D00-30H
Cover,tank,l
10
02142-06107
Болт
85 ₽/шт
11
09136-06002
SCREW(6X12)
1 410 ₽/шт
12
49131-14D20
Heat shield, fuel tank
13
01560-05103
Болт
1 330 ₽/шт
14
09329-10016
САЙЛЕНТБЛОК
221 ₽/шт
15
09116-06172
Болт
153 ₽/шт
16
09320-14013
Валик топливного бака
221 ₽/шт
17
09180-06271
Кольцо/шайба
172 ₽/шт
18
09320-10038
CUSHION
115 ₽/шт
