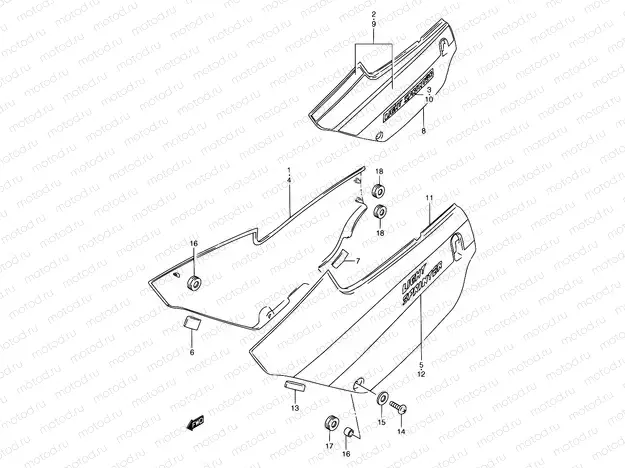

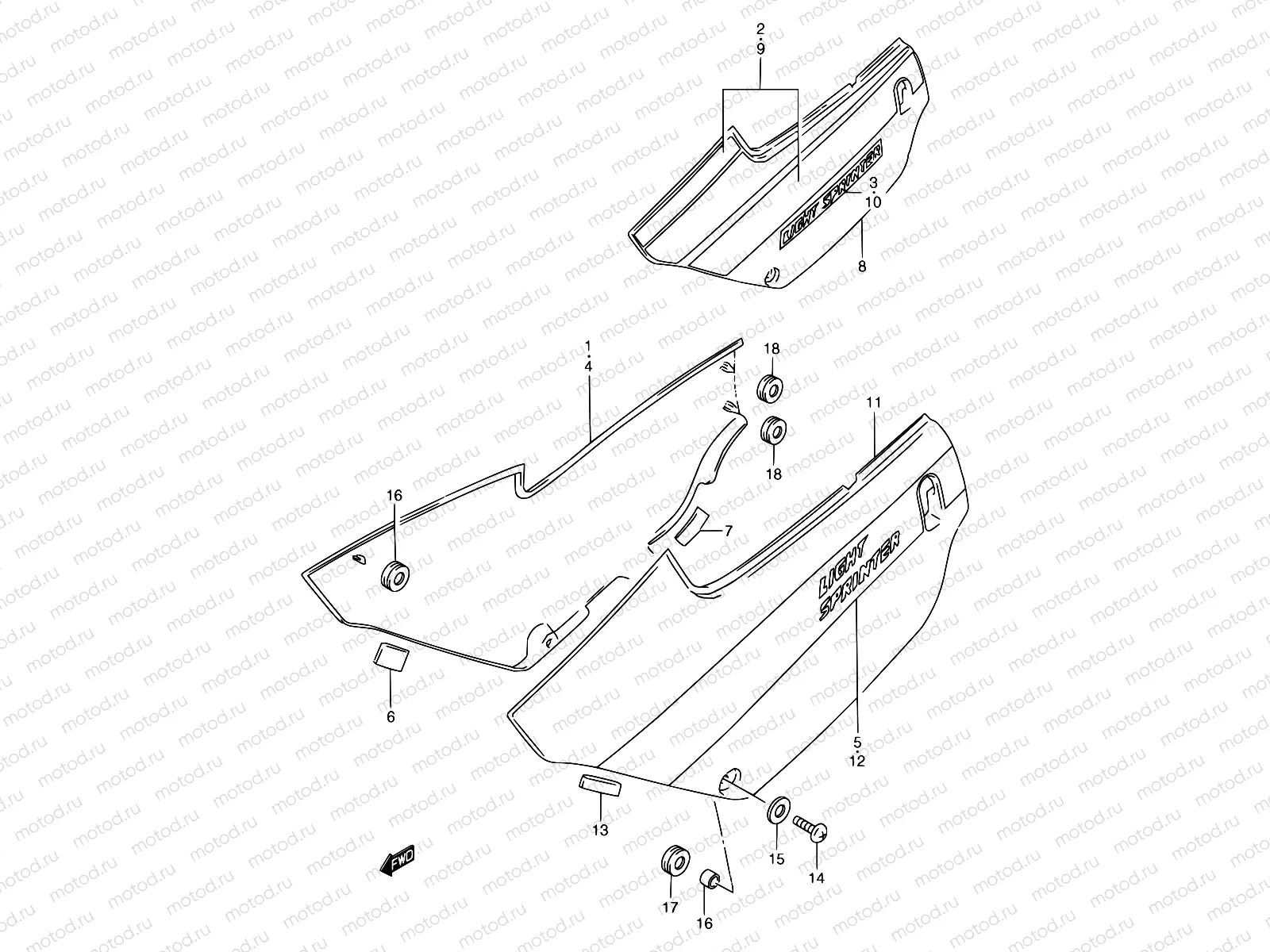

31B - FRAME COVER (MODEL M)

31B - FRAME COVER (MODEL M)

Например: 47111-36A01

1

47111-36A01

2

68130-36A70-C09

.tape set, frame cover rh

3

68131-36A60-F82

.emblem

4

47110-46A90-0CY

over, frame rh (black)

5

68135-37A10-3JA

.tape set, frame cover rh

6

47161-36A00

Cushion, rh

7

35733-12D10

CUSHION,WATER PROOF,LOWER

8

47211-36A01

9

68140-36A70-C09

.tape set, frame cover lh

10

68131-36A60-F82

.emblem

11

47210-46A90-0CY

over, frame lh (black)

12

68145-37A10-3JA

.tape set, frame cover lh

13

47161-42A00

CUSHION,FRAME COVER

328 ₽/шт

14

09125-06055

Болт

170 ₽/шт

15

09160-06028

Шайба

102 ₽/шт

16

09180-06283

Кольцо/шайба

162 ₽/шт

17

09320-09016

РЕЗИНКА

162 ₽/шт

18

09320-08527

Cushion

1 640 ₽/шт
