Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI RM 250 SUZUKI RM250 K (E03,E28,E33) SUZUKI 31A - REAR SWINGING ARM (MODEL M)

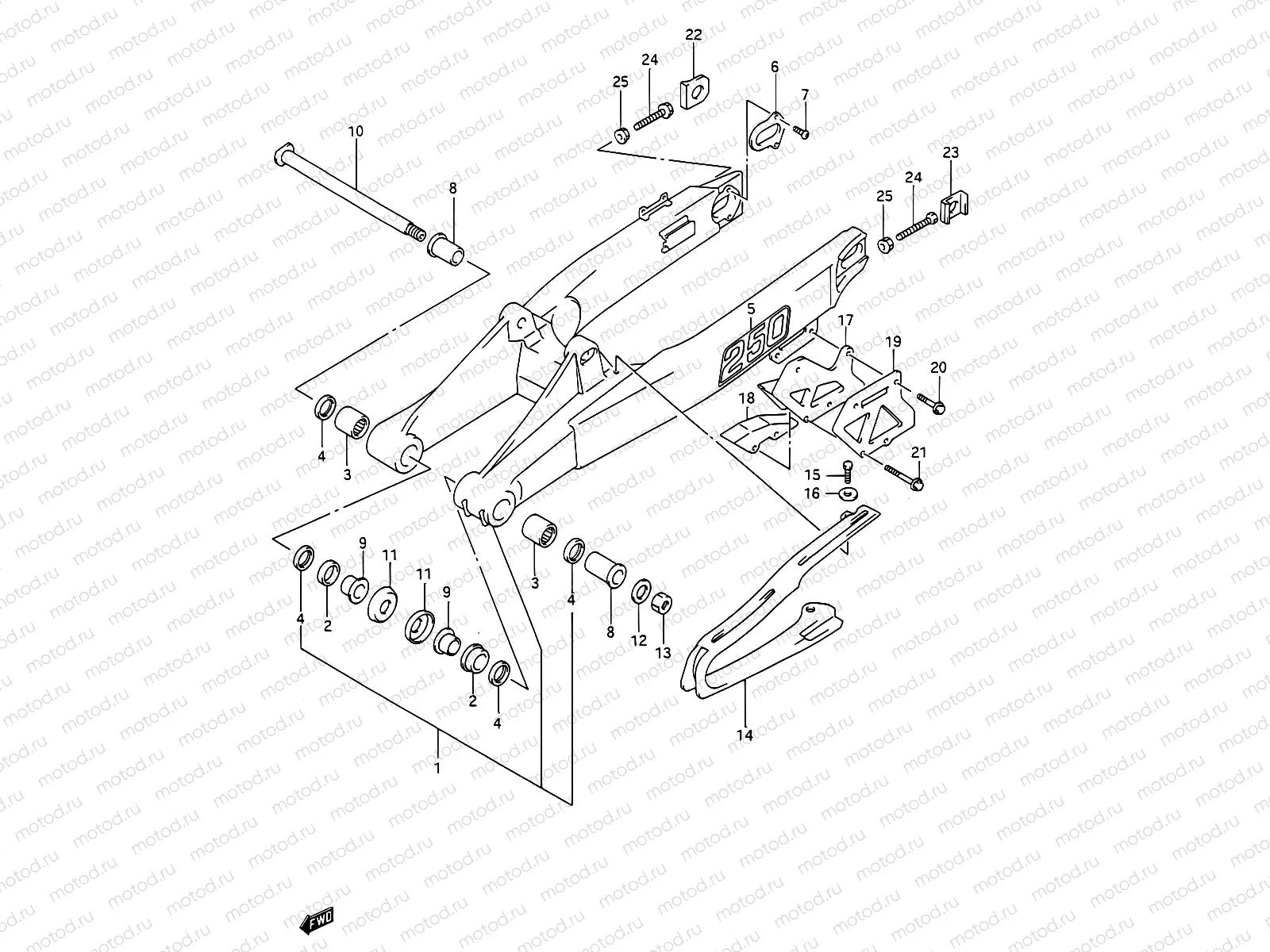

31A - REAR SWINGING ARM (MODEL M)

31A - REAR SWINGING ARM (MODEL M)

Например: 61000-28C22

1

61000-28C22

2

61261-28C00

BUSHING,SWGARM PIVOT

5 045 ₽/шт

3

09263-22017

BEARING(22X29X30)

1 308 ₽/шт

4

09285-22006

Seal,oil

226 ₽/шт

5

68381-28C10-12R

EMBLEM,SWINGINGARM

3 655 ₽/шт

6

61128-27C10

.plate, inner

7

09125-05072-XC0

SCREW(5X8)

1 370 ₽/шт

8

61251-05D00

SPACER,RR SWGARM PIVOT

3 882 ₽/шт

9

61252-28C00

SPACER,SWGARM PIVOT INNER

3 400 ₽/шт

10

61211-28C00

SHAFT,RR SWINGINGARM PIVOT

5 709 ₽/шт

11

61262-28C11

over,dust

617 ₽/шт

12

08322-01167

Шайба

85 ₽/шт

13

09159-16007

ШАЙБА

7 740 ₽/шт

14

61273-27C01

BUFFER,CHAIN TOUCH DEFENSE

7 905 ₽/шт

15

01547-06167

БОЛТ

82 ₽/шт

16

09169-06057

Шайба

215 ₽/шт

17

61341-27C20

Направляющая chain

3 226 ₽/шт

18

61348-27C20

DEFENSE,CHAIN GUIDE

4 488 ₽/шт

19

61342-27C20

PLAAT

20

09103-06143

Vis

21

09126-06013

Болт

2 420 ₽/шт

22

61445-27C01

Rondelle (RH)

23

61446-27C21

WASHER,CHAIN ADJUSTER,L

2 502 ₽/шт

24

09100-08287

BOLT(8X50)

162 ₽/шт

25

09159-08034

Гайка

162 ₽/шт
