Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1100 SUZUKI GSX1100F P (E02) SUZUKI 31 - FOOTREST

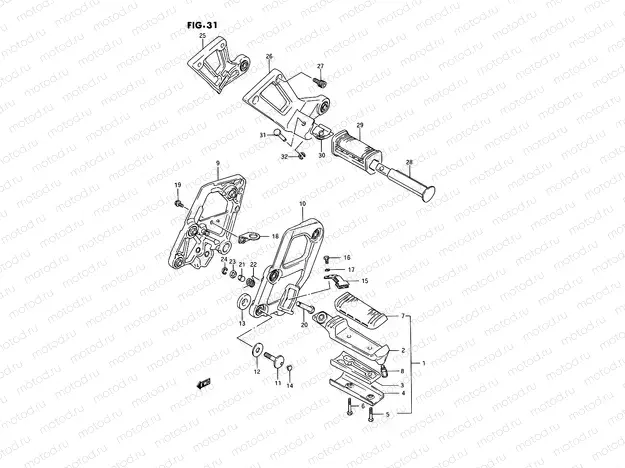

31 - FOOTREST

31 - FOOTREST

Например: 43501-48B02

1

43501-48B02

Repose pieds (FRONT RH)

1

43502-48B02

Repose pieds (FRONT LH)

2

43550-48B10

RUBBER,FR FOOTREST

3 656 ₽/шт

2

43510-48B51

Repose pieds (Front, RH)

2

43520-48B51

ar, front footrest lh

3

43533-48B00

ar,front footr

3

43533-00A00

Bar,fr.footrest

4

43534-48B00

COVER,FR FOOTREST BAR,R

938 ₽/шт

4

43534-00A00

KAP,VOETSTEUN

5

02112-05257

Винт 5X25

82 ₽/шт

6

02112-0530A

Болт

81 ₽/шт

7

43550-31300

RUBBER,FOOTREST

1 736 ₽/шт

7

43550-48B10

RUBBER,FR FOOTREST

3 656 ₽/шт

8

43576-48B02

OLT BANK SENSOR

420 ₽/шт

9

43510-48B12-13L

rkt comp r

10

43520-48B12-13L

racketfootrest

11

09106-08147

БОЛТ

258 ₽/шт

12

08322-01087

Шайба

81 ₽/шт

13

09161-12003

Шайба

1 960 ₽/шт

14

09250-06016

Cap,muf Sprt Bolt

102 ₽/шт

15

43570-43400

Cushion,fr foot

16

01500-0510B

Болт

85 ₽/шт

17

08321-0105A

Пластина замка

81 ₽/шт

18

43560-48B00

STEUN

19

09139-05033

Болт

113 ₽/шт

20

09208-08005

Pin

21

09306-08013

Entretoise

22

09448-14030

Spring

22

09448-14031

Spring (LH)

23

09181-08139

SHIM ( 8.8X14X1.0 )

162 ₽/шт

24

08332-1106B

СТОПОРНОЕ КОЛЬЦО

102 ₽/шт

25

43810-48B11-13L

racket,muffler

26

43820-48B11-13L

racket,muffler

27

07130-08207

Болт

2 070 ₽/шт

28

43610-48B11

ar,pill.ftr.,r

28

43620-48B11

ar,pill.ftr.,l

29

43612-49402

Rubber

30

43570-48B01

Cushion,fr foot

31

09208-08009

Pin

32

08332-1106B

СТОПОРНОЕ КОЛЬЦО

102 ₽/шт
