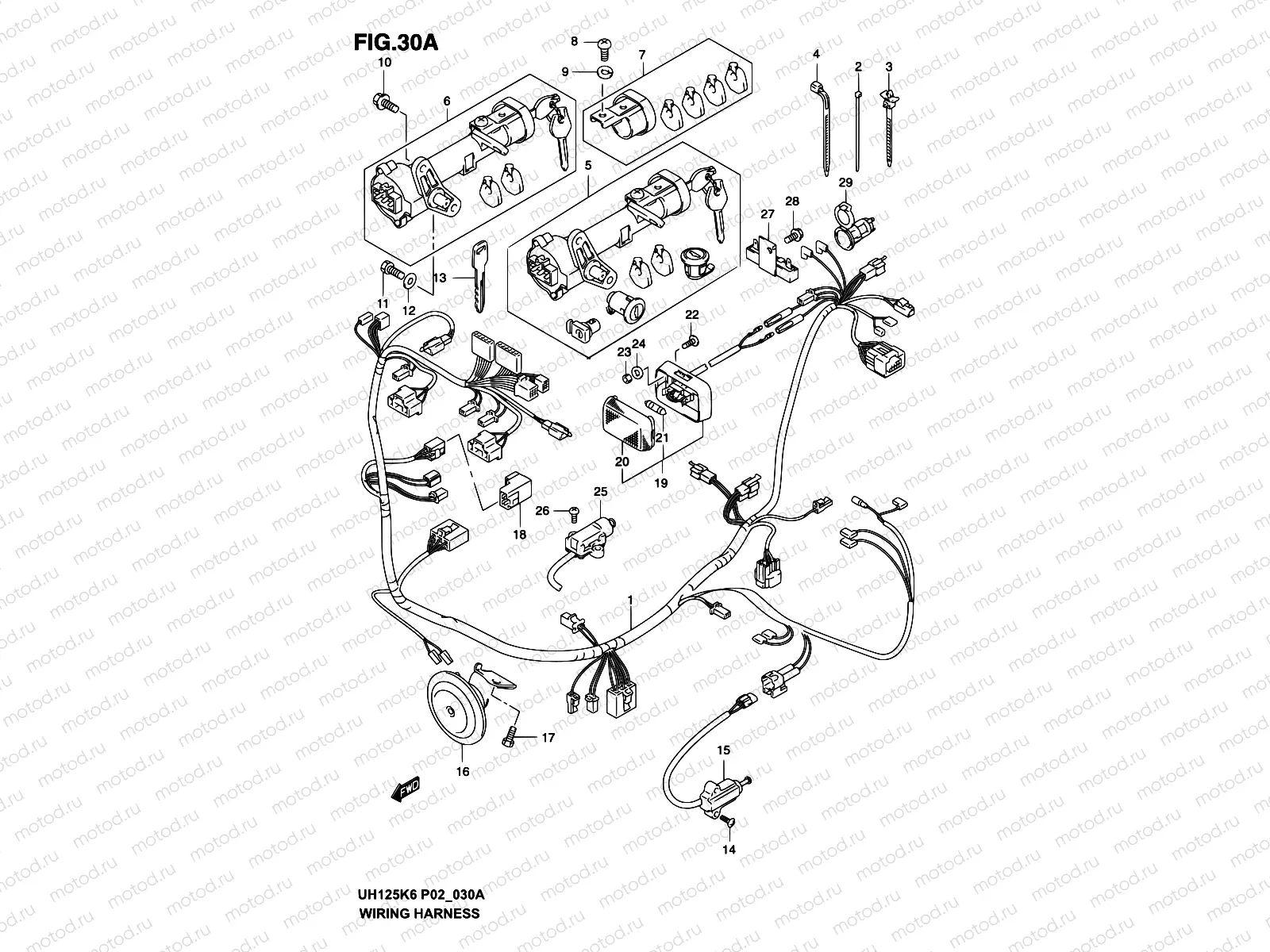

30A - WIRING HARNESS (MODEL K4/K5/K6)

30A - WIRING HARNESS (MODEL K4/K5/K6)

Например: 36610-07E20

1

36610-07E20

HARNESS. WIRING

2

D9425-00975

Clamp

3

09407-11402

КОЛЬЦО

186 ₽/шт

4

D9425-00975

Clamp

4

D9448-02875

Collier

4

D9477-02135

CLAMP (L:200)

4

D9477-02995

CLAMP (L:290)

5

37011-49F00

Lock set uh125

6

37100-49F00

Lock ssteering

7

37155-49F00

Shutter

8

D2116-05085

Vis

9

08321-0105A

Пластина замка

81 ₽/шт

10

09139-06048

SCREW(6X20)

1 060 ₽/шт

11

D1507-0620A

Bolt, gear shift

34 ₽/шт

12

08322-0106A

Шайба

81 ₽/шт

13

37146-14F00

KEY,BLANK(TYPE:C)

1 079 ₽/шт

14

02112-0620A

Болт

85 ₽/шт

15

37840-49F01

Switch Assy,side Stand

5 904 ₽/шт

16

38500-07E10

HORN ASSY

17

01550-0812B

Болт

97 ₽/шт

18

38740-26E01

Relay Assy,fuel Pump

2 287 ₽/шт

19

36210-49F00

LAMP ASSY,TRUNK BOX

20

36212-79001

Линза

2 989 ₽/шт

21

09471-12073-LCP

BULB 12V.5W AN650

22

D2116-04125

Vis

23

D8310-00045

Nut

24

D8322-01045

Rondelle

25

37980-14F00

SWITCH ASSY,TRUNK BOX LAMP

4 966 ₽/шт

26

D2116-0516B

Vis

27

36510-49F00

RESISTOR ASSY

28

02112-0616A

Болт

81 ₽/шт

29

39410-49F00-P4Z

TERMINAL,POWER SOURCE

2 522 ₽/шт
