Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI RG 50 Gamma SUZUKI RG50 J Gamma SUZUKI 30A - SEAT (MODEL J)

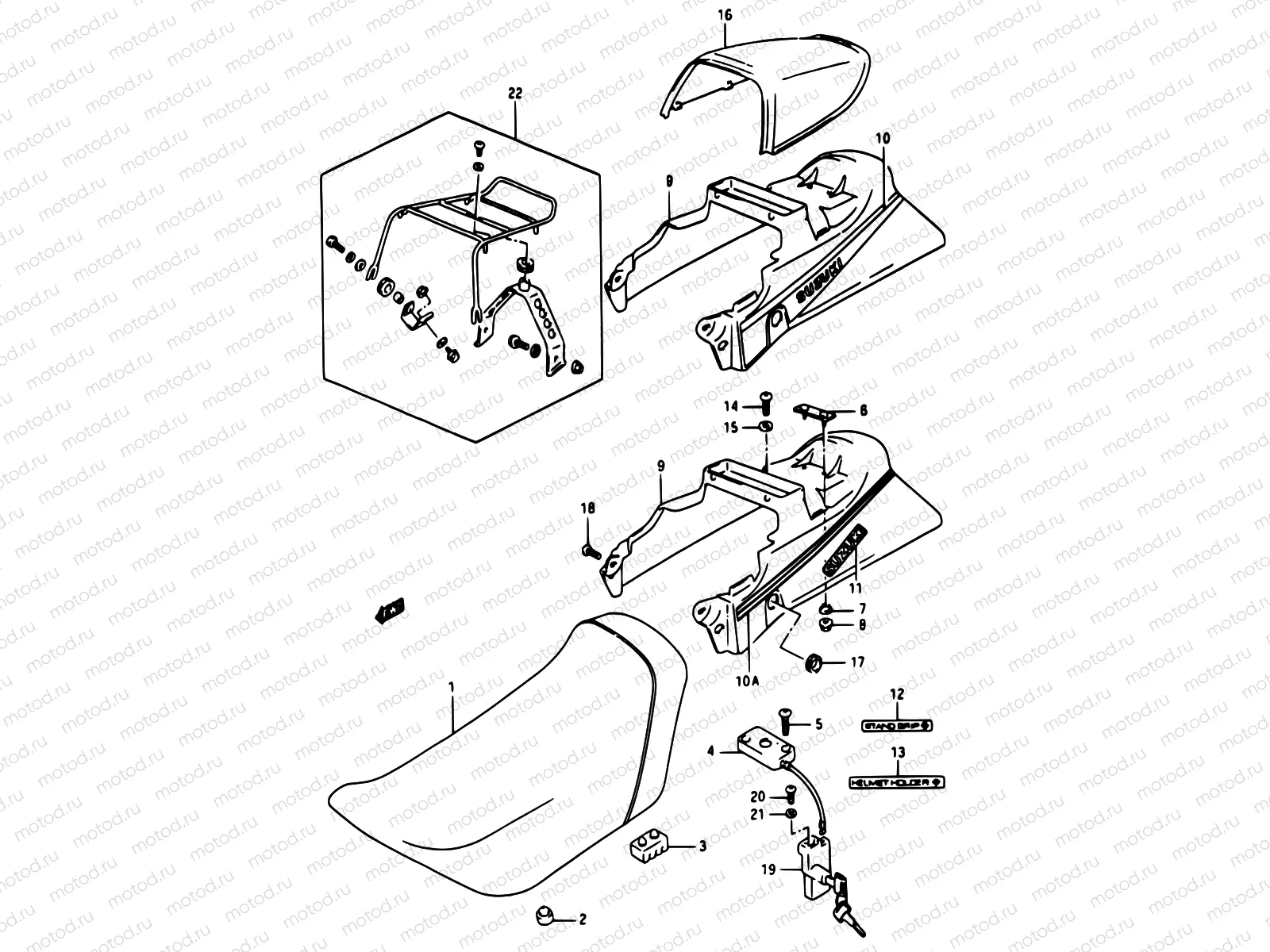

30A - SEAT (MODEL J)

30A - SEAT (MODEL J)

Например: 45100-04700-4UZ

1

45100-04700-4UZ

Seat assy (blue)

1

45100-04700-4NJ

Seat assy (black)

2

09321-10011

САЙЛЕНТБЛОК

162 ₽/шт

3

45149-45330

CUSHION,SUPPORT(50X25X32)

485 ₽/шт

4

45220-04700

Bracket, seat support rear

5

02122-0625B

Болт

1 090 ₽/шт

6

45126-04700

Bracket, seat

7

09169-06010

WASHER

211 ₽/шт

8

08319-3106B

Гайка

1 490 ₽/шт

9

45511-04701-019

Cover, seat tail (black)

9

45511-04701-30H

Cover, seat tail (white)

10

68160-04760-9PL

Tape set, seat tail cover

10

68160-04740-7JT

ape set, seat tail cover

11

68271-43400-07G

Emblem (red)

12

68367-04720

Label,age, 6

12

68367-04700

Label, stand grip (black)

13

68367-04730

Label, helmet holder (white)

13

68367-04710

Label, helmet holder (black)

14

02142-0620B

Болт

1 060 ₽/шт

15

09160-06109

Шайба

85 ₽/шт

16

45551-04710-14C

Box, seat tail (red)

16

45551-04710-30H

Box, seat tail (white)

17

45522-04700

Damper

18

02142-06107

Болт

85 ₽/шт

18

02142-0610B

Винт держатель

85 ₽/шт

19

95700-04700-KEY

Lock assy, seat

20

02112-05127

Болт

81 ₽/шт

21

08321-0105A

Пластина замка

81 ₽/шт

22

46300-04830

Carrier set, rear
