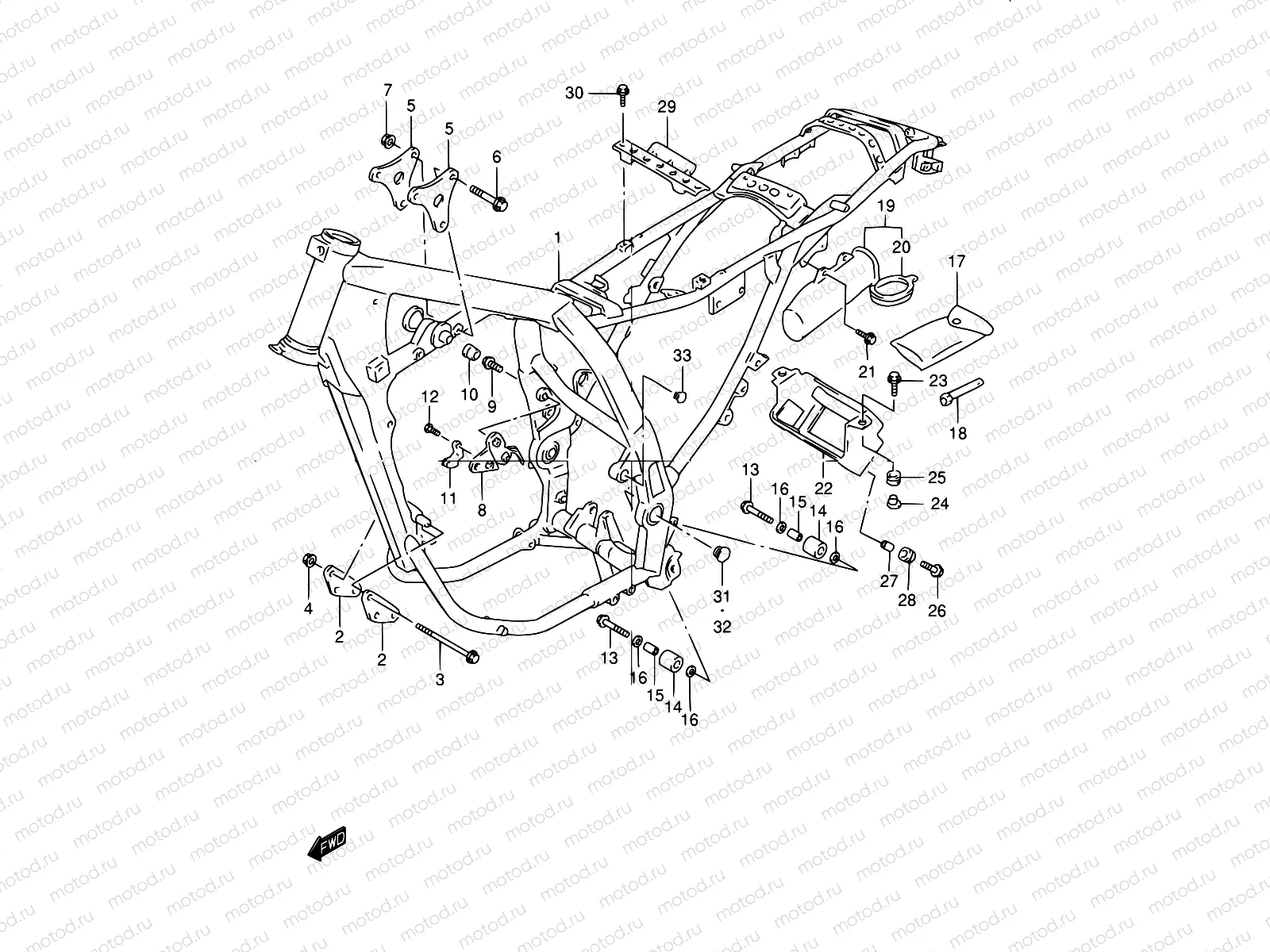

30A - FRAME (MODEL K2/K3/K4/K5)

30A - FRAME (MODEL K2/K3/K4/K5)
Например: 41100-32E30-YU8
1
41100-32E30-YU8
Frame (gray)
1
41100-32E10-17U
Frame (gray)
1
41100-32E10-YU8
Frame (gray)
2
41911-32E00
PLATE,ENG MTG FR
1 337 ₽/шт
3
09103-08139
Болт
4 300 ₽/шт
4
08319-3108A-000
Гайка
178 ₽/шт
5
41991-32E00
PLATE,ENG MTG UPR
1 806 ₽/шт
6
09103-08339
BOLT(8X55)
194 ₽/шт
7
08319-3108A-000
Гайка
178 ₽/шт
8
41930-32E00-019
PLATE,ENG MTG RR,R
1 748 ₽/шт
9
01550-0820A
БОЛТ
102 ₽/шт
10
09250-20012
PLUG(OD:22)
211 ₽/шт
11
43251-32E00
BRACKET,STOP SWITCH
805 ₽/шт
12
02162-0616B
Болт
85 ₽/шт
13
09103-08178
Болт
2 740 ₽/шт
14
43911-13E00
ROLLER,CHAIN CONTROL UPR
1 380 ₽/шт
15
09180-08156
Кольцо/шайба
272 ₽/шт
16
08211-08201
Шайба
1 250 ₽/шт
17
09800-21078
Tool assy
18
09816-00100
SPANNER,BOX(16)
782 ₽/шт
19
41550-32E00
HOLDER,TOOL
2 805 ₽/шт
20
41552-37210
КРЫШКА ОТСЕКА ИНСТРУМЕНТОВ
969 ₽/шт
21
09116-06006
BOLT(6X16)
81 ₽/шт
22
41540-32E00
HOLDER,BATTERY
6 373 ₽/шт
23
09116-06167
БОЛТ
145 ₽/шт
24
09169-06065
Шайба
2 150 ₽/шт
25
09320-08510
Втулка резиновая (8.5X20X8)
194 ₽/шт
26
09116-06168
БОЛТ
1 520 ₽/шт
27
09180-06038
ВТУЛКА
1 020 ₽/шт
28
09320-08510
Втулка резиновая (8.5X20X8)
194 ₽/шт
29
41561-32E00
PLATE,BATTERY FITING
1 173 ₽/шт
30
01550-0610B
Болт
85 ₽/шт
31
43585-32E00
PLUG,FRAME PIVOR,R
323 ₽/шт
32
43595-32E00
PLUG,FRAME PIVOR,L
355 ₽/шт
33
43586-32E00
PLUG,FRAME BOSS
206 ₽/шт
