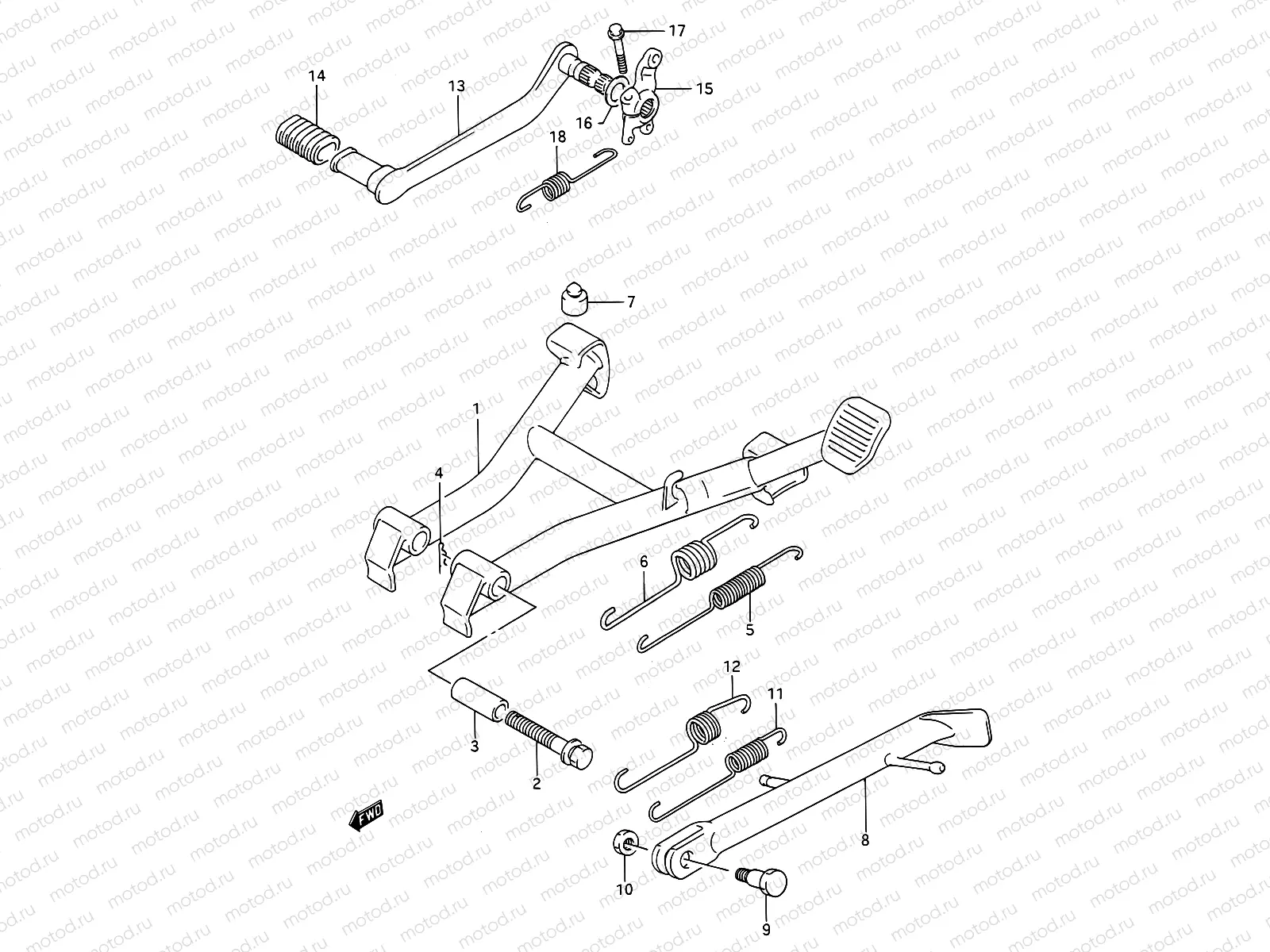

30 - STAND - REAR BRAKE

30 - STAND - REAR BRAKE
Например: 42100-01D00
1
42100-01D00
STAND,CTR
14 936 ₽/шт
2
09117-10029
BOLT(10X63)
3 170 ₽/шт
3
09180-10040
SPACER(10X16X38.8)
1 600 ₽/шт
4
09385-10005
Крепёж
900 ₽/шт
5
09443-14059
Пружина
6 450 ₽/шт
6
09443-22013-000
Пружина
6 060 ₽/шт
7
09321-10017
САЙЛЕНТБЛОК
4 220 ₽/шт
8
42310-01D00-019
Stand comp,prop
9
09111-10047
Болт
187 ₽/шт
10
08310-00107
Гайка
85 ₽/шт
11
09443-15046
SPRING
4 890 ₽/шт
12
09443-22017
SPRING
4 570 ₽/шт
13
43110-01D12
Педаль тормоза
6 287 ₽/шт
14
25652-49300
Резина
355 ₽/шт
15
43121-01D00
Arm,brake rod
16
43212-04A00
WASHER,BRAKE PEDAL
137 ₽/шт
17
01550-0625A
Болт
102 ₽/шт
18
09443-13028
SPRING
3 790 ₽/шт
