Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DL 650 V-Strom SUZUKI DL650A L2 V-Strom (E03,E28,E33) SUZUKI (VIN: JS1C7111) 30 - SPEEDOMETER (DL650AL2 E33)

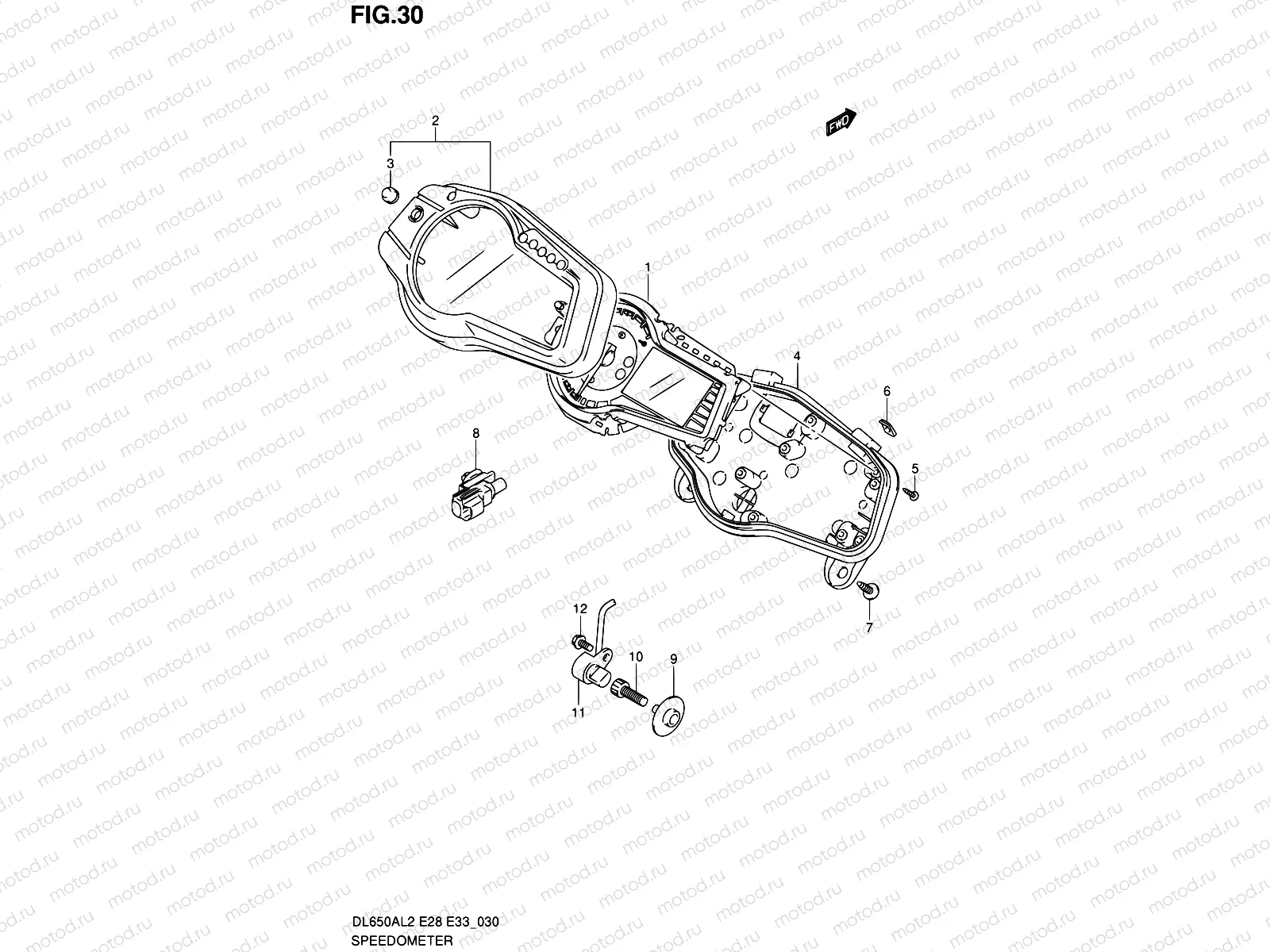

30 - SPEEDOMETER (DL650AL2 E33)

30 - SPEEDOMETER (DL650AL2 E33)

Например: 34120-11J11

1

34120-11J11

Speedometer

2

34150-11J00

CASE ASSY,UPR

10 166 ₽/шт

3

34124-38G00

RUBBER,SWITCH

629 ₽/шт

4

34111-11J00

CASE ASSY,LWR

4 927 ₽/шт

5

09132-03008

SCREW,3X16

82 ₽/шт

6

09148-05052

Гайка

129 ₽/шт

7

03541-0516A

Болт

81 ₽/шт

8

95643-58J00

ДАТЧИК ТЕМПЕРАТУРЫ ОКРУЖАЮЩЕЙ СРЕДЫ

5 834 ₽/шт

9

34981-38G01

РОТОР СПИДОМЕТРА

1 343 ₽/шт

10

07130-0825B

Болт

129 ₽/шт

11

34990-35F00

Сенсор скорости

7 833 ₽/шт

12

07120-0512B

БОЛТ

102 ₽/шт
