Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI UH 200 Burgman SUZUKI UH200A L4 Burgman (P03,P28,P33) SUZUKI 30 - REAR COMBINATION LAMP

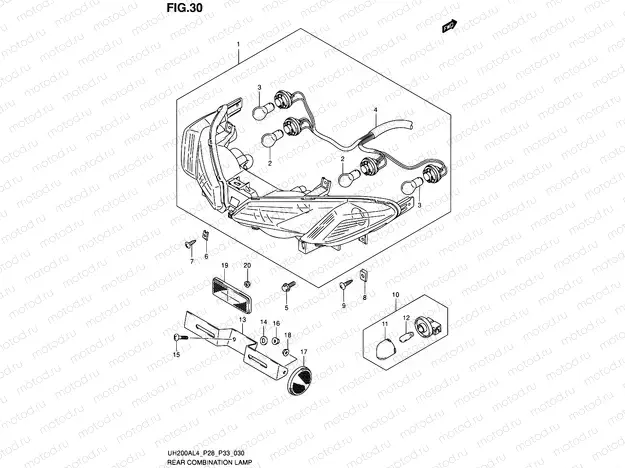

30 - REAR COMBINATION LAMP

30 - REAR COMBINATION LAMP

Например: 35710-12J01

1

35710-12J01

Lamp Assy,rear Comb

17 850 ₽/шт

2

40503-00838-069

P21/5w,5w, bay1 (12V 21/5W BAY15d)

3

40503-00891-477

Py21w,21w, bau1

4

35718-12J00

CORD ASSY

3 636 ₽/шт

5

35725-12J00

BOLT,REAR COMB

172 ₽/шт

6

35155-12J00

NUT,REAR COMB

196 ₽/шт

7

02142-0516B

Болт

85 ₽/шт

8

09148-05038

ГАЙКА

97 ₽/шт

9

03541-0516A

Болт

81 ₽/шт

10

35910-14F01

Фонарь подсветки номера

1 478 ₽/шт

11

35912-14F11

Линза

3 145 ₽/шт

12

09471-12216

ЛАМПА НАКАЛИВАНИЯ

459 ₽/шт

13

35970-22J00

REFLECTOR ASSY,REAR

2 405 ₽/шт

14

08316-1005A

Гайка

85 ₽/шт

15

35927-12J30

BRACKET,LICENSE PLATE

1 060 ₽/шт

16

09160-06019

Шайба

81 ₽/шт

17

02142-0616A

Болт

81 ₽/шт

18

08316-1006A

Гайка

85 ₽/шт

19

35970-14A20

REFLECTOR ASSY. REAR SIDE

954 ₽/шт

20

08316-1005A

Гайка

85 ₽/шт
