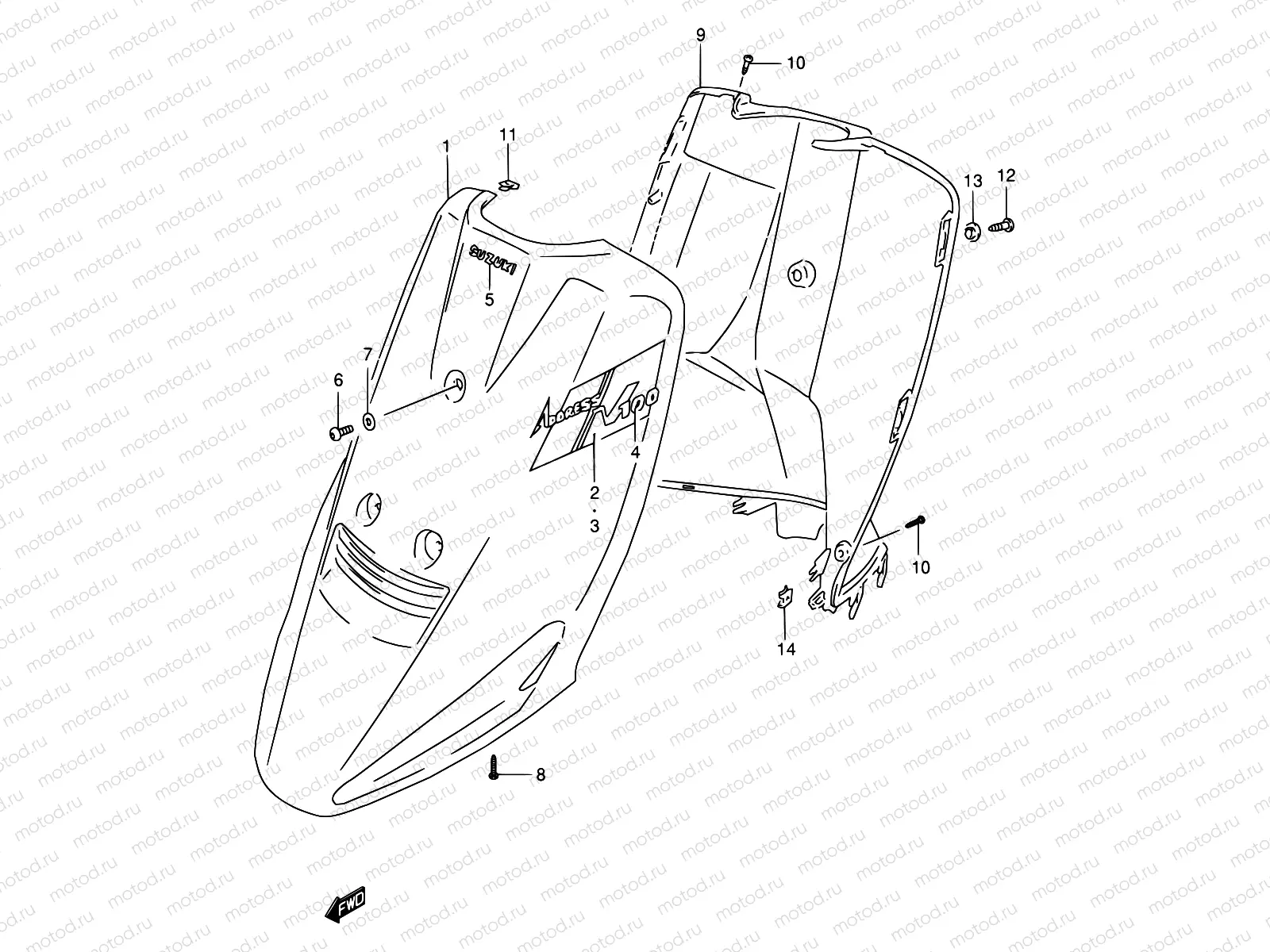

30 - LEG SHIELD (MODEL M/P)

30 - LEG SHIELD (MODEL M/P)

Например: 48111-40D00-10V

1

48111-40D00-10V

Shield, leg front (white)

1

48111-40D00-17U

Shield, leg front (gray)

1

48111-40D00-13Z

Shield, leg front (black)

1

48111-40D00-33J

Shield, leg front (black)

1

48111-40D00-19A

Shield, leg front (red)

3

68641-41D10-1TP

EMBLEM,LEG SHIELD

2 033 ₽/шт

3

68641-41D10-1TN

EMBLEM,LEG SHIELD

2 033 ₽/шт

3

68641-41D10-1TM

EMBLEM,LEG SHIELD

2 033 ₽/шт

3

68641-41D10-Y88

Emblem, leg shield

5

68166-12950-742

EMBLEM

356 ₽/шт

5

68166-12950-17U

Emblem (gray)

5

68166-12950-13L

Emblem (silver)

6

02142-0616A

Болт

81 ₽/шт

7

09169-06071

Шайба

97 ₽/шт

8

03241-0516A

Винт

81 ₽/шт

9

92111-40D00-291

TAMPA

9

92111-40D00-1GK

Cover, leg shield (gray)

10

03541-0416A

Болт

81 ₽/шт

11

09148-04024

Гайка

97 ₽/шт

12

02142-0616A

Болт

81 ₽/шт

13

09169-06071

Шайба

97 ₽/шт

14

09148-05020

Гайка

97 ₽/шт
