Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI GN 125 SUZUKI GN125 V SUZUKI (VIN: NF41A) 30 - FUEL TANK (MODEL V/W)

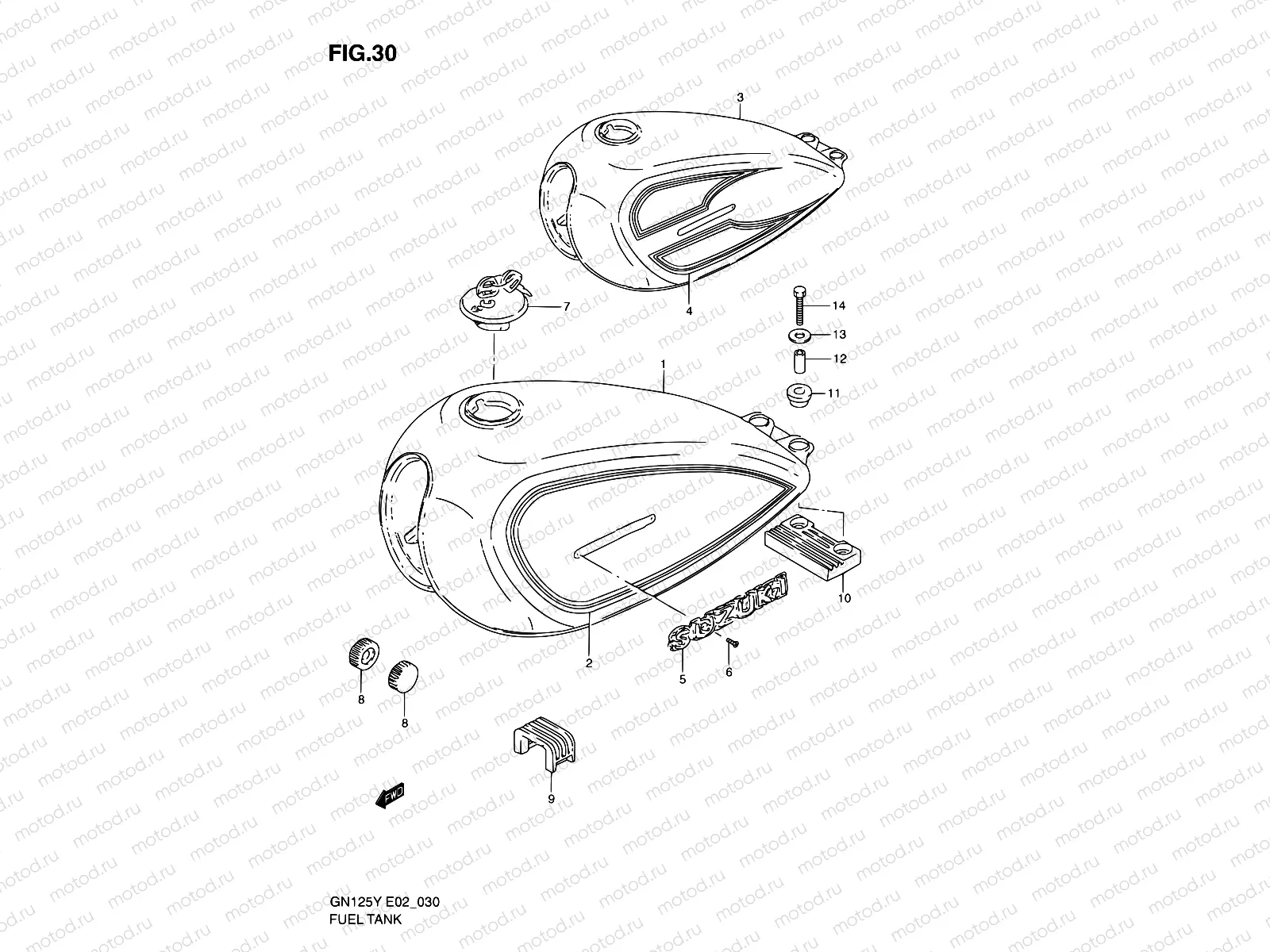

30 - FUEL TANK (MODEL V/W)

30 - FUEL TANK (MODEL V/W)

Например: 44100-38390-Y0R

1

44100-38390-Y0R

Fuel tank (Red)

1

44100-38390-33J

TANK ASSY,FUEL

1

44100-38390-19A

TANK ASSY,FUEL(RED)

47 124 ₽/шт

2

68110-38320-G8F

Autocollant (Fuel tank)

2

68110-38320-G31

TAPE SET,FUEL TANK

6 530 ₽/шт

2

68110-38320-G29

TAPE SET,FUEL TANK

6 530 ₽/шт

3

44100-383H0-19A

3

44100-383H0-33J

3

44100-383H0-Y98

5

68111-37300

Эмблема топливного бака

1 838 ₽/шт

6

02122-0306B

Болт

85 ₽/шт

7

44200-30832

New Genuine Part

9 775 ₽/шт

8

09329-10016

САЙЛЕНТБЛОК

221 ₽/шт

9

44541-05300

Валик топливного бака

610 ₽/шт

10

44542-38300

Валик топливного бака

653 ₽/шт

11

09320-10022

Валик топливного бака

1 520 ₽/шт

12

09180-06067

SPACER(6.5X10.5X22.5)

1 370 ₽/шт

13

09160-06054

Шайба

129 ₽/шт

14

64455-07L00

Болт

919 ₽/шт
