Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI RMX 50 SUZUKI RMX50 T SUZUKI 30 - FRONT DAMPER (MODEL T, MODEL V:P29)

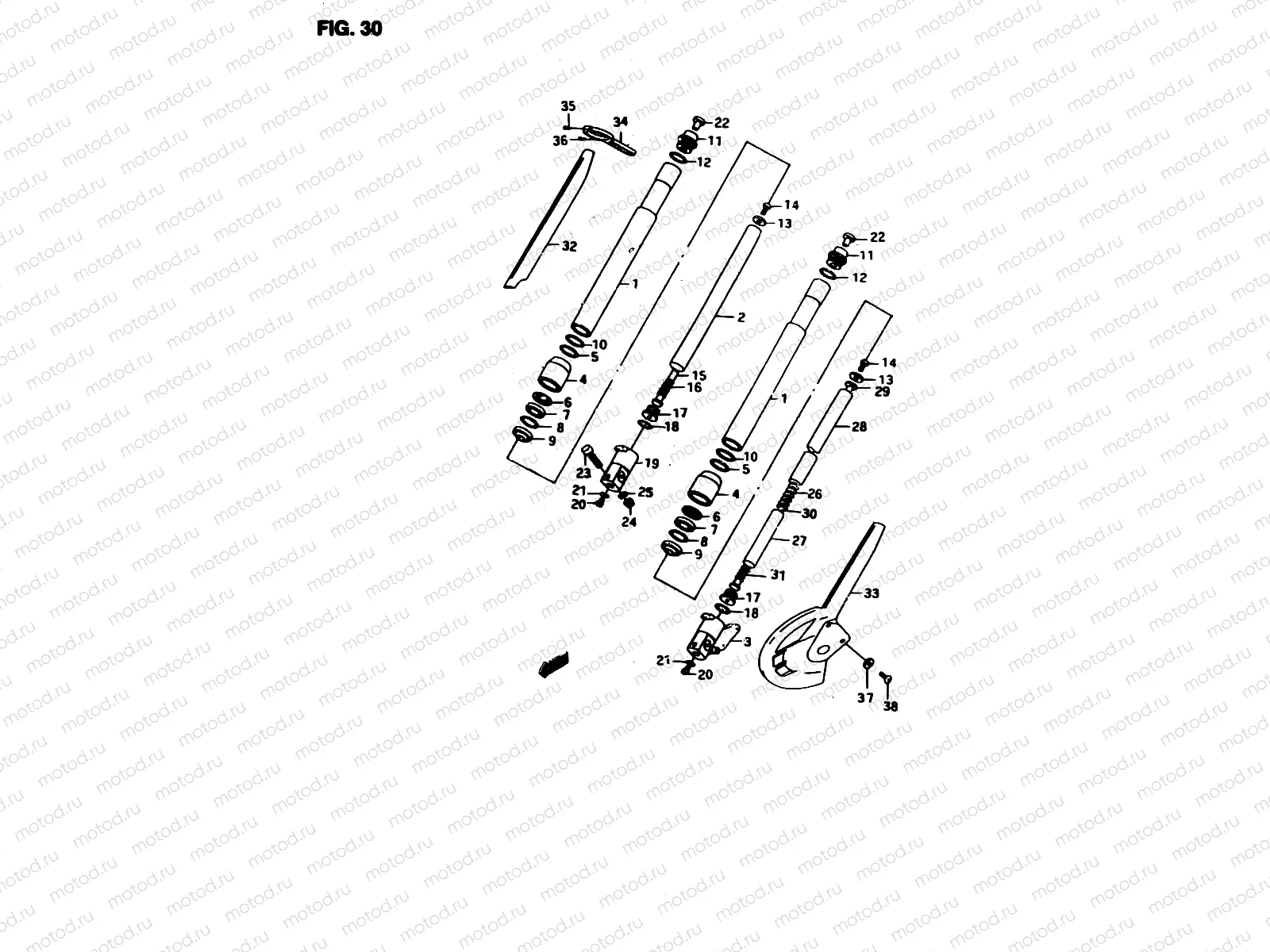

30 - FRONT DAMPER (MODEL T, MODEL V:P29)

30 - FRONT DAMPER (MODEL T, MODEL V:P29)

Например: 51103-03E10

0

51103-03E10

DAMPER ASSY RH

0

51104-03E00

DAMPER ASSY LH

1

51210-03E00

OUTER TUBE

2

51211-00E20

TUBE INNER RH

3

51104-00E20

BRACKET

4

51212-00E20

.case, seal

5

51213-00E20

O-Ring

6

51214-00E20

.bush, guide

7

51153-05210

Сальник

1 118 ₽/шт

8

51215-00E20

.o ring

9

51216-00E20

.plate

10

51217-00E20

.o ring

11

51179-00E20

.bolt, fork

12

51181-00E20

O-Ring

13

51313-00E20

.washer

14

D7100-10258

Vis

15

51110-03E00

.cylinder, rh

16

51177-00E20

.spring

17

51178-00E20

Vis

18

51179-00E20

.ring

19

51103-00E20

BRACKET

20

07130-0825B

Болт

129 ₽/шт

21

51105-00E20

Gasket

22

51189-00E00

Cap

23

09100-08E18

Vis

24

D8311-60088

Nut

25

D8322-11088

Rondelle

26

51171-03E00

MAIN SPRING

27

51110-03E00

.cylinder

28

51310-00E20

.tub, inner lh

29

51312-00E20

.guide, spring

30

51116-03E00

.cylinder

31

51177-03E00

Spring

32

51201-03E00-30H

Protector, rh

33

51202-03E00-30H

Protector, lh

34

51629-03E00-30H

Guide, hose

35

03541-0416A

Болт

81 ₽/шт

36

D3111-0E195

Vis

37

08322-0106A

Шайба

81 ₽/шт

38

02112-3612A

Болт

1 250 ₽/шт
