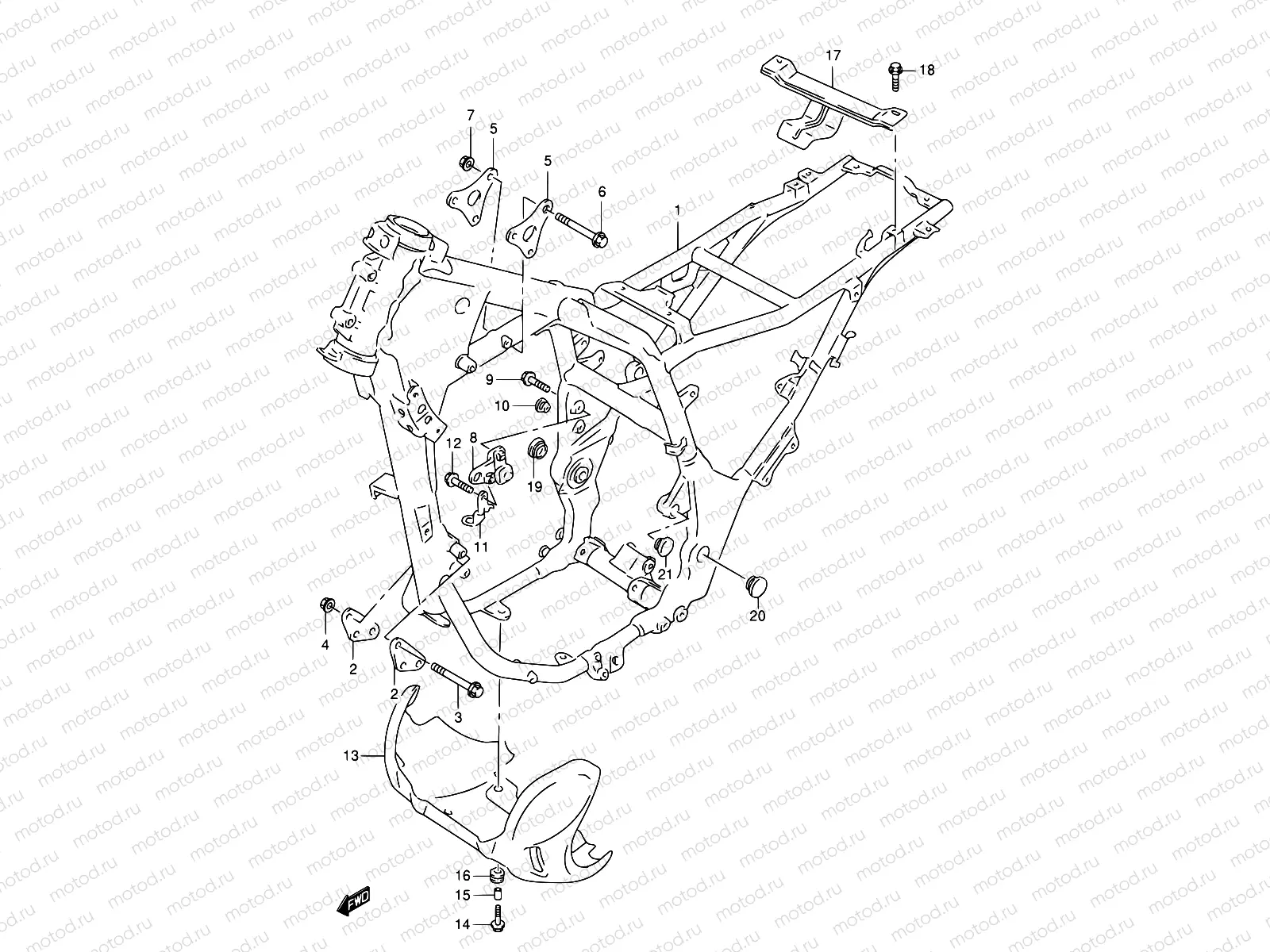

30 - FRAME

30 - FRAME

Например: 41100-04F00-24K

1

41100-04F00-24K

rame (charcoal)

1

41100-04F10-24K

RAME COMP

2

41911-04F00

PLATE,ENG MTG FR

821 ₽/шт

3

09103-08139

Болт

4 300 ₽/шт

4

08319-3108A-000

Гайка

178 ₽/шт

5

41991-04F00

PLATE,ENG MTG UPR

1 204 ₽/шт

6

09103-08339

BOLT(8X55)

194 ₽/шт

7

08319-3108A-000

Гайка

178 ₽/шт

8

41930-04F00

PLATE,ENG MTG RR,R

1 243 ₽/шт

9

09103-08254

Болт 8X20

1 680 ₽/шт

10

09250-20012

PLUG(OD:22)

211 ₽/шт

11

43251-32E00

BRACKET,STOP SWITCH

805 ₽/шт

12

02162-0616B

Болт

85 ₽/шт

13

42510-04F00

Protector,eng.

14

09116-06006

BOLT(6X16)

81 ₽/шт

15

09180-06259

Прокладка

1 640 ₽/шт

16

09320-08510

Втулка резиновая (8.5X20X8)

194 ₽/шт

17

41560-04F00

PLATE,BATT FITING

1 681 ₽/шт

18

01550-0616B

БОЛТ

81 ₽/шт

19

43585-04F01

Plug,frame pivo

20

43595-04F01

Plug,frame piv.

21

43586-32E00

PLUG,FRAME BOSS

206 ₽/шт
