Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VL 800 Intruder C800 / Boulevard C50 SUZUKI VL800UE K8 Intruder C800 / Boulevard C50 SUZUKI 3 - REAR CYLINDER HEAD (MODEL K6/K7/K8)

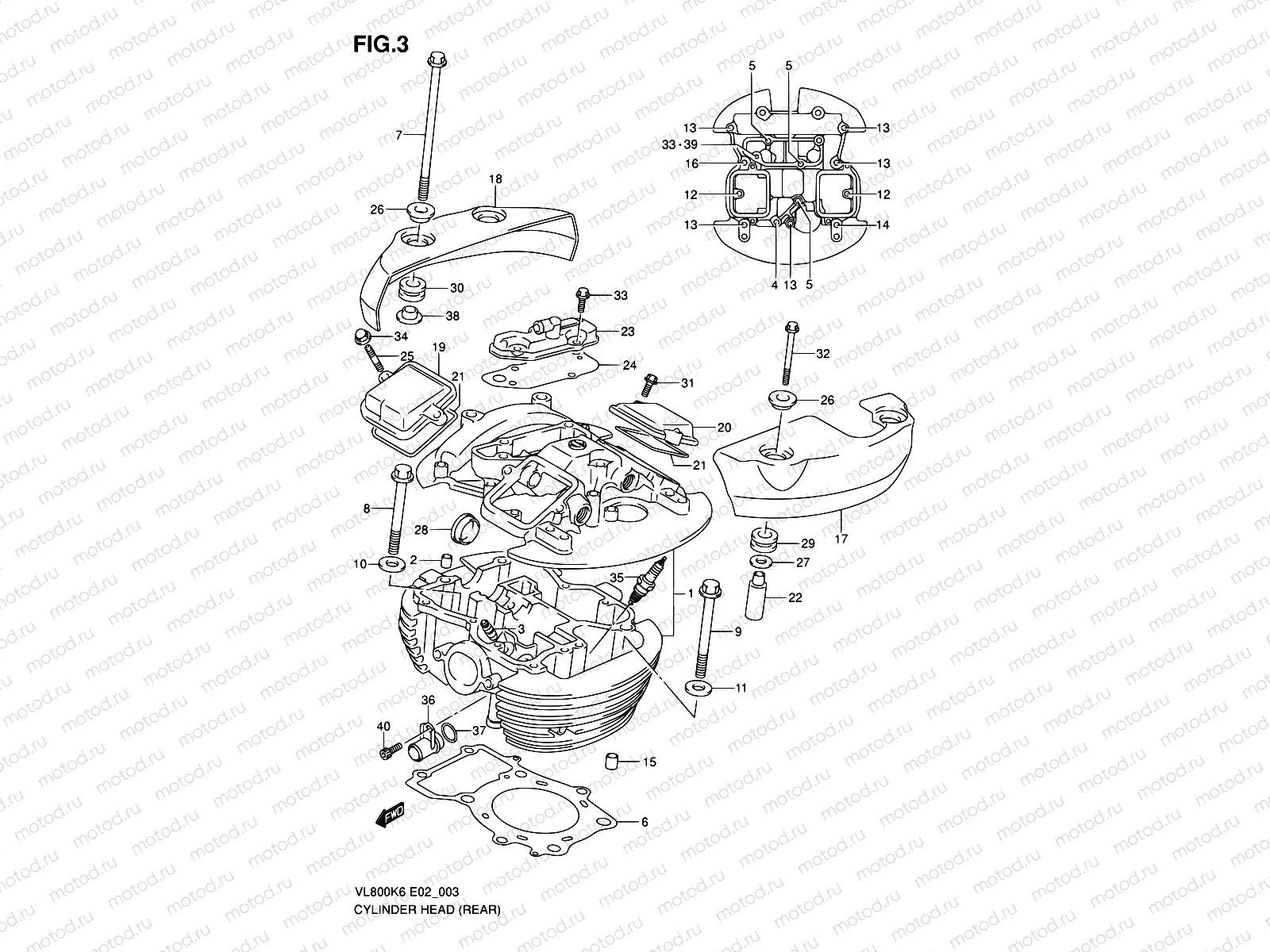

3 - REAR CYLINDER HEAD (MODEL K6/K7/K8)

3 - REAR CYLINDER HEAD (MODEL K6/K7/K8)

Например: 11103-41FB0

1

11103-41FB0

HEAD ASSY,CYLINDER RR

81 532 ₽/шт

2

09206-11004

PIN(8.4X11X14)

549 ₽/шт

3

11115-41F70

GUIDE,VALVE(OS:0.3)

1 785 ₽/шт

4

09103-06101

BOLT(6X50)

162 ₽/шт

5

09103-06102

BOLT(6X55)

170 ₽/шт

6

11142-41F00

GASKET,CYLINDER HEAD RR

3 634 ₽/шт

7

09103-08370

BOLT(8X250)

840 ₽/шт

8

09103-10133

BOLT(10X155)

678 ₽/шт

9

09103-10134

BOLT(10X165)

792 ₽/шт

10

09160-08130

Шайба

102 ₽/шт

11

09160-10039

Шайба

119 ₽/шт

12

01550-0625A

Болт

102 ₽/шт

13

01550-0630A

БОЛТ

102 ₽/шт

14

01550-0640A

Болт

1 410 ₽/шт

15

04211-13189

ШТИФТ

129 ₽/шт

16

07120-0630B

Болт

97 ₽/шт

17

11173-41FA0

CAP,CYLINDER HEAD COVER RR,L

8 915 ₽/шт

18

11174-41F00

CAP,CYLINDER HEAD COVER RR

8 915 ₽/шт

19

11175-38A11

CAP,INSPECTION INTAKE

1 150 ₽/шт

20

11176-38A11

CAP,INSPECTION EXHAUST

1 150 ₽/шт

21

11177-38A00

ПРОКЛАДКА

289 ₽/шт

22

11179-10F10

SPACER,CYL HEAD COVER CAP NO.2

544 ₽/шт

23

11186-41FB0

COVER,BREATHER

1 239 ₽/шт

24

11187-41F20

ПРОКЛАДКА

408 ₽/шт

25

09108-06102

Шпилька

211 ₽/шт

26

09160-06084

Шайба 6.5X18X1

81 ₽/шт

27

09160-09016

Шайба

97 ₽/шт

28

09241-30004

ШЛАНГ

485 ₽/шт

29

09320-09016

РЕЗИНКА

162 ₽/шт

30

09320-13015

CUSHION

204 ₽/шт

31

01547-0620B

БОЛТ

81 ₽/шт

32

01547-06507

Болт крышки головки цилиндров №2

97 ₽/шт

33

01550-0620B

БОЛТ

81 ₽/шт

34

09103-06102

BOLT(6X55)

170 ₽/шт

35

09159-06093

NUT

129 ₽/шт

36

09482-00334

SPARK PLUG DPR8EA-9

727 ₽/шт

37

17891-41F10

UNION,CYL HEAD JOINT

938 ₽/шт

38

09280-16005

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

258 ₽/шт

39

09301-08007

Втулка

194 ₽/шт

40

09168-06023

ПРОКЛАДКА

162 ₽/шт

41

07130-0612B

Болт

1 840 ₽/шт
