Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSF 650 Bandit SUZUKI GSF650S K7 Bandit (E28) SUZUKI (VIN: JS1CJ111) 3 - CYLINDER HEAD

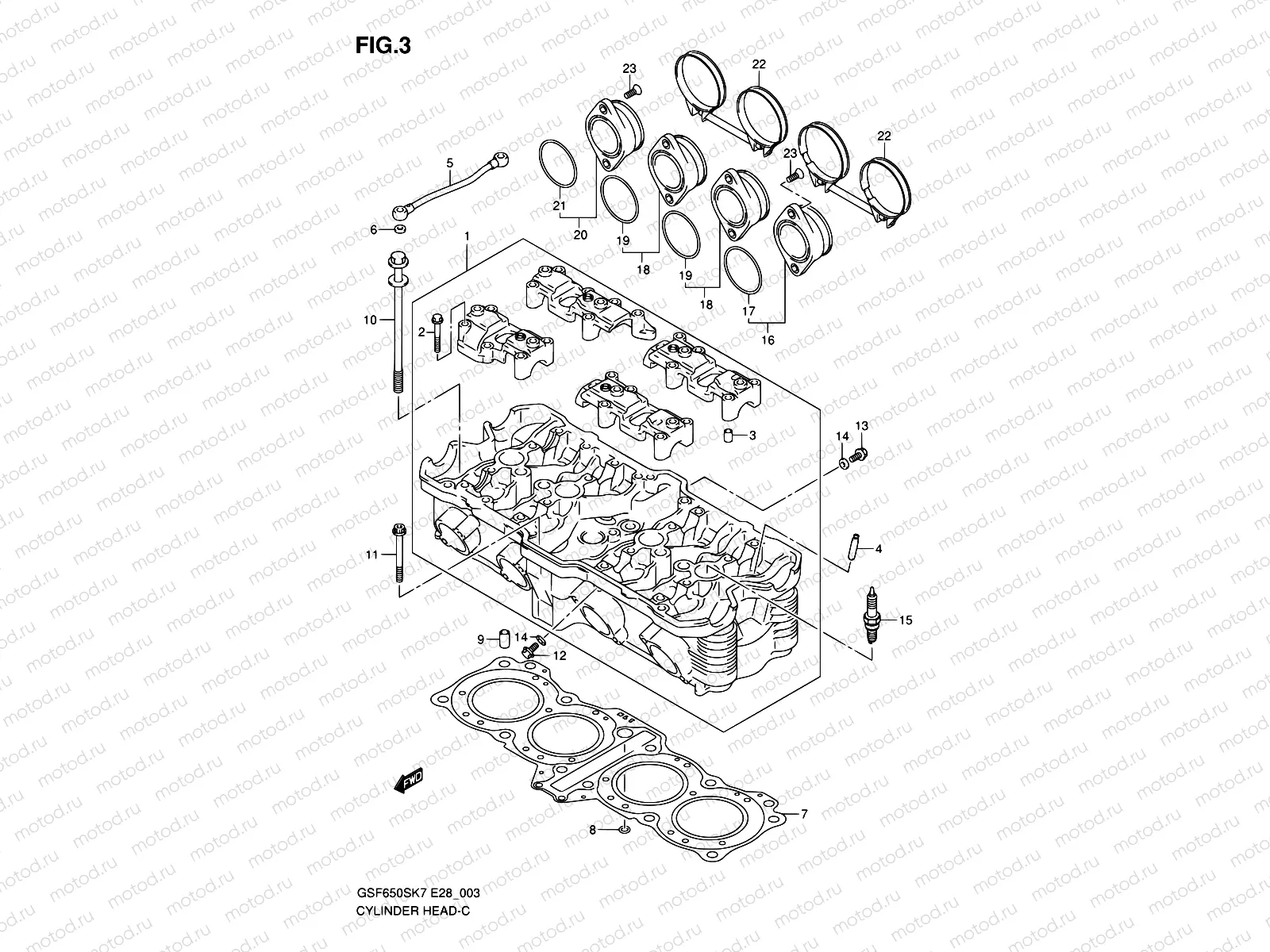

3 - CYLINDER HEAD

3 - CYLINDER HEAD

Например: 11100-17H00

1

11100-17H00

Cylinder head

2

09103-06293

BOLT(6X45)

1 520 ₽/шт

3

09206-08001

Стопор

170 ₽/шт

4

11115-17E70

Направляющая клапана

2 268 ₽/шт

5

11131-18H00

PIPE,CYLINDER HEAD OIL

3 773 ₽/шт

6

08322-0106B

Шайба

81 ₽/шт

7

11141-17H01

Прокладка головки цилиндров

14 228 ₽/шт

8

11143-32F00

O RING,HEAD GASKET

371 ₽/шт

9

04211-11169

PIN

113 ₽/шт

10

11117-18H00

BOLT,CYLINDER HEAD(L:175)

1 153 ₽/шт

11

07120-0665B

Болт

2 270 ₽/шт

12

01550-0612A

БОЛТ КУЗОВНОЙ, МЕТАЛЛ

81 ₽/шт

13

07120-0612B

БОЛТ

184 ₽/шт

14

09168-06023

ПРОКЛАДКА

162 ₽/шт

16

13101-17H00

PIPE ASSY,INTAKE NO.1

3 265 ₽/шт

17

09280-42003

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

355 ₽/шт

18

13102-17H00

PIPE ASSY,INTAKE NO.2

3 265 ₽/шт

19

09280-42003

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

355 ₽/шт

20

13104-17H00

PIPE ASSY,INTAKE NO.4

3 265 ₽/шт

21

09280-42003

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

355 ₽/шт

22

13170-18H10

CLAMP,INTAKE PIPE

1 822 ₽/шт

23

02122-0616B

Болт

85 ₽/шт
