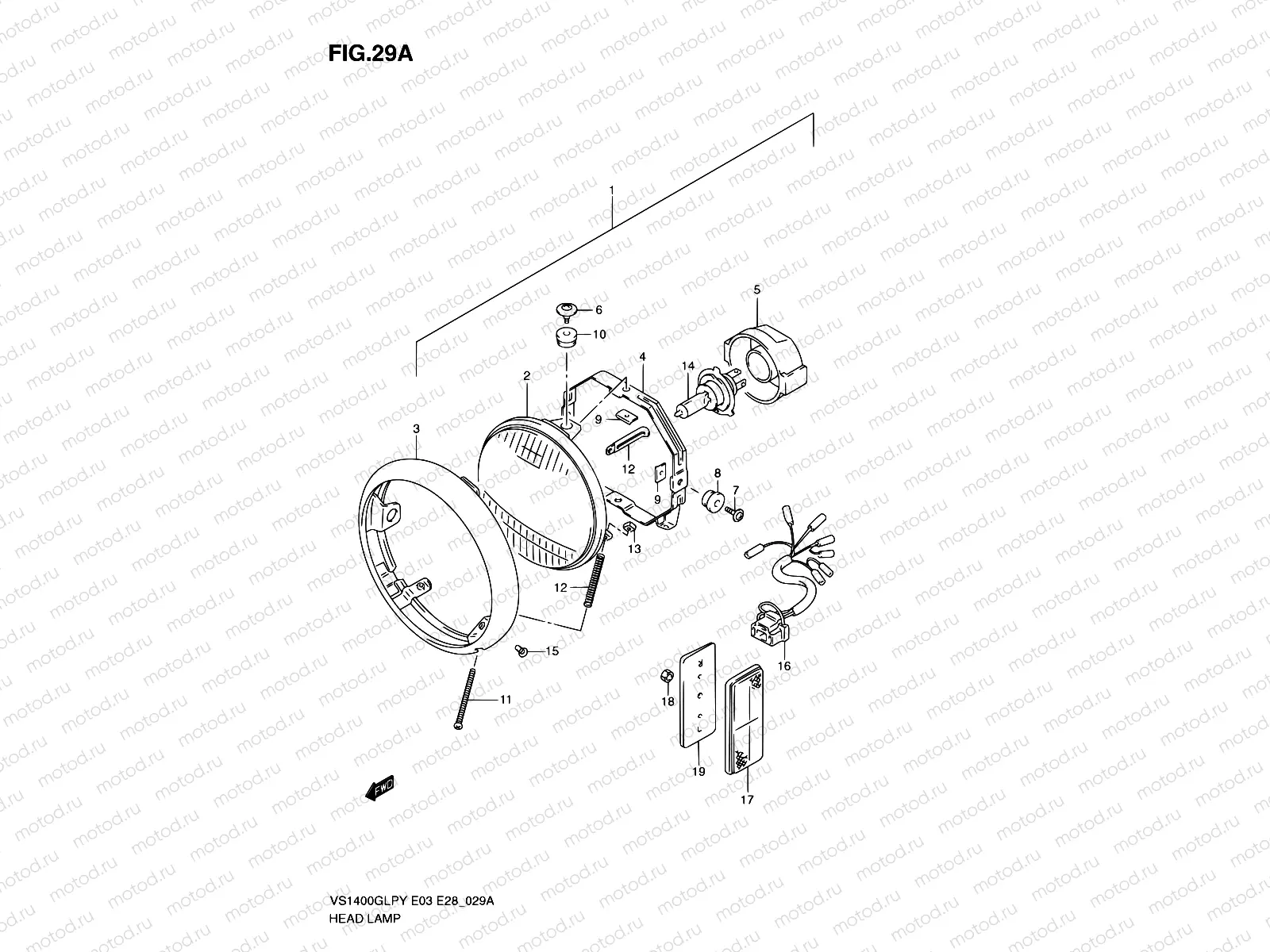

29A - HEADLAMP (MODEL K1/K2/K3)

29A - HEADLAMP (MODEL K1/K2/K3)
Например: 35100-38B60-999
1
35100-38B60-999
Headlamp assy
2
35121-38A60
UNIT,LAMP
14 115 ₽/шт
3
35111-38A60
RIM
5 742 ₽/шт
4
35130-38A00
RING,MOUNTING
3 553 ₽/шт
5
35173-13E10
COVER
1 239 ₽/шт
6
35136-38A60
Болт
207 ₽/шт
7
35136-38A00
Болт
207 ₽/шт
8
35139-45230
CUSHION
102 ₽/шт
9
35155-38A60
Гайка
207 ₽/шт
10
35139-38A60
CUSHION
207 ₽/шт
11
35151-38A00
Винт настройки
184 ₽/шт
12
35154-31300
Пружина
170 ₽/шт
13
35135-45600
Гайка
207 ₽/шт
14
K9206-91002
Bulb,12v 60/55w
15
09126-05003
Болт
179 ₽/шт
16
36853-38B10
WIRE,HEADLAMP LEAD
1 541 ₽/шт
17
35950-43431
REFLEX REFLECTOR,FR SIDE
1 343 ₽/шт
18
08310-0005B
Гайка
1 370 ₽/шт
19
35954-38B00
Кольцо/шайба
238 ₽/шт
