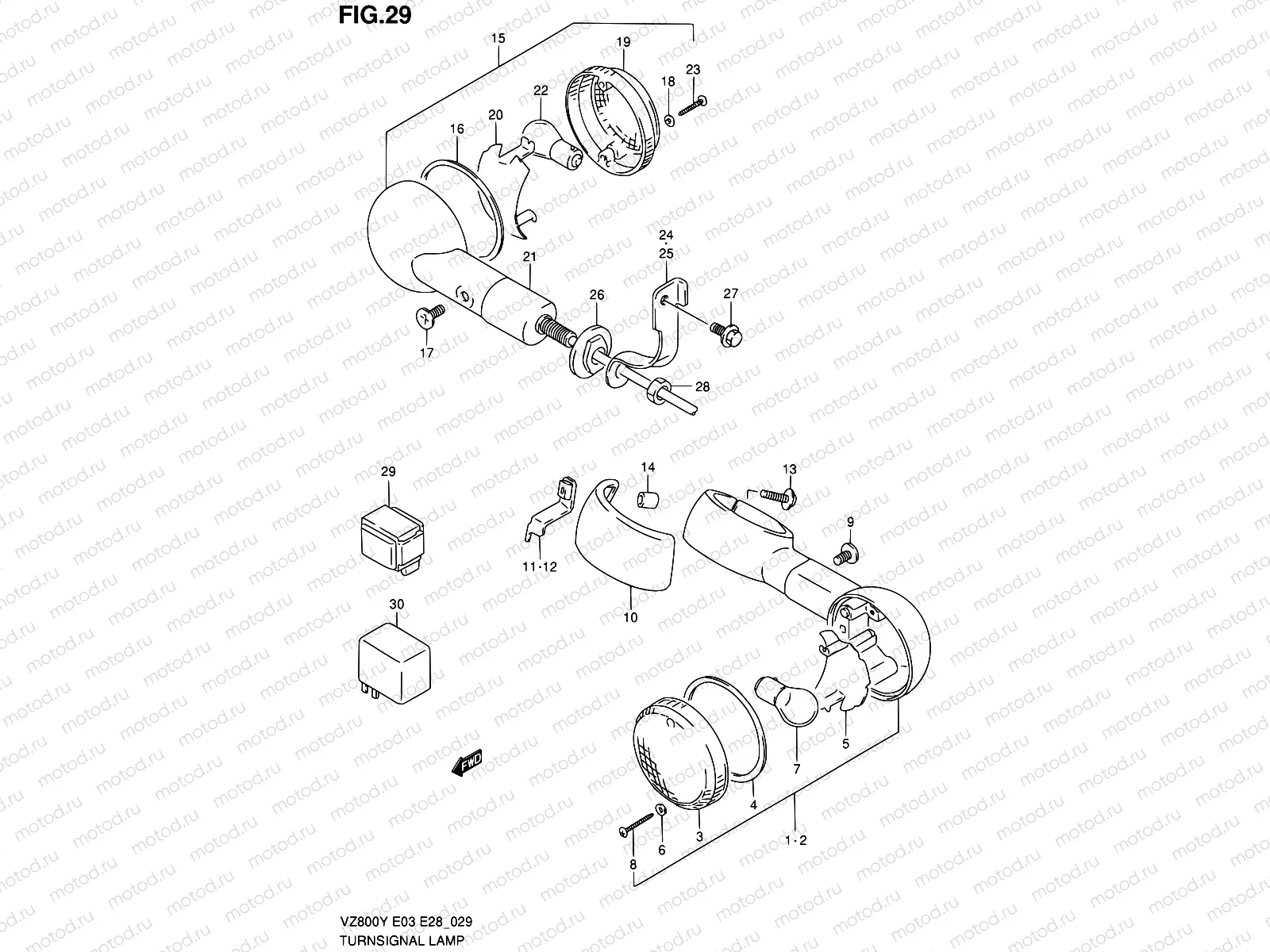

29 - TURN SIGNAL LAMP

29 - TURN SIGNAL LAMP

Например: 35601-48E00

1

35601-48E00

Lamp assy,front

2

35602-48E00

Lamp assy,front

3

35612-38A30

Линза

1 658 ₽/шт

4

35613-38A00

Прокладка

239 ₽/шт

5

35624-38A20

Катафот

1 329 ₽/шт

6

35627-43010

GASKET

179 ₽/шт

7

40503-00838-069

P21/5w,5w, bay1 (12V 21/5W BAY15d)

8

03211-0425B

Болт

82 ₽/шт

9

35623-38A01

SCREW

352 ₽/шт

10

35645-48E00

COVER,FR TURNSIGNAL STAY

1 771 ₽/шт

11

35671-48E10

BRACKET,FR TURNSIGNAL,R

411 ₽/шт

12

35681-48E10

BRACKET,FR TURNSIGNAL,L

411 ₽/шт

13

09136-06126

Болт

1 520 ₽/шт

14

09180-06121

SPACER(6.4X9.2X12)

1 330 ₽/шт

15

35603-33D30

Поворотник задний, правый

10 401 ₽/шт

16

35613-38A00

Прокладка

239 ₽/шт

17

35623-38A01

SCREW

352 ₽/шт

18

35627-43010

GASKET

179 ₽/шт

19

35652-38A21

Линза

782 ₽/шт

20

35654-38A20

Катафот

1 329 ₽/шт

21

35659-45C10

STAY,TURNSIGNAL RR

3 108 ₽/шт

22

40503-00838-120

Bulb (12V 21W BA15s)

23

03211-0425B

Болт

82 ₽/шт

24

35608-48E01

Reinf,rear turn

25

35609-48E01

Reinf,rear turn

26

35695-17C00

ШАЙБА

204 ₽/шт

27

01550-0612B

БОЛТ

81 ₽/шт

28

08310-0010B

Гайка

85 ₽/шт

29

38610-26E01

Relay Assy

3 910 ₽/шт

30

38610-03F01

Relay Assy,turnsignal Lamp

6 120 ₽/шт
