Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 400 Burgman SUZUKI AN400A L4 Burgman 400 (E02) SUZUKI 29 - TRANSMISSION (2)

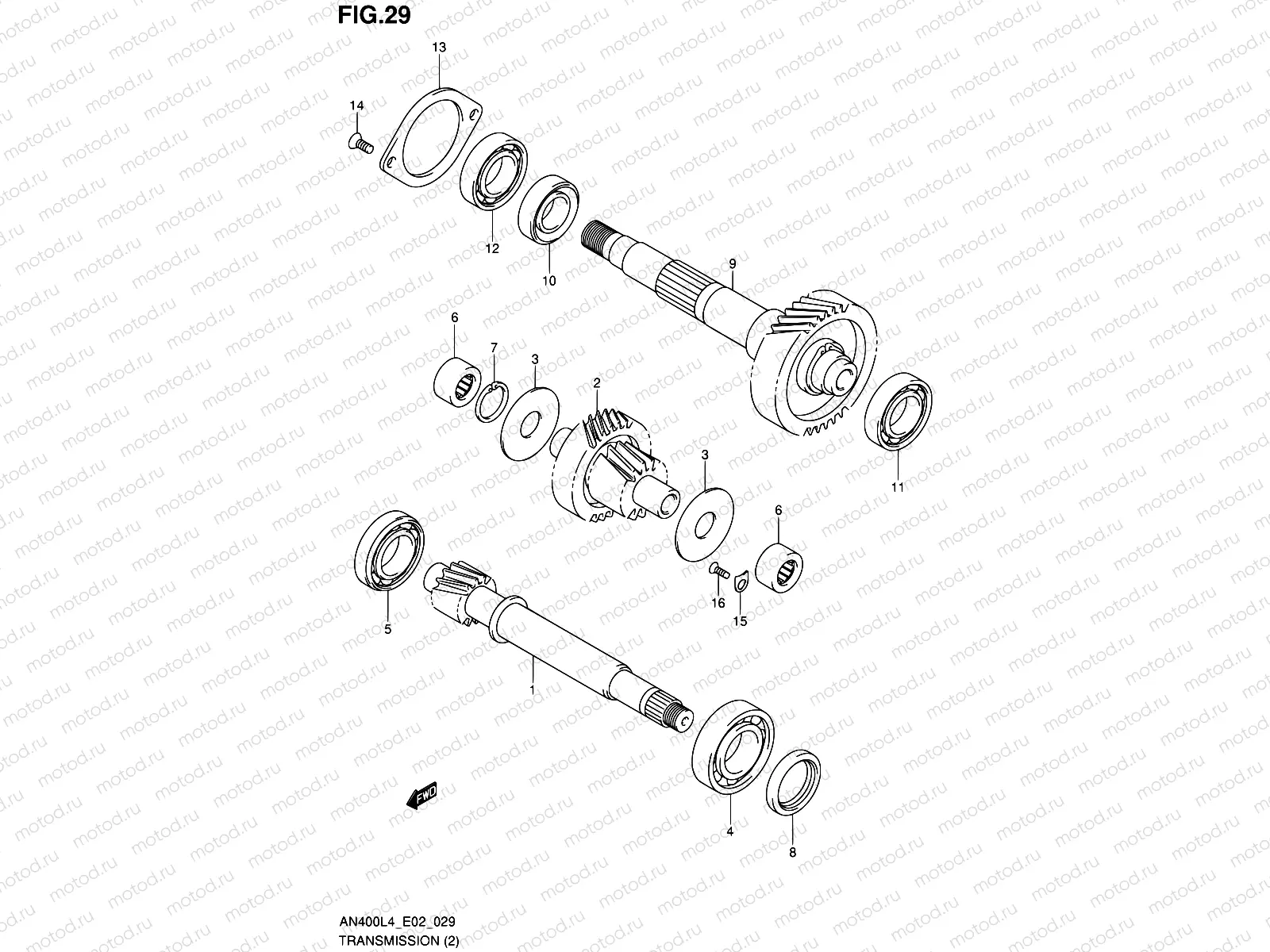

29 - TRANSMISSION (2)

29 - TRANSMISSION (2)
Например: 24131-05H00
1
24131-05H00
Вал ведущий
8 758 ₽/шт
2
24150-05H10
SHAFT,IDLE
10 831 ₽/шт
3
09160-20077
WASHER(20X50X2)
6 180 ₽/шт
4
08113-52050
BEARING
5 044 ₽/шт
5
09262-20073
ПОДШИПНИК КАЧЕНИЯ
1 308 ₽/шт
6
09263-20062
BEARING(20X34X18)
2 020 ₽/шт
7
08331-41349
CIRCLIP
1 370 ₽/шт
8
09283-25097
SEAL,OIL(25X37X6)
748 ₽/шт
9
24140-06H10
SHAFT,RR AXLE
17 791 ₽/шт
10
09283-38019
SEAL,OIL(38X52X7)
889 ₽/шт
11
09262-25084
Подшипник
2 020 ₽/шт
12
08130-6306B
earing
3 949 ₽/шт
13
24751-14F10
RETAINER,AXLE SHAFT BEARING
1 134 ₽/шт
14
02122-0616B
Болт
85 ₽/шт
15
24742-44B00
RETAINER
254 ₽/шт
16
02122-0616B
Болт
85 ₽/шт
