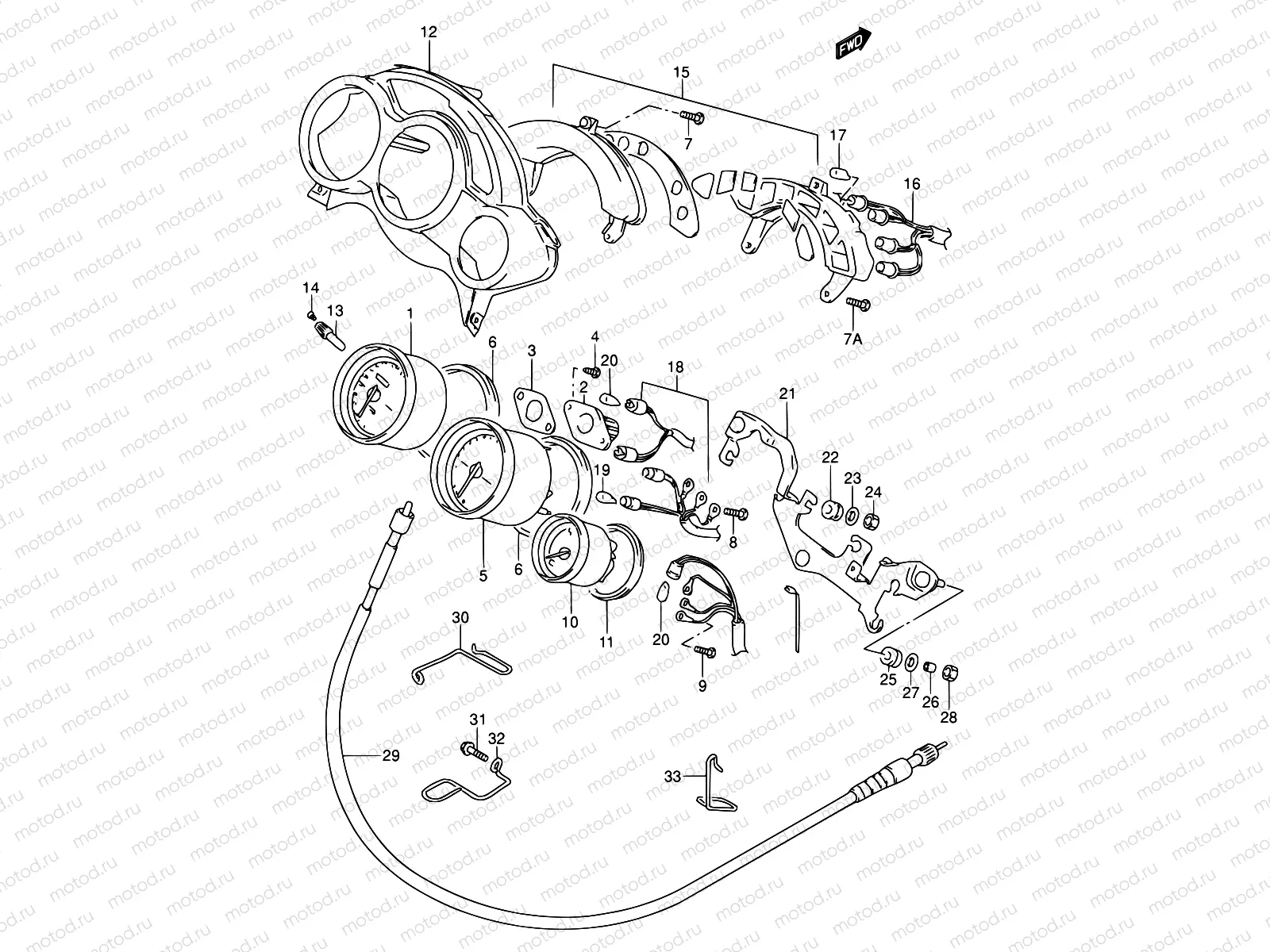

29 - SPEEDOMETER (MODEL P/R)

29 - SPEEDOMETER (MODEL P/R)
Например: 34120-21E20
1
34120-21E20
Speedometer e2
1
34120-21E10
Speedometer (kilo)
2
34131-48B10
ox,meter gear
3
34132-17C00
Gasket
4
02112-7410B
SCREW
1 330 ₽/шт
5
34210-21E10
Tachometer
6
34191-21E10
CUSHION,METER
962 ₽/шт
7
34184-12B00
SCREW
125 ₽/шт
7
03511-0416A
Болт
900 ₽/шт
8
34149-19D00
Screw
9
34383-09400
SCREW(3X22)
172 ₽/шт
10
34420-21E20
Meter,water tmp
11
34191-21E20
Damper
12
34190-21E10
Hood,meter
13
34124-21E10
Рукоятка
540 ₽/шт
14
09139-02003
Болт
940 ₽/шт
15
36380-21E20
Box assy, pilot
15
36380-21E11
Box assy,pilot
16
36394-21E11
Cord assy,bulb
17
09471-12028
Лампочка
210 ₽/шт
18
34170-21E11
Cord assy
19
09471-12108
ЛАМПА НАКАЛИВАНИЯ
226 ₽/шт
20
09471-12108
ЛАМПА НАКАЛИВАНИЯ
226 ₽/шт
21
34950-21E12
Bracket,meter
22
34189-21E10
Cushion
23
09160-04022
Шайба
1 020 ₽/шт
24
08310-00047
Гайка
81 ₽/шт
25
09320-08501
САЙЛЕНТБЛОК
1 880 ₽/шт
26
09180-06248
Кольцо/шайба
179 ₽/шт
27
09160-06084
Шайба 6.5X18X1
81 ₽/шт
28
08319-31067
Гайка
153 ₽/шт
29
34910-47D22
Cable Assy,speedometer
7 468 ₽/шт
30
34938-21E0V
GUIDE,SPEEDOMETER CABLE NO.1
594 ₽/шт
31
01550-06207
БОЛТ
85 ₽/шт
32
34938-21E11
Guide, meter no.2
33
34938-21E2V
GUIDE,SPEEDOMETER CABLE NO.3
653 ₽/шт
