Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI UX 50 Zillion SUZUKI UX50W Y Zillion SUZUKI (VIN: VTTAT611) 29 - FRONT LEG SHIELD

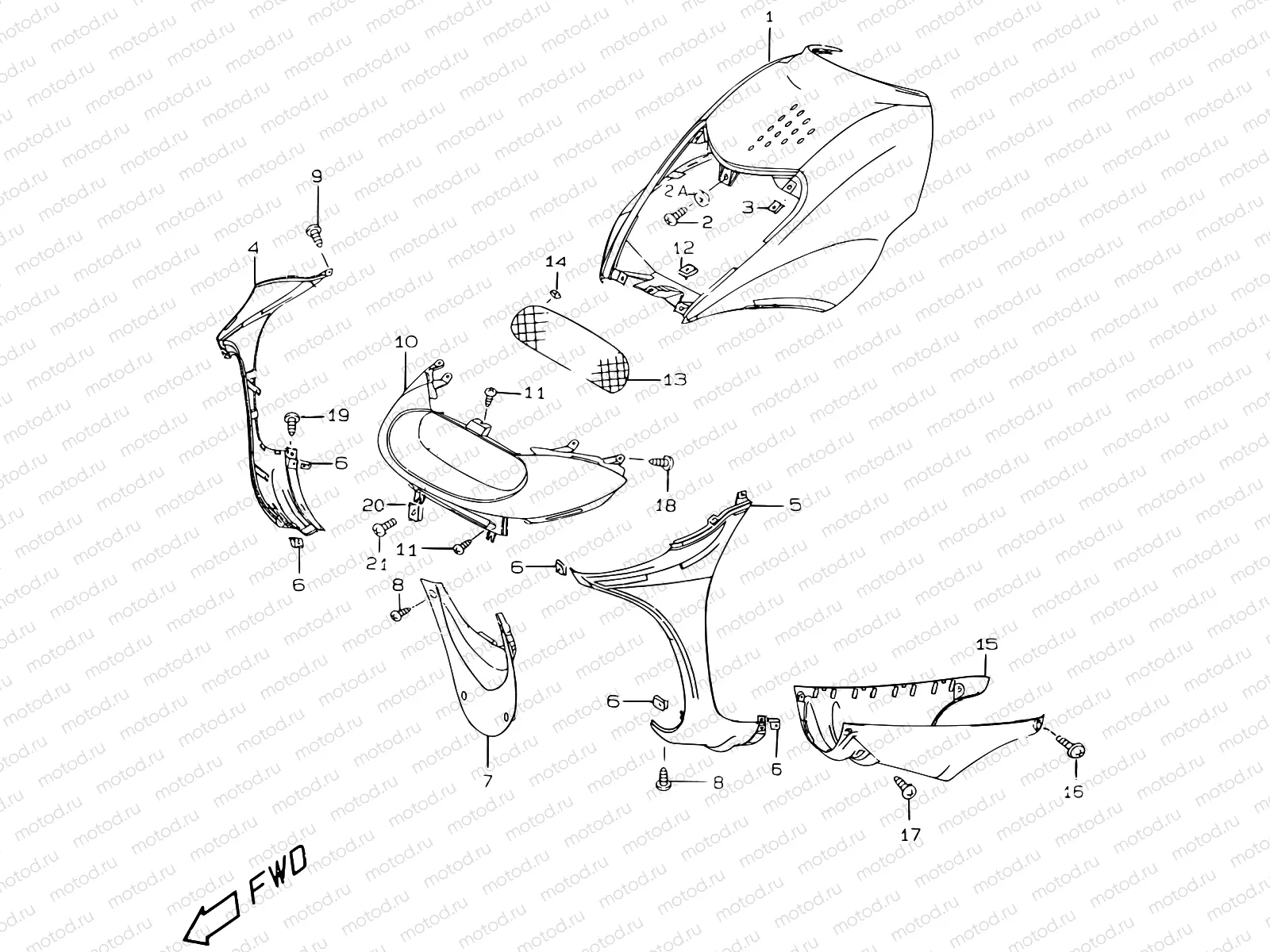

29 - FRONT LEG SHIELD

29 - FRONT LEG SHIELD

Например: 48111-22F00-Y0W

1

48111-22F00-Y0W

Shield, leg front (red)

1

48111-22F00-Y7L

Shield, leg front (black)

1

48111-22F00-Y7E

Shield, leg front (blue)

1

48111-22F00-Y9G

Shield, leg front (grey)

1

48111-22F00-Y2D

Shield, leg front (grey)

2

02112-0616A

Болт

81 ₽/шт

2

09689-06055

Rondelle

3

D91FK-48212

Clip nuts

4

48137-22F00-NE2

SHIEL LOWER UX50W RAW

5

48139-22F00-Y0W

Shield,leg side

5

48139-22F00-Y7L

Shield,leg side

5

48139-22F00-Y7E

Shield,leg side

5

48139-22F00-Y9G

Shield,leg side

5

48139-22F00-YD8

Cover, side lh

6

D91FK-48212

Clip nuts

7

48138-22F00-Y0W

Shield,centre

7

48138-22F00-Y7L

Shield,centre

7

48138-22F00-Y7E

Shield,centre

7

48138-22F00-Y9G

Shield,centre

7

48138-22F00-Y2D

Shield, leg front center (grey

8

03111-0512A

Болт

85 ₽/шт

9

03111-0516A

Болт

85 ₽/шт

10

48112-22F00-28C

Grill, front

11

03141-0516A

Болт

85 ₽/шт

12

D91FK-48212

Clip nuts

13

48119-22F00-EE3

NEF

14

09148-08005

Гайка

1 880 ₽/шт

15

48141-22F00-Y0W

Shield,leg lowe

15

48141-22F00-Y7L

Shield,leg lowe

15

48141-22F00-Y7E

Shield,leg lowe

15

48141-22F00-Y9G

Shield,leg lowe

15

48141-22F00-YD8

Shield, low lh

16

03541-1516A

Болт

1 210 ₽/шт

17

03541-0516B

Болт

81 ₽/шт

18

03111-0412A

Болт

1 060 ₽/шт

19

03111-0512A

Болт

85 ₽/шт

20

D91FK-48212

Clip nuts

21

03541-0516B

Болт

81 ₽/шт
