Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI AE 50 Sepia SUZUKI AE50 L Sepia (E28) SUZUKI (VIN: CA1DA, CA1EA) 29 - FRAME COVER (MODEL L/M)

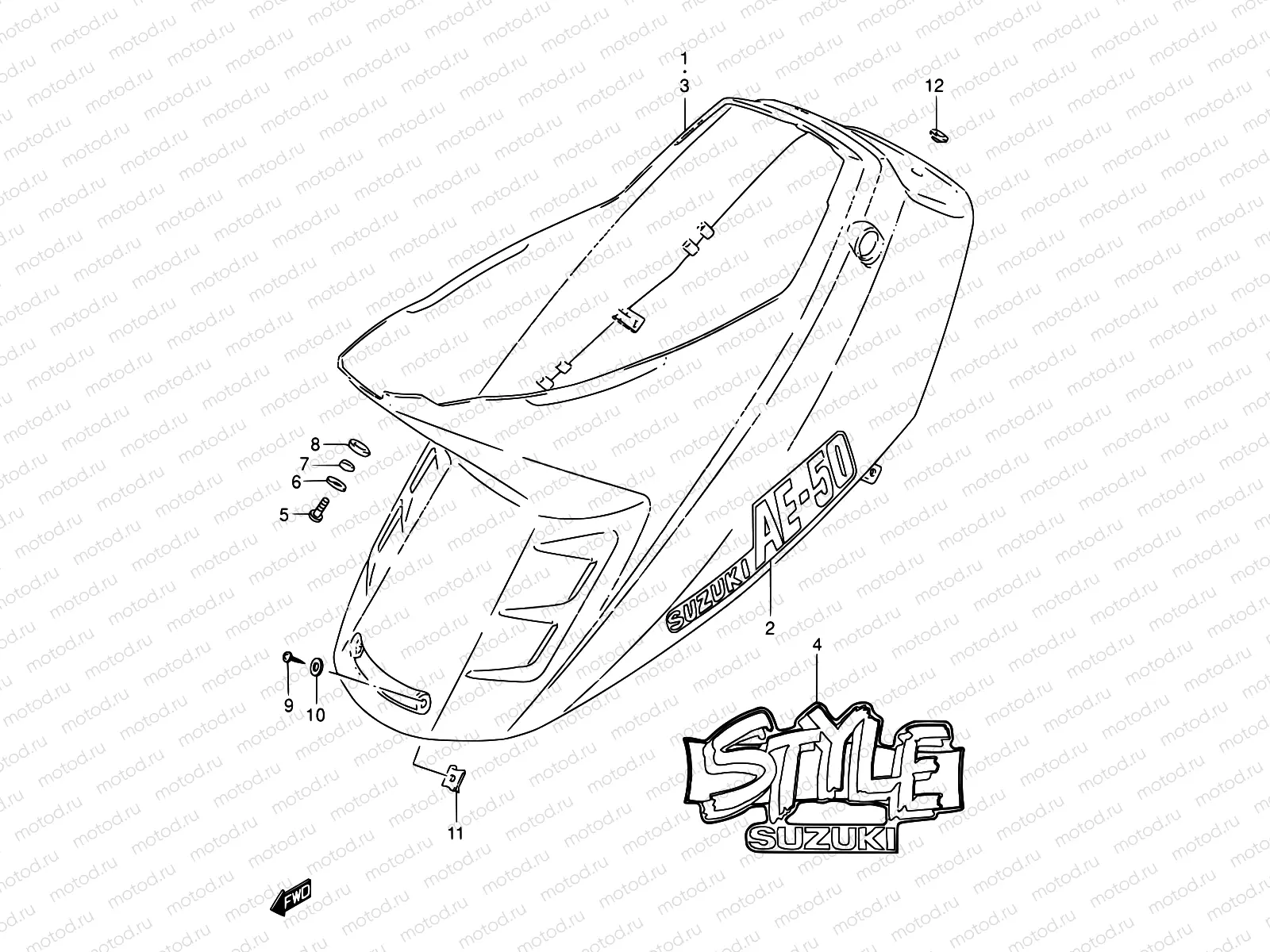

29 - FRAME COVER (MODEL L/M)

29 - FRAME COVER (MODEL L/M)

Например: 47310-36C60-10J

1

47310-36C60-10J

over, frame (purple)

1

47310-36C60-13Z

over, frame (black)

1

47310-36C60-22R

over, frame (white)

1

47310-36C60-33H

over, frame (blue)

1

47310-36C60-39J

over, frame (red)

2

68131-36C50-C36

.emblem, frame cover rh

2

68131-36C50-C37

.emblem, frame cover rh

2

68131-36C50-C38

.emblem, frame cover rh

2

68131-36C50-9CV

.emblem, frame cover rh

2

68131-36C50-C39

.emblem, frame cover rh

2

68141-36C50-C36

.emblem, frame cover lh

2

68141-36C50-C37

.emblem, frame cover lh

2

68141-36C50-C38

.emblem, frame cover lh

2

68141-36C50-9CV

.emblem, frame cover lh

2

68141-36C50-C39

.emblem, frame cover lh

3

47310-36C70-10J

over, frame (purple)

3

47310-36C70-13Z

over, frame (black)

3

47310-36C70-22R

over, frame (white)

3

47310-36C70-33H

over, frame (blue)

3

47310-36C70-39J

over, frame (red)

4

68131-36C60-C42

.emblem

5

02142-0616A

Болт

81 ₽/шт

6

09160-06052

Шайба

136 ₽/шт

7

09180-06306

SPACER(6.5X9X5)

1 250 ₽/шт

8

09320-10077

Cushion

1 720 ₽/шт

9

03241-0516A

Винт

81 ₽/шт

10

08322-0105B

Шайба

81 ₽/шт

11

09148-05020

Гайка

97 ₽/шт

12

09169-06071

Шайба

97 ₽/шт
