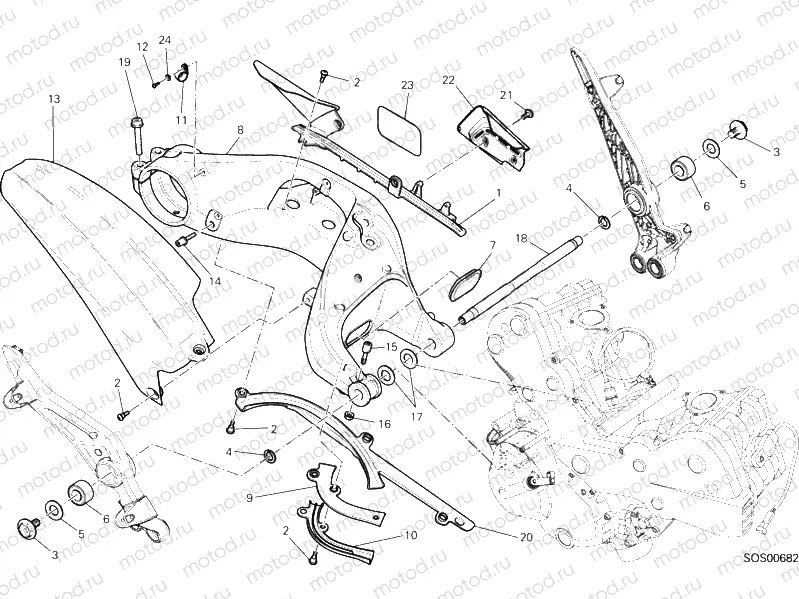

28A - FORCELLONE POSTERIORE (2) » UNCLASSIFIED

28A - FORCELLONE POSTERIORE (2) » UNCLASSIFIED
Например: 44610201A
1
44610201A
Guard chain sliding shoe
2
77214411BA
0 pc - Vis
3
77911511AA
Vis (spec)
4
88440071A
pc - . SPRING RING
5
85211571A
0 pc - Rondelle (12.2x25x1.5)
6
70011161A
SILENT-BLOCK Ø40X16 L=22 SH75 OLDR
7
87210601A
pc - .CAP, SWINGARM COVER
8
37010911B
SWING ARM
9
46015911A
GUARD, LOWER
10
46015921A
GUARD, UPPER
11
75840161A
.FAIRLEAD
12
77550221A
pc - Vis (M4x10)
13
56510601A
Garde-boue arrière
14
83210261B
.PIN
15
80810461A
Collier
16
74840341B
Nut (M8)
17
85210011B
. THRUST WASHER 20.5X36X1.8 MM
17
85210021B
. THRUST WASHER 20.5X36X0.2 MM
17
85210031B
Rondelle
18
36910081A
XLE, REAR SWING ARM
19
77210042B
Vis
20
44710771A
Guard chain sliding shoe (Lower)
21
69927191A
.KIT SCREW + SPACER
22
44610211A
CHAIN GUARD
23
43313811A
CHAIN ADJUSTMENT STICKER
23
43313821A
CHAIN ADJUSTMENT STICKER
24
85212511A
Rondelle (4.5x9x0.5)
